DrillFast® A2/304 Stainless DF3-SS Fibre Cement Sheeting Fasteners
Verified by manufacturer 2 months ago

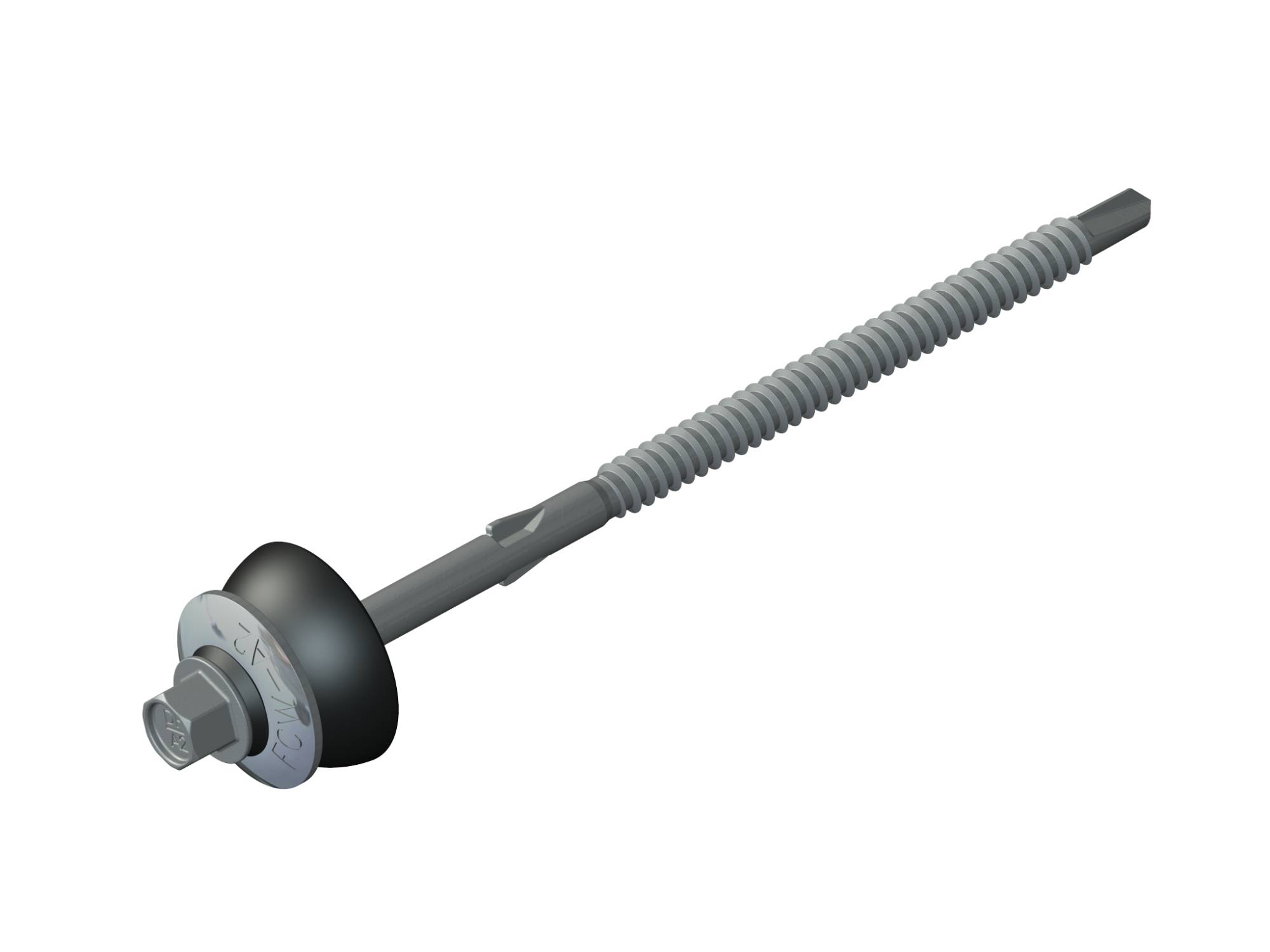

Stainless steel self-drilling fasteners for fibre cement sheeting
Application

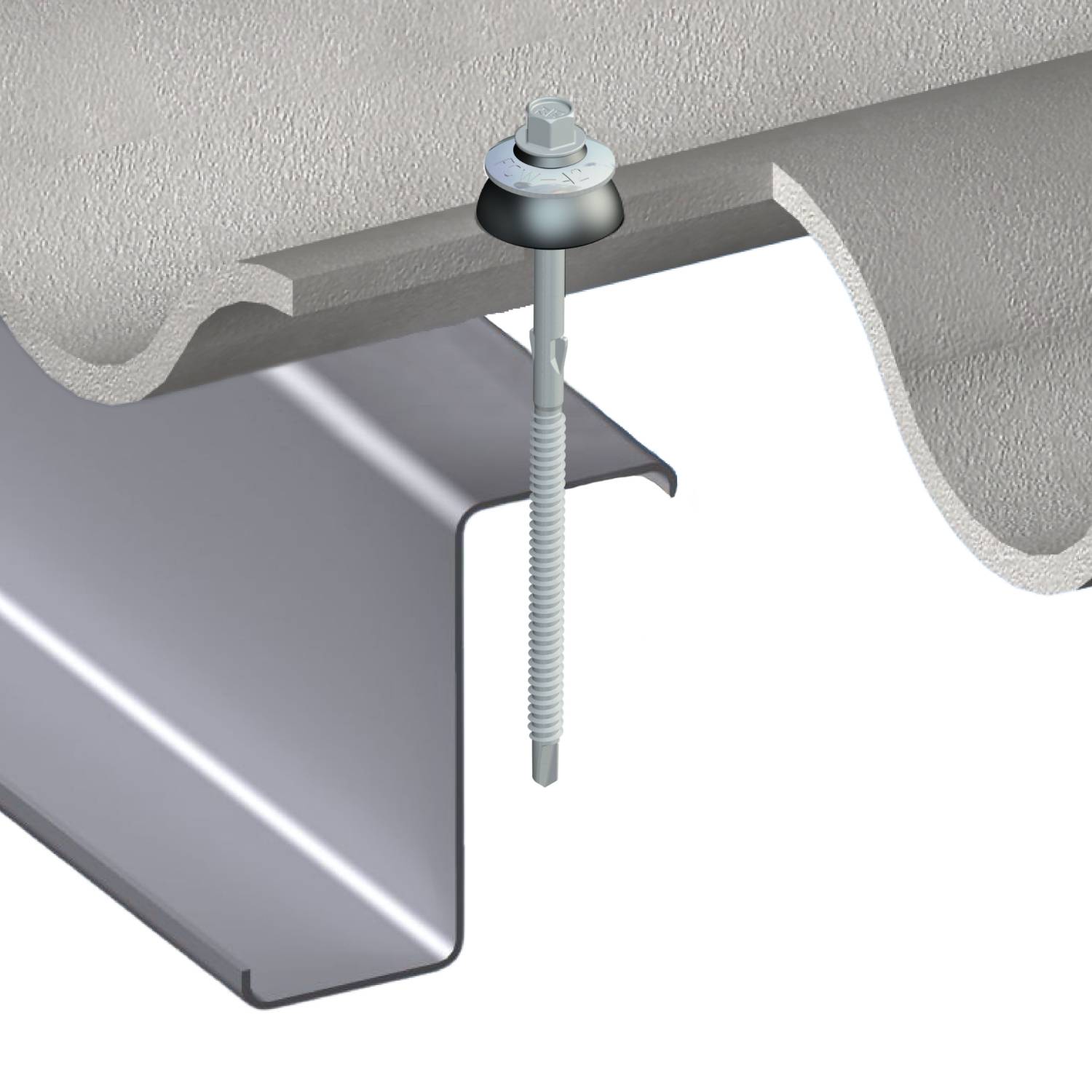

For mechanically fixing fibre cement sheeting to light metal purlins and rails.
Description
Stainless steel self-drilling fasteners for roofing and cladding.
Features and benefits:
- Warranted fasteners with £20 million UK insurance cover
- A2/ 304 stainless steel for optimum resistance to corrosion
- Excellent drilling and tapping performance
- Optimized thread design to prevent fastener unwinding
- Wings drill a clearance hole in sheeting to allow for movement
- Complete with FCW washer for excellent weather sealing
- Consistently high pull-out and shear performance
- Purpose designed and precision manufactured by Fixfast
General information
Finish | Coated |
Material | Stainless steel |
Length | 125 mm |
Width | 6.3 mm |
Warranty description | 30 year Guidance for specification option: Up to 40 years, consult manufacturer for details. |
Uniclass | |
CAWS | H92/120 Rainscreen cladding H20/150 Sheet cladding (attached to metal support systems) H20/10 Sheet cladding |
Product range |
Specification data - Self-drilling screws
Material | 1.4301 stainless steel (304M) with carbon steel case hardened welded point. |
Finish | Organic coating. |
Head type | Hexagon 8 mm. |
Size | |
Diameter | 6.3 mm. |
Length | 125 mm. |
Washers | FCW washer. |
Drilling capacity | 1.2–3.0 mm Steel. |
Sustainability data
Material | Stainless steel |
Literature
DrillFast Stainless Fasteners
Sheeting and Cladding Overview
