DrillFast® A2/304 Stainless DF2-SS/ DF3-SS Halter Fasteners
Verified by manufacturer 1 month ago
DF2-SS-6.0 x 35
DF2-SS-6.0 x 35
European Technical Approval (ETA)
Certificate type

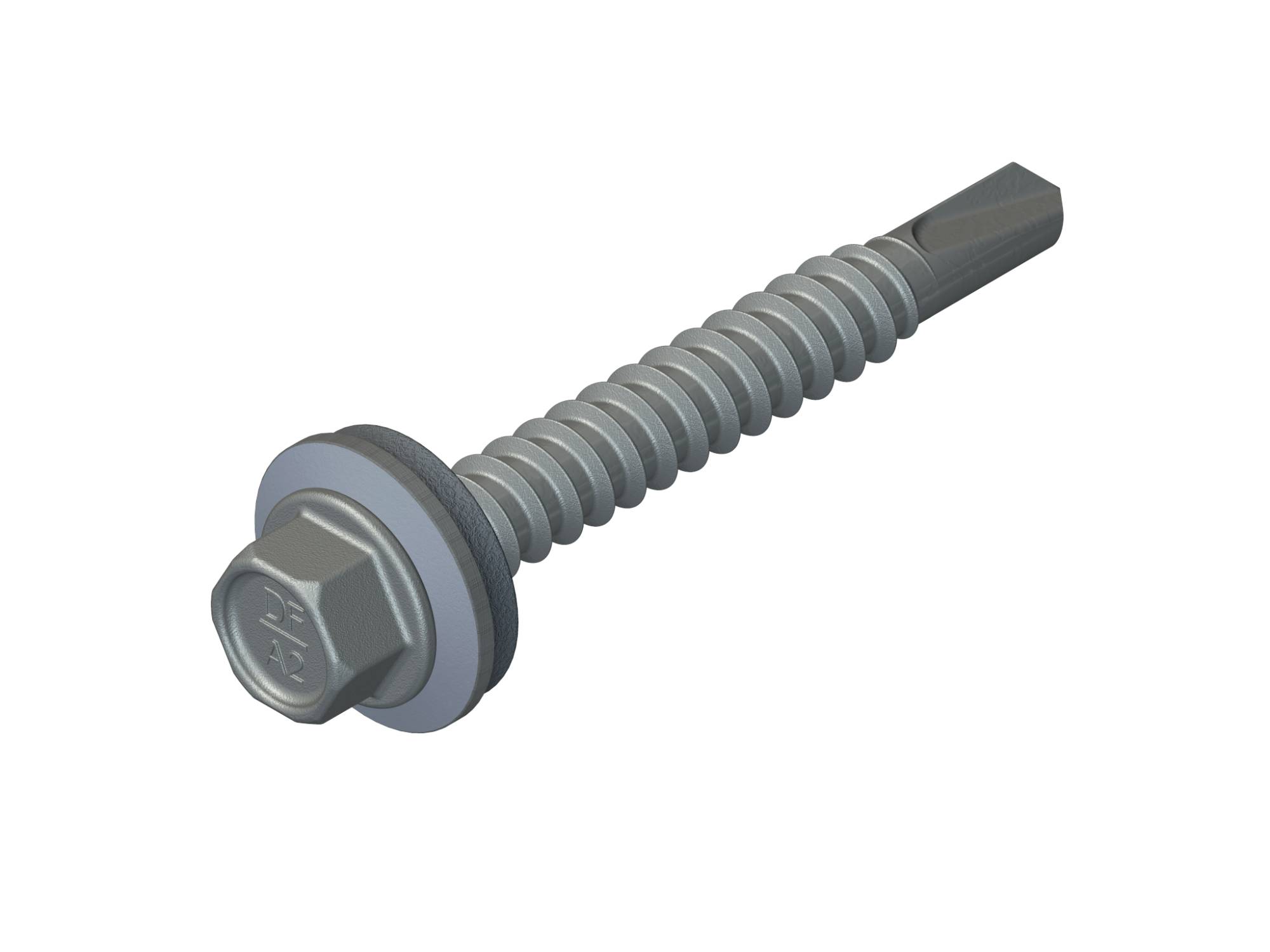

Stainless steel self-drilling fasteners for installing clips and halter brackets to steel or timber
Application
- For mechanically fixing clips and halters to steel and timber purlins and rails.
- DF2 – reduced drillpoint for fastening into thin steel and timber.
- DF3 for fastening into steel 1.2–3.0 mm thick.
Description
Stainless steel self-drilling fasteners for roofing and cladding.
Features and benefits:
- Warranted fasteners with £20 million UK insurance cover.
- A2/ 304 stainless steel for optimum resistance to corrosion.
- Bi-metal manufactured for superior drilling performance.
- Excellent pull-out and shear performance.
- Purpose designed and precision manufactured by Fixfast.
General information
Color | Silver |
Finish | Coated |
Material | Stainless steel |
Length | 35 mm 45 mm |
Width | 6.0 mm |
Warranty description | 30 year Guidance for specification option: Up to 40 years, consult manufacturer for details. |
Uniclass | |
CAWS | H31/120 Metal H31/10 Metal H31/219 Fasteners H92/120 Rainscreen cladding H67/110 Metal roof tiling H67/5 Metal roof tiling |
Product range |
Specification data - Self-drilling screws
Material | 1.4301 stainless steel (304M), with carbon steel case hardened welded point. |
Finish | Organic coating. |
Head type | Hexagon 8 mm. |
Size | |
Diameter | 6.0 mm. |
Length | 35 mm. |
Washers | Not required.Guidance for specification option: Build-ups DF2-SS-6.0 x 35: 0–15 mm. DF2-SS-6.0 x 45: 0–24 mm. DF3-SS-6.0 x 45: 0–20 mm. A15/ A19 washer.Guidance for specification option: Build-ups DF2-SS-6.0 x 35: 0–12 mm. DF2-SS-6.0 x 45: 0–21 mm. DF3-SS-6.0 x 45: 0–17 mm. |
Drilling capacity | 0.7–2.0 mm Steel. |
Sustainability data
Material | Stainless steel |
Third party certifications
European Technical Approval (ETA)
ETA: Certificate 20/1178
