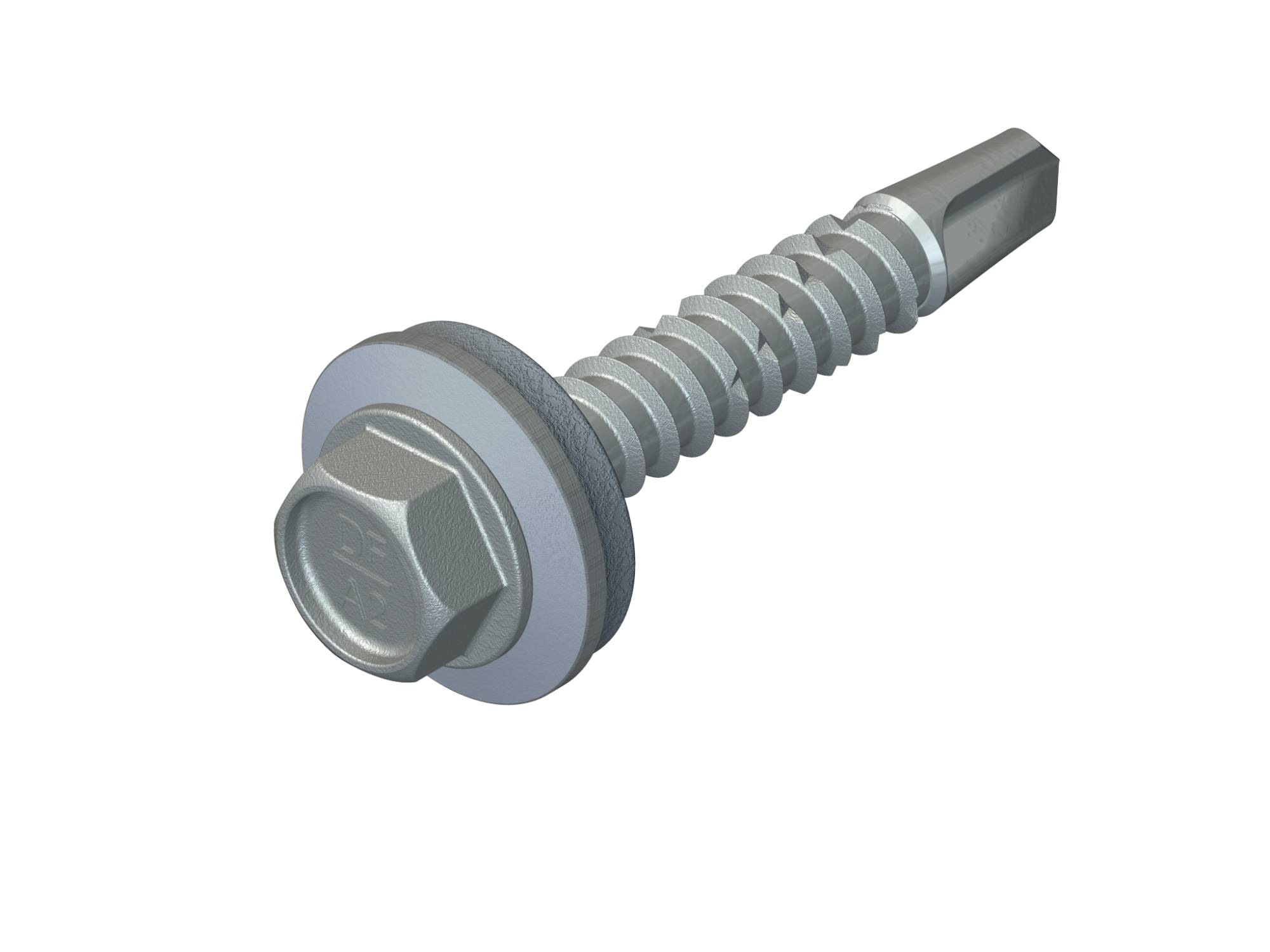

DrillFast® A2/304 Stainless DF6-SS Drilling Fasteners
Verified by manufacturer 6 months ago
European Technical Approval (ETA)
Certificate type
Stainless steel self-drilling fasteners for roofing and cladding.
Application
- For mechanically fixing metal sheeting systems up to 5 mm thickness metal purlins and rails.
- For mechanically fixing multiple components of steel, aluminium and metal framing systems where the combination is a maximum of 6 mm thickness.
Description
Stainless steel self-drilling fasteners for roofing and cladding.
Features and benefits:
- Warranted fasteners with £20 million UK insurance cover
- A2/ 304 stainless steel for optimum resistance to corrosion
- Bi-metal manufactured for superior drilling performance
- Excellent pull-out and shear performance
- Purpose designed and precision manufactured by Fixfast
- ETA approved and CE marked
General information
Color | Silver |
Finish | Coated |
Material | Stainless steel |
Length | 30 mm |
Width | 5.5 mm |
Warranty description | 30 year Guidance for specification option: Up to 40 years, consult manufacturer for details. |
Uniclass | |
CAWS | H31/219 Fasteners H31/120 Metal H31/10 Metal H92/120 Rainscreen cladding |
SKU Code | DF6-SS- |
Product range |
Specification data - Self-drilling screws
Standard | To BS EN ISO 1479. |
Material | 1.4301 stainless steel (304M), with carbon steel case hardened welded point. |
Finish | Organic coating. |
Head type | Hexagon 8 mm. |
Size | |
Diameter | 5.5 mm. |
Length | 30 mm. |
Washers | Not required. Guidance for specification option: 0–5 mm build up. A15/ A19 washer. Guidance for specification option: 0–2 mm build up. A29 washer. Guidance for specification option: 0–1 mm build up. |
Drilling capacity | 1.5–5.0 mm Steel. |
Sustainability data
Material | Stainless steel |
Product certifications
European Technical Approval (ETA)
ETA: Certificate 20/1178
Literature
DrillFast Stainless Fasteners
Sheeting and Cladding Overview
Case studies
The Shard
Fontwell Racecourse
