Cabine
Verified by manufacturer 6 months ago

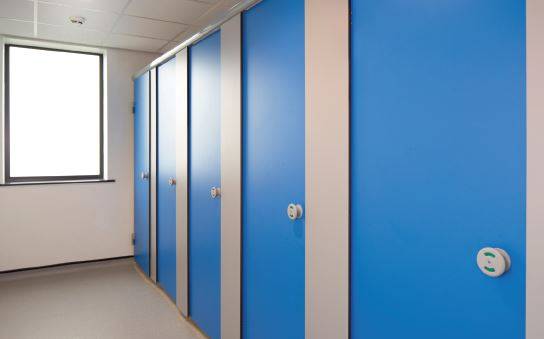

Unframed panel cubicle with solid grade laminate panels.
Application
- Educational establishments.
- Office developments.
- Shops, bars and restaurants.
- Not suitable for use in island or free-standing applications.
Description
Unframed panel cubicle with solid grade laminate panels.
Features and benefits:
- Rise and fall hinges.
- Pedestal adjustment of 40 mm.
- Overlap door and panel detail.
- Emergency release system.
- Anti-finger trap design.
- Adjustable door swing close/ open.
General information
Color | Silver |
Finish | Anodized Guidance for specification option: Aluminium. Manufacturer guidanceMoulded plastic also available. |
Material | Laminate Guidance for specification option: Solid Grade Laminate. Aluminium Plastic |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | K32/10 Panel cubicles K32/120 Panel cubicles |
Specification data - Panel cubicle systems
Panels | 10mm Solid Grade Laminate. |
Pilasters | 10mm Solid Grade Laminate. |
Doors | 10mm Solid Grade Laminate. |
Lippings | Polished and bull-nosed, with radiused corners. |
Hardware | PP-SGF, Rise and fall hinges, indicator, door buffers and emergency release.Guidance for specification option:
|
Curtains | Not required.Heavy duty antibacterial.Guidance for specification option: Available on request. Anti-mould.Guidance for specification option: Available on request. Commercial curtains.Guidance for specification option: Available on request. |
Samples required | Not required.Required. |
System accessories | Anti-peep rails.Emergency release mechanism.Manufacturer guidanceConsult manufacturer and insert requirements. |
Type | Cubicle. Changing. WC. Shower. |
Partition panels | 10 mm Solid Grade Laminate. Guidance for specification option: See manufacturer standard range and insert requirements. |
Headrail | Continuous aluminium extrusions, painted, RAL 7040. Guidance for specification option: With angle cleat wall fixing. |
Cubicle height (overall) | 2000 mm. Guidance for specification option: Including floor clearance of 140 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Manufacturer guidanceEurope mix. |
Country of product manufacture | United Kingdom |
Recyclability | Manufacturer guidanceLimited. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceSolid Grade Laminate. |
