Cabine Full Height

Name: Cabine Full Height
Brand: Prospec Ltd
SKU: j7M9nrE1QpmXYk4i7SwG4Z

Verified by manufacturer 27 days ago

Prospec Ltd

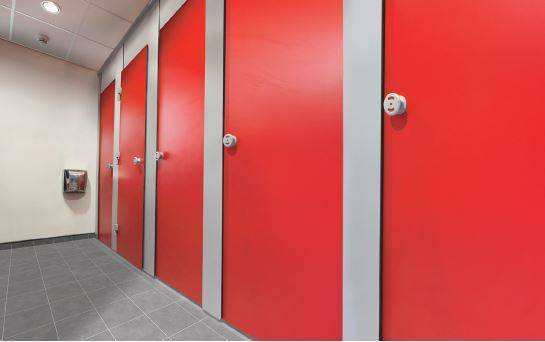

Floor-to-ceiling unframed panel cubicle with solid grade laminate panels.

Jump to:

+44 (0)1709 377147 Website

Application

Educational establishments.
Office developments.
Shops, bars and restaurants.
Not suitable for use in island or free-standing applications.

Description

Floor-to-ceiling unframed panel cubicle with solid grade laminate panels.

Features and benefits:

Rise and fall hinges.
Overlap door and panel detail.
Emergency release system.
Anti-finger trap design.
Adjustable door swing close/ open.
Retains higher levels of privacy due to the floor-to-ceiling height.
Suitable for unisex applications.

General information

Color	Silver
Finish	Anodized Guidance for specification option: Aluminium. Manufacturer guidance Moulded plastic also available.
Material	Laminate Guidance for specification option: Solid Grade Laminate. Aluminium Plastic
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	One year

Uniclass	Ss_25_12_60_60 Panel cubicle systemsPrimary
CAWS	K32/10 Panel cubicles K32/120 Panel cubicles

Specification data - Panel cubicle systems

Panels	10 mm Solid Grade Laminate.
Pilasters	10 mm Solid Grade Laminate.
Doors	10 mm Solid Grade Laminate.
Lippings	Polished and bull-nosed, with radiused corners.
Hardware	Rigid powder-coated aluminium 'U' and 'H' shaped floor and transom channel, PP-SGF design lock and hinge, Rise and fall hinges, indicator, door buffers and emergency release. Guidance for specification option: Short glass fibre reinforced polypropylene (PP-SGF) design lock and hinge. Lock has steel reinforced bar within the nylon moulding for added strength and comes with an emergency release mechanism. Latch has an ergonomic, DDA compliant design. Emergency release to the exterior.
Curtains	Heavy duty antibacterial. Anti-mould. Commercial curtains.
Samples required	Not required. Required.
System accessories	Emergency release mechanism. Manufacturer guidance Consult manufacturer and insert requirements.

Type	Cubicle. Changing. WC. Shower.
Partition panels	10 mm Solid Grade Laminate. Guidance for specification option: Fixed to the floor and the transom panel with a rigid, powder-coated aluminium 'U' and 'H' shaped channel, fixed directly to fascia panel using powder coated 'L' shaped brackets. See manufacturer standard range and insert requirements.
Headrail	Continuous aluminium extrusions, painted, RAL 7040.
Cubicle height (overall)	2700 mm (maximum). Guidance for specification option: Including floor clearance of 10–15 mm.

Sustainability data

Contains Red List materials	No
Country of material origin	- Manufacturer guidance Europe mix.
Country of product manufacture	United Kingdom
Recyclability	- Manufacturer guidance Limited.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	- Manufacturer guidance Solid Grade Laminate.
