Air - Glass

Verified by manufacturer 6 months ago

Prospec Ltd

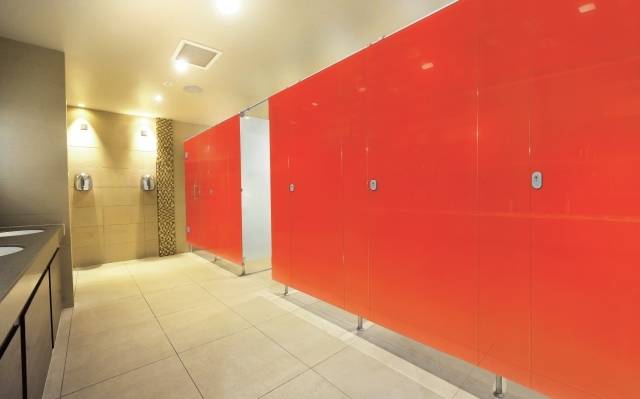

Highly engineered, flush fronted cubicle for shower, changing or toilets, manufactured from toughened and laminated glass with a rebated edge and floating appearance.

Jump to:
+44 (0)1709 377147 Website

Application

Suitable for showers, changing areas and toilets/ water closets.

Description

A flush fronted cubicle option for shower changing and toilet cubicles, using concealed fixings, highly engineered components and the latest glass technologies, Air is a stylish and contemporary cubicle system suitable for a wide range of applications in the sports, leisure and commercial sectors. The unique position of both the foot and headrail ensures that all that is seen is a floating wall of glass, with only the indicator escutcheon announcing the door opening.


Features and benefits:

  • Available in 16 standard glass colours, with non-standard colours are available on request.
  • Toughened and laminated low iron 'Opti-white' glass doors and pilasters (15.52 mm thick).
  • Low iron Opti-white glass, giving a true colour representation.
  • Patented concealed fixings design to doors and pilasters ensuring no visible fixings to front elevation.
  • Satin anodized aluminium leg and stabilizing bar are attached to the partition panel giving a floating appearance.
  • Engineered to disperse stress with emphasis on the method of attaching the friction fit components to the laminate, combined with high strength adhesives.
  • Satin anodized aluminium finished fittings suitable for use in wet areas including swimming pool environments.
  • Satin aluminium door latch with oval shaped indicator plate.

General information

Color

Silver

Finish

Satin

Guidance for specification option:

Satin Silver Anodized.

Anodized

Material

Glass

Aluminium

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Specification data - Panel cubicle systems

Panels

15.52 mm toughened and laminated low-iron 'Opti-White' glass.

10 mm toughened float glass.

10 mm toughened float low-iron 'Opti-White' glass.

10.76 mm toughened and laminated low-iron 'Opti-White' glass.

Pilasters

15.52 mm toughened and laminated low-iron "Opti-White" glass.

Doors

15.52 mm toughened and laminated low-iron "Opti-White" glass.

Lippings

All edges polished all round, exposed corners with small radius.

Hardware

Fittings, Head Rail, Legs and Ironmongery/ Accessories.

Guidance for specification option:

  • Fittings: Satin anodized aluminium hinge/ brackets bonded with structural resin and fixed into concealed rosettes for added strength, to doors and pilaster panels.
  • Head Rail: Satin anodized aluminium overhead stabilizing bars fixed into concealed rosettes to top edge of pilaster panels, and satin anodized connector to top edge of partition panels.
  • Legs: One attached to partition panel 180 mm inboard with through fixings from satin anodized aluminium and stainless steel, with mechanical connection to front pilaster with adjustable ground clearance. Fixed to floor with 316 grade stainless steel screw and plastic plug. Optional Bonded Leg: One attached to partition panel 180 mm inboard with through fixings from satin anodized aluminium and stainless steel, with mechanical connection to front pilaster with adjustable ground clearance. Fixed to floor with 316 grade stainless steel pin 10 mm long and high strength waterproof adhesive.
  • Ironmongery/ Accessories: Engineered satin anodized lock, fixed through door with concealed fixings with outside indicator and emergency release function. Lock finger engages into compatible lock receiver, fixed to pilaster panel. Available in choice of finishes to match extruded profiles. Satin anodized aluminium coat hooks with integral rubber buffer, through-fixed onto division panel for added strength and to perform as door buffer.

Curtains

Not required.

Heavy duty antibacterial, anti-mould, commercial curtains.

Guidance for specification option:

Available on request.

Samples required

Not required.

Required.

Guidance for specification option:

Available on request.

System accessories

Anti-peep rails.

Glass corner shelf.

Wet/ dry dividing fin.

Towel rail.

DDA handle.

Bench seating.

Knob and keep.

Hydraulic door closers.

Type

Cubicle.

Changing.

WC.

Shower.

End panels/ Pilasters

Ceramic etched effect, colour.

Opaque ceramic painted glass, colour.

Toughened and laminated glass, colour.

Manufacturer guidance

  • Ceramic paint solid colour or etch effect from a choice of 16 standard colours.
  • Non-standard colours available on request.
  • Consult manufacturer for details.

Partition panels

Ceramic etched effect, colour.

Opaque ceramic painted glass, colour.

Toughened and laminated glass, colour.

Manufacturer guidance

  • Ceramic paint solid colour or etch effect from a choice of 16 standard colours.
  • Non-standard colours available on request.
  • Consult manufacturer for details.

Doors

Ceramic etched effect, colour.

Opaque ceramic painted glass, colour.

Toughened and laminated glass, colour.

Manufacturer guidance

  • Ceramic paint solid colour or etch effect from a choice of 16 standard colours.
  • Non-standard colours available on request.
  • Consult manufacturer for details.

DDA/ Ambulant cubicle provision

Not required.

DDA compliant handle set with lever action turn.

Horizontal grab rails.

Two coat hooks to DDA compliant cubicles.

Vertical grab rails.

Duct system

Not required.

Trojan aluminium framed access panel system.

Guidance for specification option:

To be specified separately.

Cubicle height (overall)

2050 mm.

Guidance for specification option:

Measured from FFL including stabilizing bar.

Manufacturer guidance

Non-standard sizes available on request, consult manufacturer and insert requirement.

Outward opening doors

Door holder mechanism, door buffer fitted to adjacent wall.

Guidance for specification option:

Door holder mechanism included with doors opening out into a void.

Sustainability data

Contains Red List materials

No

Country of material origin

-

Manufacturer guidance

Europe mix.

Country of product manufacture

United Kingdom

Recyclability

Glass

Manufacturer guidance

Limited.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Aluminium fixings and hardware.
