Air - Solid Grade Laminate

Name: Air - Solid Grade Laminate
Brand: Prospec Ltd
SKU: eN3z5rwYYSfJ4dzP6djvwn

Verified by manufacturer 27 days ago

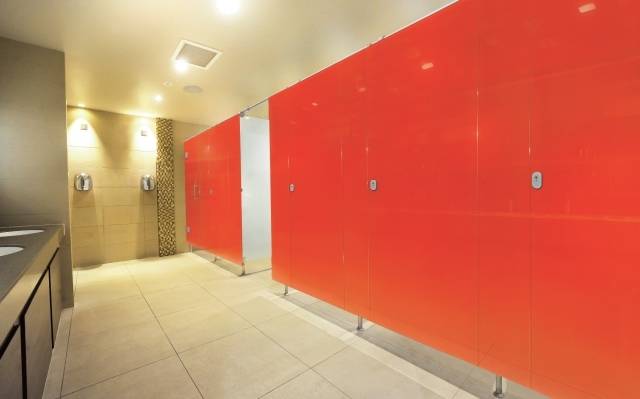

Highly engineered, flush fronted cubicle for shower, changing or toilets, manufactured from solid grade laminate with a rebated edge and floating appearance.

Jump to:

+44 (0)1709 377147 Website

Application

Suitable for showers, changing areas and toilets/ water closets.

Description

A flush fronted cubicle option for shower changing and toilet cubicles. Using concealed fixings and highly engineered components, Air is a stylish and contemporary cubicle system suitable for a wide range of applications in the sports, leisure and commercial sectors. The unique position of both the foot and headrail ensures that all that is seen is a floating wall of laminate, with only the indicator escutcheon announcing the door opening.

Features and benefits:

16 mm Solid Grade Laminate front and end wall. 12 mm Solid Grade Laminate partitions.
Patented concealed fixings design to doors and pilasters ensuring no visible fixings to front elevation.
Satin anodized aluminium leg and stabilizing bar are attached to the partition panel giving a floating appearance.
Engineered to disperse stress with emphasis on the method of attaching the friction fit components to the laminate, combined with high strength adhesives.
Satin anodized aluminium finished fittings suitable for use in wet areas, including swimming pool environments.
Satin aluminium door latch with oval shaped indicator plate.

General information

Color	Silver
Finish	Satin Guidance for specification option: Satin Silver Anodized. Anodized
Material	Laminate Guidance for specification option: Solid Grade Laminate. Aluminium
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	One year

Uniclass	Ss_25_12_60_60 Panel cubicle systemsPrimary
CAWS	K32/10 Panel cubicles K32/120 Panel cubicles

Specification data - Panel cubicle systems

Panels	16 mm Solid Grade Laminate. 12 mm Solid Grade Laminate.
Pilasters	12 mm Solid Grade Laminate.
Doors	12 mm Solid Grade Laminate.
Lippings	Bull nose edging with radius corners, polished all round.
Hardware	Fittings, Head Rail, Legs and Ironmongery/ Accessories. Guidance for specification option: Fittings: Satin anodized aluminium hinge/ brackets bonded with structural resin and fixed into concealed rosettes for added strength, to doors and pilaster panels. Head Rail: Satin anodized aluminium overhead stabilizing bars fixed into concealed rosettes to top edge of pilaster panels, and satin anodized connector to top edge of partition panels. Legs: One attached to partition panel 180 mm inboard with through fixings from satin anodized aluminium and stainless steel, with mechanical connection to front pilaster with adjustable ground clearance. Fixed to floor with 316 grade stainless steel screw and plastic plug. Optional Bonded Leg: One attached to partition panel 180 mm inboard with through fixings from satin anodized aluminium and stainless steel, with mechanical connection to front pilaster with adjustable ground clearance. Fixed to floor with 316 grade stainless steel pin 10 mm long and high strength waterproof adhesive. Ironmongery/ Accessories: Engineered satin anodized lock, fixed through door with concealed fixings with outside indicator and emergency release function. Lock finger engages into compatible lock receiver, fixed to pilaster panel. Available in choice of finishes to match extruded profiles. Satin anodized aluminium coat hooks with integral rubber buffer, through-fixed onto division panel for added strength and to perform as door buffer.
Curtains	Not required. Heavy duty antibacterial, anti-mould, commercial curtains. Guidance for specification option: Available on request.
Samples required	Not required. Required.
System accessories	Anti-peep rails. Wet/ dry dividing fin. Towel rail. DDA handle. Bench seating. Knob and keep. Hydraulic door closers.

Type	Cubicle. Changing. WC. Shower.
End panels/ Pilasters	16 mm Solid Grade Laminate.
Partition panels	12 mm Solid Grade Laminate. Guidance for specification option: Consult manufacturer laminate colour range and insert requirement.
Doors	16 mm Solid Grade Laminate. Guidance for specification option: Consult manufacturer laminate colour range and insert requirement.
DDA/ Ambulant cubicle provision	Not required. DDA compliant handle set with lever action turn. Horizontal grab rails. Two coat hooks to DDA compliant cubicles. Vertical grab rails.
Duct system	Not required. Trojan aluminium framed access panel system. Guidance for specification option: To be specified separately.
Cubicle height (overall)	2050 mm. Guidance for specification option: Measured from FFL including stabilizing bar. Manufacturer guidance Non-standard sizes available on request, consult manufacturer and insert requirement.
Outward opening doors	Door holder mechanism, door buffer fitted to adjacent wall. Guidance for specification option: Door holder mechanism included with doors opening out into a void.

Sustainability data

Contains Red List materials	No
Country of material origin	- Manufacturer guidance Europe mix.
Country of product manufacture	United Kingdom
Recyclability	Laminate Manufacturer guidance Limited.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	- Manufacturer guidance Aluminium fixings and hardware.
