Cabrillant 600 and 700 Cubicles - Glass

Name: Cabrillant 600 and 700 Cubicles - Glass
Brand: Prospec Ltd
SKU: bUptk9EhcdfWHEnAXFYXXr

Verified by manufacturer 6 months ago

Prospec Ltd

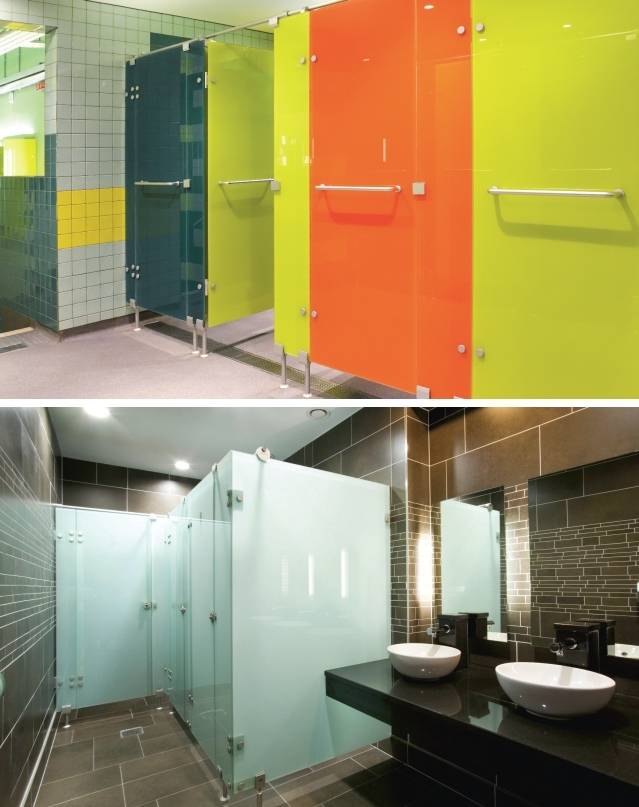

Highly engineered frameless cubicle in glass for use in wet or dry areas.

Jump to:

BOS

+44 (0)1709 377147 Website

Application

Suitable for showers, changing areas and WCs.

Description

Cubicle systems designed for use as shower, changing and toilet cubicles in wet or dry areas. Constructed from glass. The surface is easy to clean and withstands wet use. The aluminium fittings and components have been specifically engineered to overcome the weakness normally encountered in patch fitting systems.

Cubicles are available with or without doors, or optionally with coloured heavy-duty curtains. When installed as dividers without doors, shower cubicles are fixed with a small front pilaster panel and a continuous head rail to maintain stability and safety.

General information

Color	Silver
Finish	Satin Guidance for specification option: Satin Silver Anodized. Anodized
Material	Glass Aluminium
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	One year

Uniclass	Ss_25_12_60_60 Panel cubicle systemsPrimary
CAWS	K32/10 Panel cubicles K32/120 Panel cubicles

Specification data - Panel cubicle systems

Panels	10 mm toughened float glass, ceramic paint finish. 10 mm toughened opaque low-iron 'Opti-White' glass. 10.76 mm toughened and laminated float glass, colour opaque to one internal surface of one leaf, ceramic paint finish with 0.76 mm EVA interlayer. 10.76 mm toughened and laminated float glass, translucent (etch effect) or white opaque 0.76 mm EVA interlayer.
Pilasters	10 mm toughened float glass, ceramic paint finish. 10 mm toughened opaque low-iron 'Opti-White' glass. 10.76 mm toughened and laminated float glass, colour opaque to one internal surface of one leaf, ceramic paint finish with 0.76 mm EVA interlayer. 10.76 mm toughened and laminated float glass, translucent (etch effect) or white opaque 0.76 mm EVA interlayer.
Doors	10 mm toughened float glass, ceramic paint finish. 10 mm toughened opaque low-iron 'Opti-White' glass. 10.76 mm toughened and laminated float glass, colour opaque to one internal surface of one leaf, ceramic paint finish with 0.76 mm EVA interlayer. 10.76 mm toughened and laminated float glass, translucent (etch effect) or white opaque 0.76 mm EVA interlayer.
Lippings	All edges polished all round, exposed corners with small radius.
Hardware	Fittings, Head Rail, Legs and Ironmongery/ Accessories. Guidance for specification option: Fittings: Satin anodized aluminium hinge/ brackets bonded with structural resin and fixed into concealed rosettes for added strength, to doors and pilaster panels. Head Rail: Satin anodized aluminium overhead stabilizing bars fixed into concealed rosettes to top edge of pilaster panels, and satin anodized connector to top edge of partition panels. Legs: One attached to partition panel 180 mm inboard with through fixings from satin anodized aluminium and stainless steel, with mechanical connection to front pilaster with adjustable ground clearance. Fixed to floor with 316 grade stainless steel screw and plastic plug. Optional Bonded Leg: One attached to partition panel 180 mm inboard with through fixings from satin anodized aluminium and stainless steel, with mechanical connection to front pilaster with adjustable ground clearance. Fixed to floor with 316 grade stainless steel pin 10 mm long and high strength waterproof adhesive. Ironmongery/ Accessories: Engineered satin anodized lock, fixed through door with concealed fixings with outside indicator and emergency release function. Lock finger engages into compatible lock receiver, fixed to pilaster panel. Available in choice of finishes to match extruded profiles. Satin anodized aluminium coat hooks with integral rubber buffer, through-fixed onto division panel for added strength and to perform as door buffer.
Curtains	Not required. Heavy duty antibacterial. Guidance for specification option: Available on request. Anti-mould. Guidance for specification option: Available on request. Commercial curtains. Guidance for specification option: Available on request.
Samples required	Not required. Required. Guidance for specification option: Available on request.
System accessories	Anti-peep rails. Glass corner shelf. Wet/ dry dividing fin. Towel rail. DDA handle. Bench seating. Knob and keep. Hydraulic door closers. Aluminium coat hook. Door restraint.

Type	Heavy duty antibacterial. Guidance for specification option: Available on request. Anti-mould. Commercial curtains.
Colour/ Finish	Not required. Guidance for specification option: If cubicle fronts only. Opaque Ceramic Painted Glass, colour. Guidance for specification option: Consult manufacturer and insert colour requirements. Translucent Ceramic Etched Glass. Translucent Glass. Toughened and Laminated Glass. Manufacturer guidance The opaque ceramic paint finish is available in 16 standard RAL colours. Other colours are available on request. Samples of chosen colours can be provided as the 10 mm thickness adds a green tint to the exterior view.
Configuration	Not applicable. Guidance for specification option: For curtains, or if no door is required. Inward. Outward.
Seats	Not required. 12 mm Solid Grade Laminate Bench Seats.
Duct system	Not required. Trojan Duct Panel System (Aluminium Framed). Guidance for specification option: To be specified separately.
Cubicle height (overall)	2050 mm. Guidance for specification option: Non-standard sizes available on request, consult manufacturer and insert requirement.
Floor Clearance	- Manufacturer guidance Non-standard sizes available on request, consult manufacturer and insert requirement.

Sustainability data

Contains Red List materials	No
Country of material origin	- Manufacturer guidance Europe mix.
Country of product manufacture	United Kingdom
Recyclability	Glass, Aluminium Manufacturer guidance High.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	- Manufacturer guidance Glass, Aluminium.

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
IFC	-	1
Revit	-	1
