Breeze - Panel Cubicle System
Verified by manufacturer 27 days ago

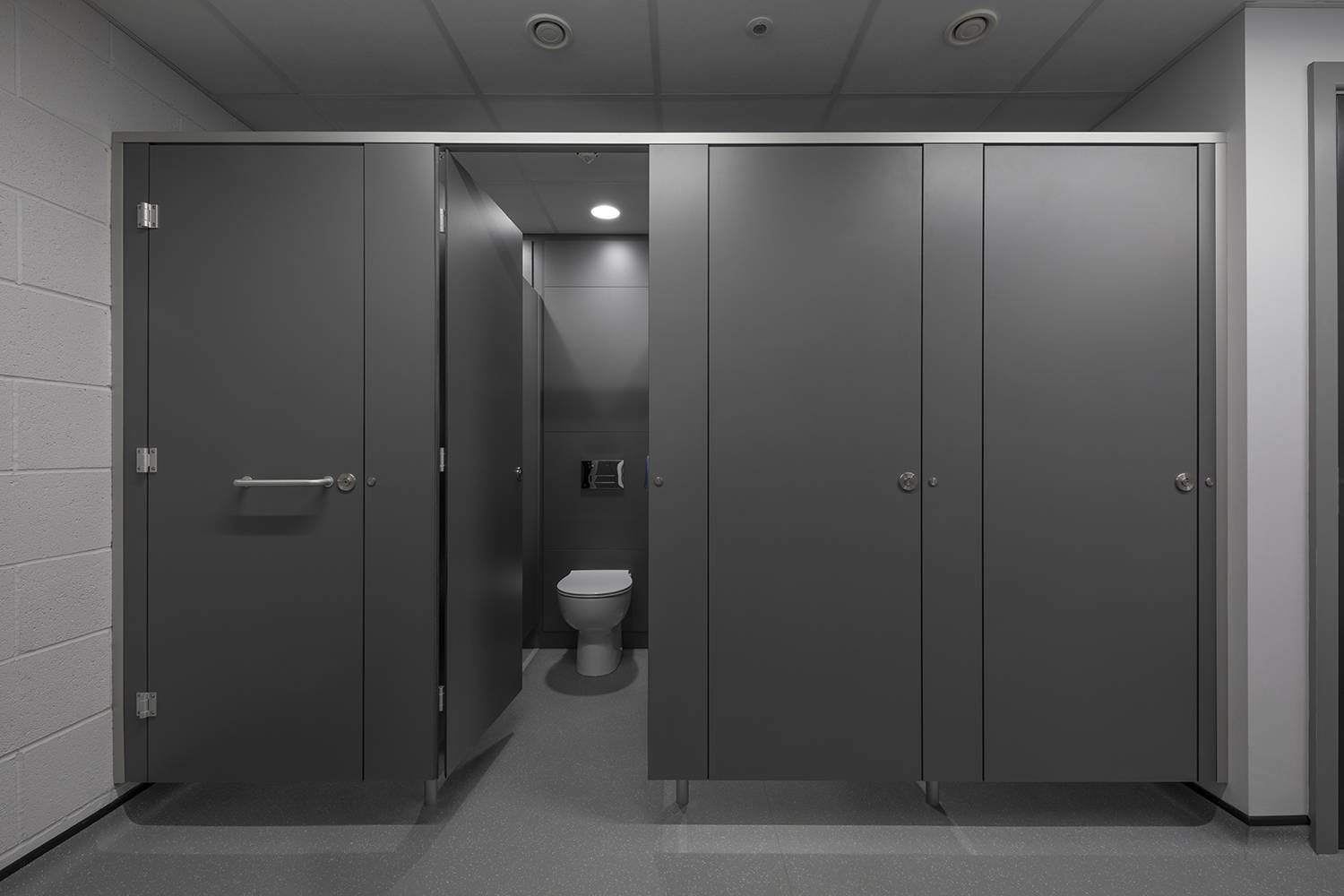

A flush fronted panel cubicle system with a rebated edge.
Application
Leisure, schools, offices and general commercial applications that do not experience a high volume of use.
Not suitable for use in island or 'free standing' applications.
Description
A flush-fronted panel cubicle system with solid-grade laminate panels and a rebated edge.
Features and benefits:
- Flush finish panel cubicle created with 12 mm solid grade laminate polished on all edges and machined along both long lengths to create a rebate.
- No visual hardware to the external face other than the indicator plate.
- Satin stainless steel spring-loaded hinges with covers to conceal fixings.
- Satin stainless steel lock with circular face plate and integral emergency release function.
- Support legs fixed to the partition panel give a floating appearance.
- Fully extruded aluminium wall channel to each division panel.
- Fully extruded aluminium headrail, with no visible fixings for added strength.
General information
Color | Silver |
Finish | Anodized |
Material | Solid grade laminate (SGL) Laminate Stainless steel Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | K32/120 Panel cubicles K32/10 Panel cubicles |
Specification data - Panel cubicle systems
Panels | 12.7 mm Solid Grade Laminate.Manufacturer guidanceSolid Grade Laminate panels from the Fundermax Washroom Collection range. Note: Partition panels are provided in one piece as standard. Where partition panels need splitting due to room/ building access there will be an uplift in cost. If required, panels are split horizontally and joined with an anodized aluminium 'H' section. |
Panel supports | Anodized aluminium cubicle legs/ partition supports. |
Pilasters | 12.7 mm Solid Grade Laminate. |
Doors | 12.7 mm Solid Grade Laminate. |
Lippings | All edges polished, rebated long edges. |
Hardware | Stainless steel rotary indicator bolt with circular shaped indicator plate. |
Samples required | Not required.Required. |
System accessories | Anodized aluminium 'D' pull handle to outward opening doors.Guidance for specification option: Hinges visible to the front with outward opening doors. |

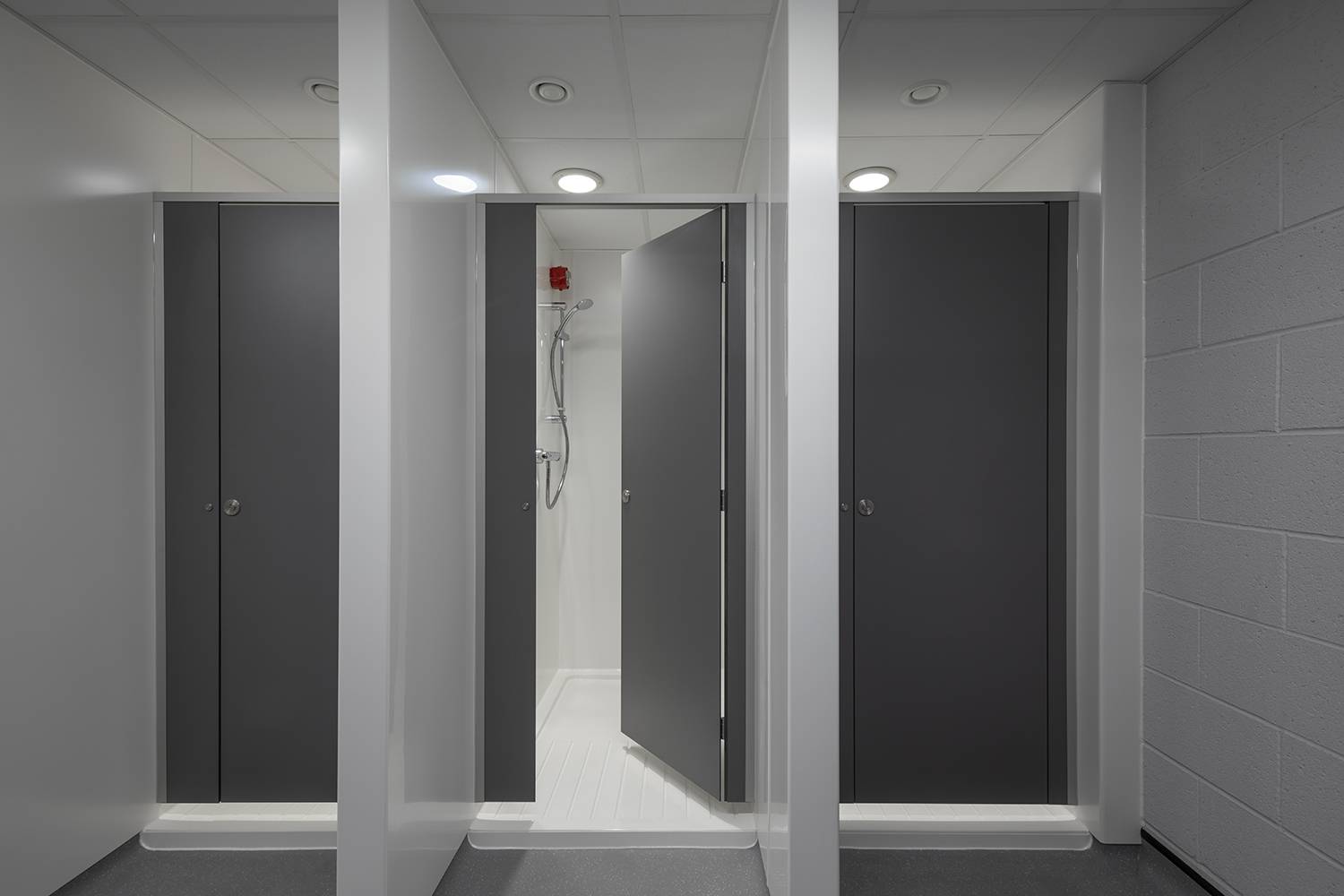

Cubicle height (overall) | 1980 mm. Guidance for specification option: Standard height version. Includes floor clearance of 150 mm. 2400 mm. Guidance for specification option: Full height version. Includes floor clearance of 20 mm to front wall and 50 mm to dividers. |
Headrail | Continuous extruded aluminium headrail and wall channels. Manufacturer guidanceExtruded aluminium head rail fixed to pilasters and end panels with stainless steel self-tapping screws. Panels fixed to aluminium channels with tamper-proof stainless steel fixings. |
Frame | Aluminium extrusions satin silver anodized to 25 µ. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Solid grade laminate (SGL) Laminate Stainless steel Aluminium |
Manufacturing plant location | |
Recyclability | Laminate, Aluminium |
Expected Life | Ten year |
Literature
Breeze Product Summary
Breeze Specification
