Cabine Nursery

Verified by manufacturer 2 months ago

Prospec Ltd

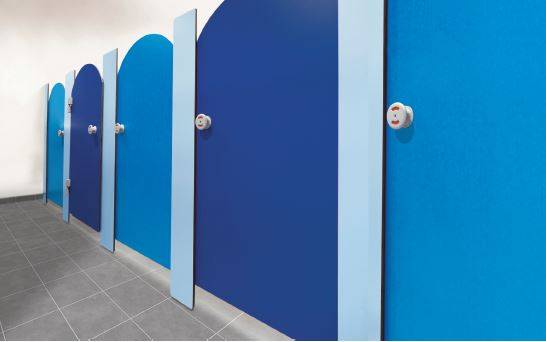

Unframed panel cubicle with compact grade laminate panels, for use by young children.

Jump to:
+44 (0)1709 377147 Website

Application

  • Educational establishments e.g. nurseries.
  • Child-friendly shops, bars and restaurants.
  • Not suitable for use in island or free-standing applications.

Description

Unframed panel cubicle with compact grade laminate panels, for use by young children.


Features and benefits:

  • Rise and fall hinges.
  • Pedestal adjustment of 40 mm.
  • Overlap door and panel detail.
  • Emergency release system.
  • Anti-finger trap design.
  • Adjustable door swing close/ open.
  • Different door height options are available.
  • Low level doors and partitions are provided for parental supervision.
  • Available in bright colours.
  • Doors are provided with rounded tops.

General information

Color

Silver

Finish

Anodized

Guidance for specification option:

Aluminium.

Manufacturer guidance

Moulded plastic also available.

Material

Laminate

Guidance for specification option:

Solid Grade Laminate.

Aluminium

Plastic

Guidance for specification option:

Moulded plastic.

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Specification data - Panel cubicle systems

Panels

10 mm Solid Grade Laminate.

Pilasters

10 mm Solid Grade Laminate.

Doors

10 mm Solid Grade Laminate.

Lippings

Polished and bull-nosed, with radiused corners.

Hardware

Rigid powder-coated aluminium 'U' and 'H' shaped floor and transom channel, PP-SGF design lock and hinge, powder-coated head rail and wall bracket, Rise and fall hinges, indicator, door buffers and emergency release.

Guidance for specification option:

  • Short glass fibre reinforced polypropylene (PP-SGF) design lock and hinge.
  • Lock has steel reinforced bar within the nylon moulding for added strength and comes with an emergency release mechanism.
  • Latch has an ergonomic, DDA compliant design.
  • Emergency release to the exterior.


Curtains

Heavy duty antibacterial.

Anti-mould.

Commercial curtains.

Samples required

Not required.

Required.

System accessories

Emergency release mechanism.

Guidance for specification option:

Consult manufacturer and insert requirements.

Type

Cubicle.

Changing.

WC.

Shower.

Height

1200 mm.

Guidance for specification option:

600–1200 mm. Insert requirement.

Partition panels

10 mm Solid Grade Laminate.

Guidance for specification option:

See manufacturer standard range and insert requirements.

Headrail

Continuous aluminium extrusions, painted, RAL 7040.

Cubicle height (overall)

Low level partitions and pilasters, including door/ floor clearance of 140 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

-

Manufacturer guidance

Europe mix.

Country of product manufacture

United Kingdom

Recyclability

Laminate

Manufacturer guidance

Limited.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Solid Grade Laminate
