ALU-T77 Insulated Aluminium Roller Shutter - Roller Shutter

Verified by manufacturer 3 months ago

ALU-T77 Colour

UK Roller Shutters Ltd Variant:

Aluminium double-skinned polyester powder coated shutter with polyurethane foam insulating core.

Jump to:
+44 (0)1384 221743 Website

Application

Suitable for larger openings in commercial or domestic sites where the customer wants to block out light, cold and sound, including:

  • Shop fronts.
  • Warehouses.

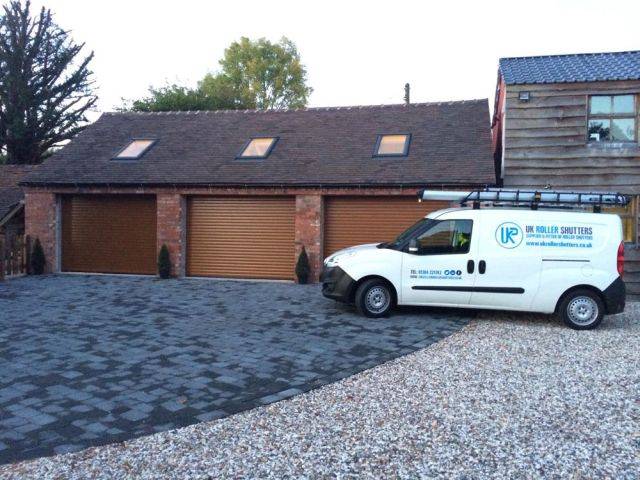

  • Garage doors.
  • Over large domestic windows.

Description

Aluminium roller shutter that combines heat and sound control with aesthetics. Made from 77 mm insulated aluminium, the shutter is larger than the ALU-12M411. These shutters can be programmed to run from a variety of control methods including remote controls, switches or even a smartphone and can be upgraded, to LPS 1175 Security Level 1. Because of their properties, the shutters are typically used on garages and can be sold as a set (GRGROLL-19) with safety edging, courtesy lights and remote controls included. They also come in a number of standard colours in order to choose the desired finish. If security is more important, the ALU-12E77 model is not insulated, but can be upgraded to LPS 1175 Security Level 2.


Features and benefits:

  • Can be upgraded to LPS1175 SR1 for an additional cost.
  • Fully CE marked.
  • Offers medium to high security.
  • More lightweight than a steel shutter meaning less energy is required to open them.
  • Available in 18 standard colours, and can also come in 4 wood laminate finishes for an extra charge.
  • Protection against crushing, shearing or drawing in.

General information

Color

Beige

Black

Blue

Brown

Green

Show more

Manufacturer guidance

Available in 18 standard colours.

Finish

Powder-coated

Material

Aluminium

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Guidance for specification option:

On electrical parts.

Uniclass

Pr_30_59_84_73 Roller shuttersPrimary

CAWS

L20/60 Doors

L20/610 Roller shutters/ curtains

Specification data - Roller shutters

Opening sizes

-

Manufacturer guidance

Bespoke, available on request.

Format

Thermally insulated.

Arrangement

Vertical.

Performance

-

Resistance to wind load

Class 2.

Shutter curtain.

-

Lath material

Aluminium.

Guidance for specification option:

Aluminium double-skinned polyester powder coated slat with polyurethane foam insulating core.

Finish and colour

Polyester powder coated, White.

Polyester powder coated, Brown.

Polyester powder coated, Beige.

Polyester powder coated, Blue.

Polyester powder coated, Moss green.

Polyester powder coated, Fir green.

Polyester powder coated, Sage green.

Polyester powder coated, Black.

Polyester powder coated, Red.

Polyester powder coated, Light grey.

Polyester powder coated, Silver.

Frame and guides

-

Material

Aluminium.

Finish

Powder coated.

Operation

-

Mode

Automatic, single-phase tubular motor.

Guidance for specification option:

With wall switch as standard.

Automatic, 3-phase outboard motor.

Manual.

Guidance for specification option:

Manual operation is available but not common as it is utilised for larger areas in most cases.

Manufacturer guidance

Depends on usage m².

Control

Key switch.

Radio / remote control.

Rocker switch.

Guidance for specification option:

Standard

Timer closing.

Loop and radar operation.

Smart phone.

Swipe card activation.

Automated.

Other.

Guidance for specification option:

UK Roller Shutters Ltd can access anyone's systems for operation.

Surface

77 mm.

Manufacturer guidance

Curtain slat blind surface.

Width

5500 mm.

Guidance for specification option:

As standard - larger sizes are available.

Manufacturer guidance

Curtain slat maximum width.

Weight

5.5 kg/m².

Manufacturer guidance

Curtain slat.

Area

16 m².

Guidance for specification option:

As standard - larger sizes are available.

Manufacturer guidance

Curtain slat maximum surface area.

Enclosure

Roll formed aluminium with a stove-enamelled finish.

End caps

Pressure moulded aluminium alloy.

Guide channels depth

70 mm.

90 mm.

150 mm.

Manufacturer guidance

Channel depth will be suited to overall width of the shutter.

Bottom slat

Extruded aluminium with weather seal.

U-value

1.5 W/m²K.

Dimensions

2000 x 250 mm.

3000 x 300 mm.

4000 x 360 mm.

Manufacturer guidance

Enclosure size: shutter height x box size (up to mm).

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Literature

ALU-T77 Brochure

ALU-T77 Brochure

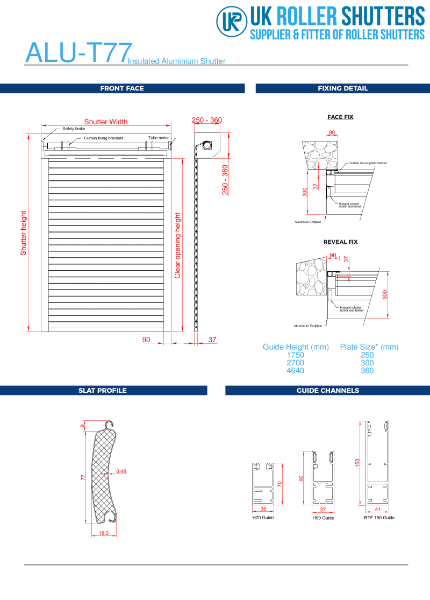

ALU-T77 Drawings Datasheet

ALU-T77 Drawings Datasheet
