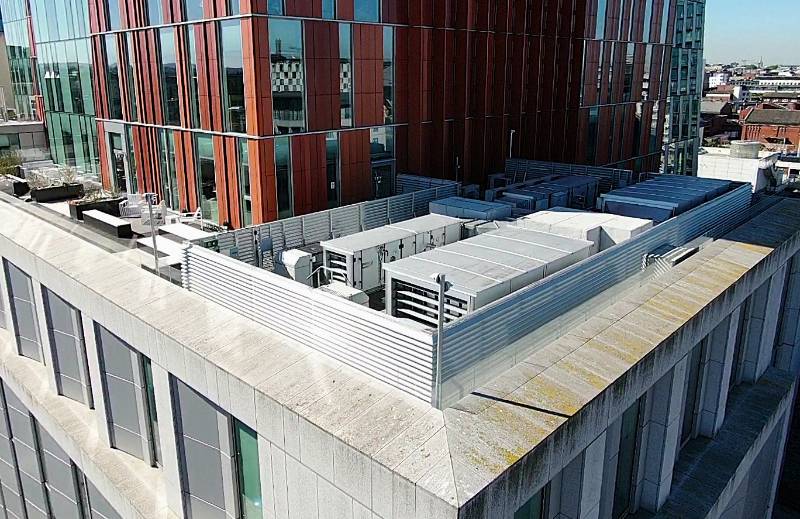

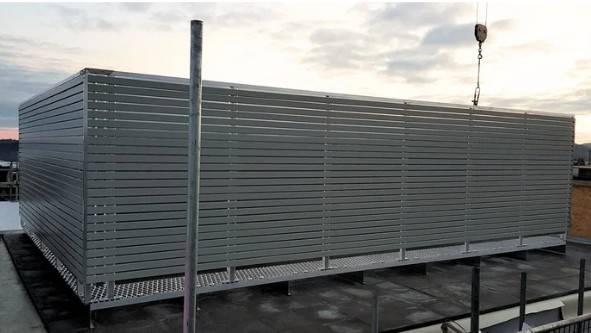

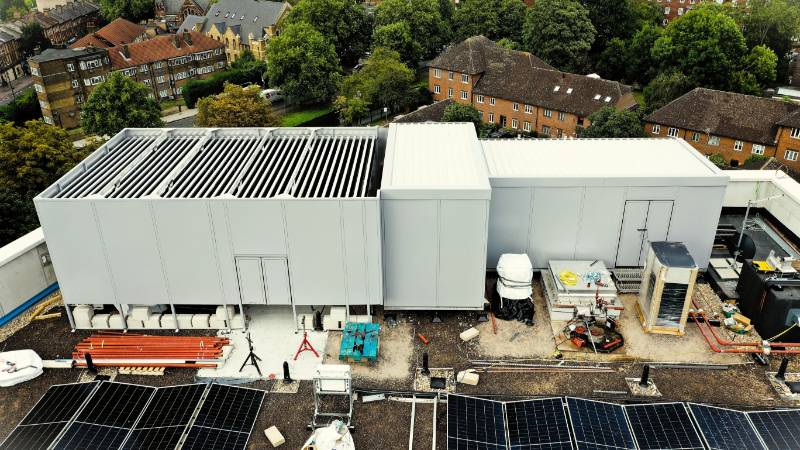

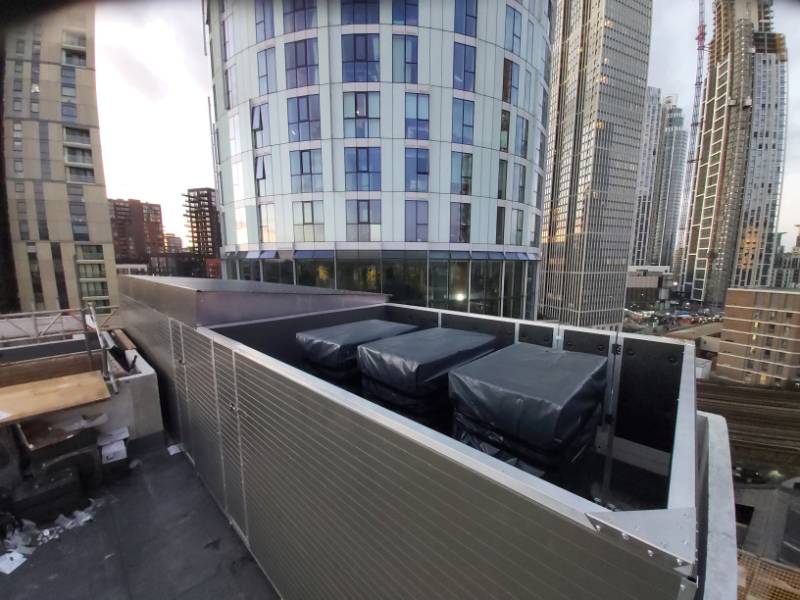

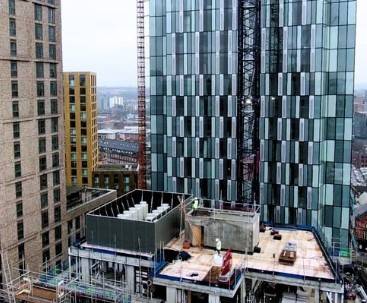

OVERVIEWThis fully integrated acoustic enclosure was pre-assembled offsite and lifted to the rooftop as a single completed unit, significantly reducing onsite work and disruption.The enclosure features a removable louvred roof, which was temporarily lifted off to allow for the seamless installation of five Daikin VRV units. This modular design streamlined logistics and installation while ensuring optimal access and acoustic performance.Key features- Series 1 platform for a secure, non-penetrating rooftop solution.- Removable louvred roof to allow airflow to the HVAC equipment whilst visually blocking from the surrounding tower blocks.- Peacemaker acoustic panels providing a 14db & NRC 1.0 reduction.- Conforms to BS EN 516 2006 and BS EN 1090-3 2008InstallationThe complete enclosure was preassembled in-house and then lifted into position on-site using a crane. This streamlined approach allowed for a highly efficient installation process. The unit featured a removable roof, designed specifically to facilitate the seamless placement of HVAC systems inside before being securely refitted. Thanks to the in-house assembly, the on-site installation was completed very quickly and with minimal disruption.DesignThe minimalist yet visually striking design developed by our in-house team, blended simplicity with sophisticated aesthetic appeal. From the initial concept to the final completion, consistent and clear communication throughout the process ensured a smooth and efficient execution. The design not only adhered to all specified roof requirements but also successfully addressed acoustic considerations, resulting in a solution that met both functional and aesthetic goals.

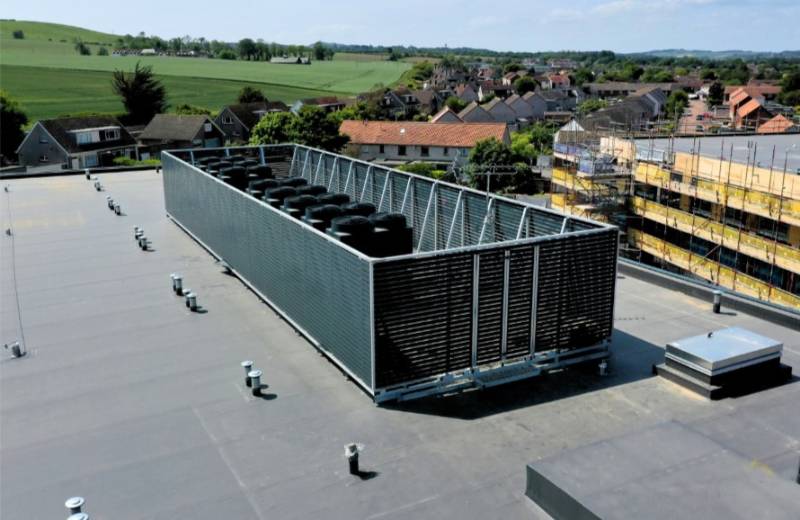

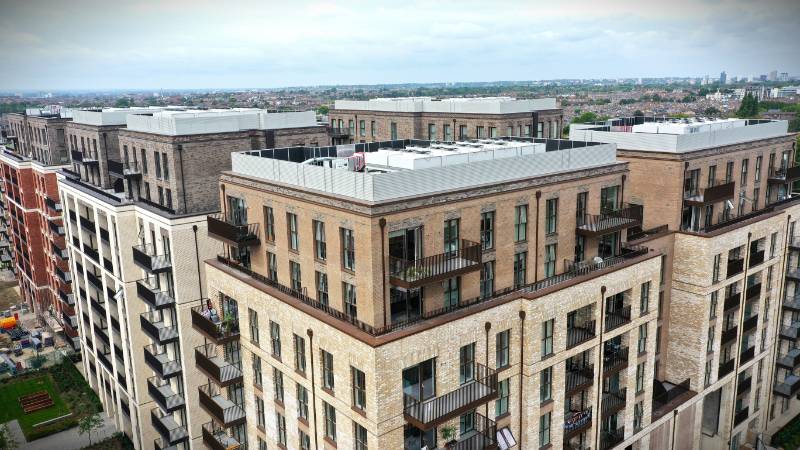

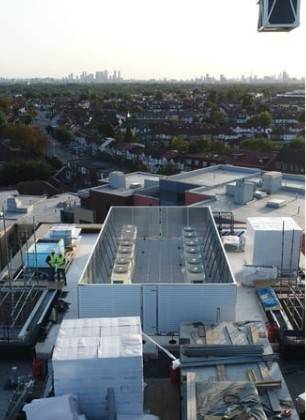

OVERVIEWThis project we provided 3 of our Series 2 non penetrating platforms with Soundshield acoustic screens to effectively house a range of HVAC equipment on the roof. The equipment internally acts as ballast for the enclosures to cope with wind loading. This innovative solution was seamlessly integrated with the surrounding screens to effectively conceal all plant equipment visually and acoustically. The raised mesh deck, upon which the units are mounted, offers 70% free area. These systems allowed the main contractor to continue and complete the building up to the final roof stage without having to worry about secondary steelwork for the plant enclosures which would have required weatherproofing and taken significantly longer to install. In contrast, these modular, pre-engineered, kit-form systems arrive on-site in crane-liftable packs and can be installed within just a few days with no roof penetrations.Key features- Series 2 freestanding deck to support the units with no roof penetrations.- Soundshield acoustic panels providing a 28db reduction.- Conforms to BS EN 516 2006 and BS EN 1090-3 2008InstallationThe installation was successfully completed in just 3 days by a dedicated team of 3. Thanks to the flat-packed modular solution and detailed instructions, the entire process proceeded seamlessly, with no issues of missing parts or product waste.DesignThe design, developed by our in-house design team, featured a non-penetrating deck system specifically engineered to support the equipment without compromising the integrity of the roof structure. The Soundshield screens are imperforate, acoustically reflective panels which fix to the back of the aesthetic finish and create a barrier achieving a weighted sound reduction of 28dB, maintaining both functionality and aesthetics. The design was meticulously tailored to meet all roof load requirements and plant equipment specifications, ensuring compliance with technical standards. Additionally, it allowed for an impressive 70% free airflow through the plant deck, supporting optimal ventilation and system performance while preserving the visual appeal of the installation.

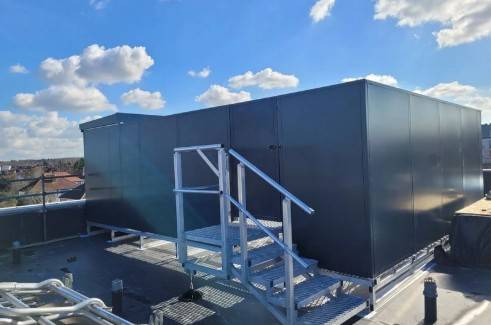

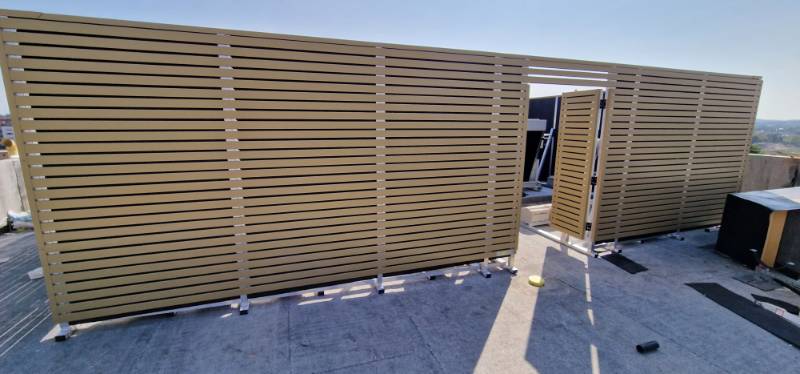

OVERVIEWWe’re proud to have worked with Buxton Building Contractors Limited on their Croft Avenue project in West Wickham. Our design consultant created a fully enclosed plant room and plant deck using our Series 3 platform, Flatscreen panels, with access doors. Steps combined with our Guardrail system enabled us to deliver a 'one stop shop' solution for the entire plant deck and enclosure.This solution ensures the plant area is fully accessible but is also secure. the whole design neatly integrates into the overall building design.Key features- Series 3 platform for a secure, non-penetrating rooftop solution.- Flatscreen panels for enclosing and protecting equipment.- Guardrail system and access steps to ensure safety for maintenance teams.- Conforms to BS EN 516 2006 and BS EN 1090-3 2008InstallationThe installation process was completed over the course of five days by a dedicated four-person team. The system was highly straightforward and efficiently assembled, with all components fitting seamlessly together. The installation proceeded smoothly without any issues, and there was no leftover material or wasted product, ensuring both optimal resource utilization and a streamlined setup.DesignThe minimalist yet visually striking design developed by our in-house team, blended simplicity with sophisticated aesthetic appeal. From the initial concept to the final completion, consistent and clear communication throughout the process ensured a smooth and efficient execution. The design not only adhered to all specified roof requirements but also successfully addressed acoustic considerations, resulting in a solution that met both functional and aesthetic goals.

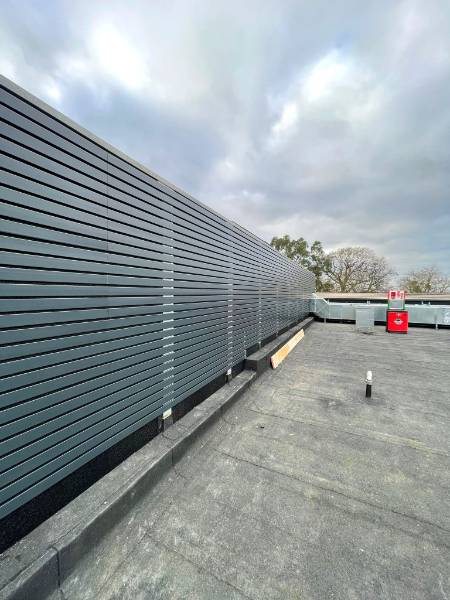

OVERVIEWOur Speedscreen system perfectly suited the requirement for a non-penetrating acoustic screen on this project. Calculated to suit the wind loading requirements of the site, it uses ballast weight to keep the screen in place, while completely removing the need for any fixing to the building. This eliminates the necessity for any structural steel, concrete stubs, and weathering around roof penetrations, as the Speedscreen sits straight on top of the single-ply roof and insulation.Key features- Speedscreen self-supporting ballast weighted system- Standard Screen PPC slats to visually conceal plant equipment- Soundshield acoustic barrier fitted to the rear of the screen to provide Rw28dB noise reduction.- Conforms to BS EN 516 2006 and BS EN 1090-3 2008InstallationThe installation was successfully completed in just 3 days by a dedicated team of 3. Thanks to the flat-packed modular solution and detailed instructions, the entire process proceeded seamlessly, with no issues of missing parts or product waste. The installation team was impressed with the ease afforded by the modular design, making each step of the install straightforward and efficient.DesignThis system, developed by our in-house design team, was created to screen off the plant equipment without penetrating the roof membrane, utilizing a ballast-weighted concept. The team worked in close collaboration with the client to ensure full compliance with all roof specifications. The modular design offered flexibility, accommodating changes throughout the project.

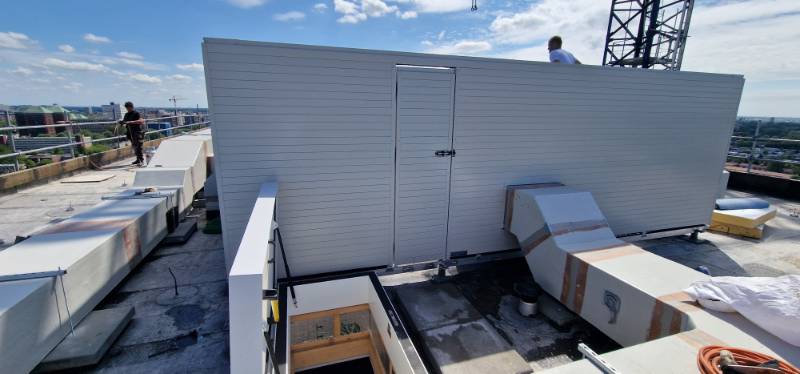

OVERVIEWThis 72m² Series 2 structural platform was designed and installed to support the placement of two double VRV condenser units. To address potential noise concerns and comply with local acoustic regulations, 2-metre-high Soundshield acoustic screens were installed on all four sides of the platform. These high-performance barriers effectively mitigate sound transmission to surrounding areas, contributing to a quieter environment for nearby occupants. An integrated access door was also included in the acoustic screening design to allow safe and convenient entry for maintenance personnel. The entire assembly demonstrates a balanced approach to functionality, compliance, and occupant comfort, making it a key component of the project’s success.Key features- Series 2 platform for a secure, non-penetrating rooftop solution.- Soundshield acoustic panels for enclosing and protecting equipment.- Guardrail system and access steps to ensure safety for maintenance teams.- Conforms to BS EN 516 2006 and BS EN 1090-3 2008InstallationThe installation process was completed over the course of two days by a dedicated three-person team. The system was highly straightforward and efficiently assembled, with all components fitting seamlessly together due to the whole system being prefabricates in our factory in Leeds. The installation proceeded smoothly without any issues, and there was no leftover material or wasted product, ensuring both optimal resource utilization and a streamlined setup.DesignThe platform was engineered to accommodate the significant weight and spatial requirements of the equipment, ensuring long-term structural stability and ease of maintenance access. The minimalist yet visually striking design developed by our in-house team, blended simplicity with sophisticated aesthetic appeal. The design not only adhered to all specified roof requirements but also successfully addressed acoustic considerations, resulting in a solution that met both functional and aesthetic goals.

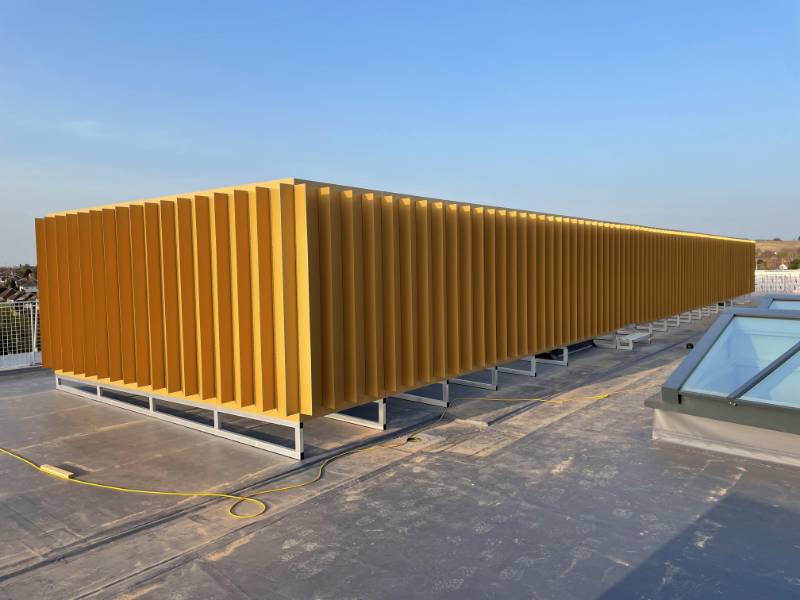

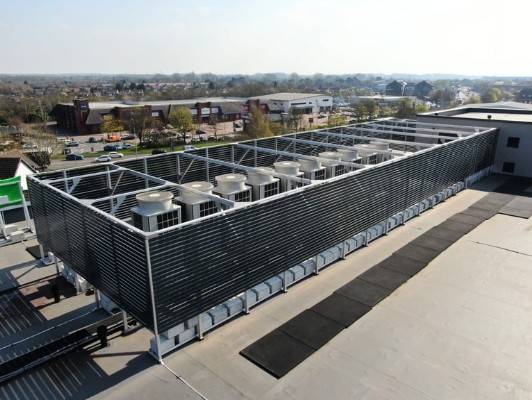

OVERVIEWConfigured Platforms delivered a non-penetrating, ballast-weighted visual screen enclosure to house multiple condensers on this newly constructed hotel. The Speedscreen400 system significantly reduced installation time and complexity for the main contractor by eliminating the need for concrete plinths or additional structural steelwork typically required for traditional steel enclosures. Unlike conventional systems that often necessitate roof membrane penetrations, this innovative solution rests directly on the finished roof surface.Key features- Speedscreen400 ballast weighted, non-penetrating, rooftop visual screen enclosure.- Standard Screen- aestheticallly pleasing aluminium slatted screen, polyester powder-coated to any RAL colour - Overhead bracing - ideally suited to congested roof areas due to maximum spatial efficiency - Conforms to BS EN 516 2006 and BS EN 1090-3 2008Installation"Installation was impressively completed in just three days by a team of three installers. This rapid turnaround was made possible by the highly efficient solution, delivered flat-packed with clear, easy-to-follow instructions—minimizing disruption and maximizing on-site efficiency."DesignThis simple yet effective design, developed by our in-house team, delivered a clean and professional solution to screen off the plant equipment. To protect the roof and provide a cushioned interface, a 6mm foam rubber tape was applied to the underside of each foot to ensure a soft and secure transition onto the surface and to reduce vibration. The design of the enclosure not only met all the specified maintenance access requirements but also carefully addressed visual considerations, ensuring that the units were concealed from site in every direction. This combination of functionality and aesthetic appeal resulted in a final product that satisfied both technical and architectural expectations. By optimizing the design for both efficiency and performance, we were able to provide a solution that enhanced the overall project timeline, reduced costs and risks of leaks, and met all functional and aesthetic goals.

Jewish Home Refurb - Gibraltar

OVERVIEWThis project utilized our non-penetrating Series 3 plant deck with a mezzanine level and stairway, which maximized the space efficiency by creating another plant area above the roof. This was effectively screened off with our continuous Standard Screen powder coated slat, which integrated seamlessly into the plant decks. The 70% free area of the Series 3 surface ensured airflow between levels to fulfil the plant equipment manufacturer's requirements.Key featuresSeries 3 platform providing a secure, non-penetrating deck to support the units.Standard Screen PPC slats to visually conceal plant equipment Mezzanine level to maximize spatial efficiency.Conforms to BS EN 516 2006 and BS EN 1090-3 2008InstallationThe entire installation was completed in just three days by a team of five installers, thanks largely to the modular design of the system. The prefabricated components were manufactured offsite in our factory in Leeds and delivered ready for rapid assembly, significantly reducing onsite construction time and labour requirements. This modular approach not only streamlined the installation process but also minimised disruption to ongoing site operations. The result is a fully functional, acoustically treated rooftop solution that delivers on structural integrity, operational efficiency, and environmental performance, all within a remarkably short project timeline.DesignThis solution maximized the use of limited space by incorporating a mezzanine level accessed via a hand-railed step ladder. Our I-Bearer beam was utilized to provide a clear-spanning structural element, ensuring both strength and efficiency. The standard screens were continuous on the outside making a very tidy finish and screening off the equipment on both levels.

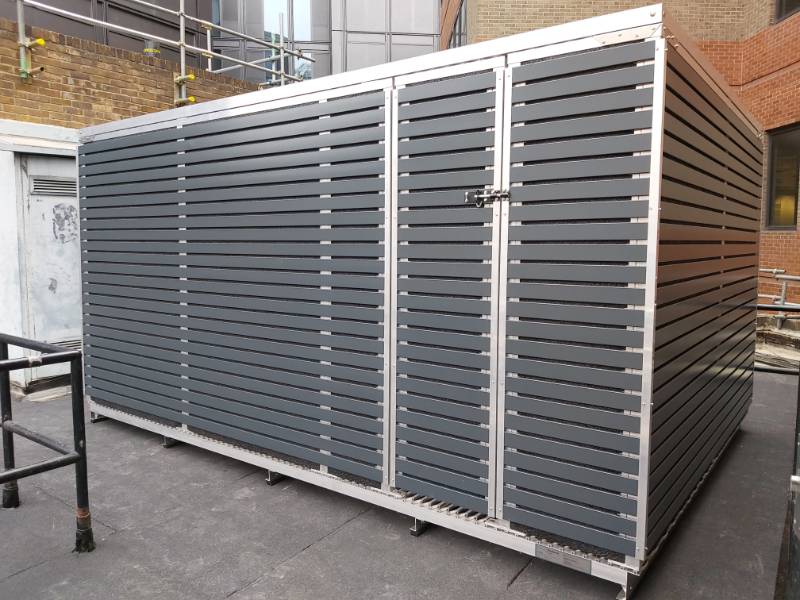

OVERVIEWDue to the highly constrained space along the side of the building, this custom-designed Acoustic+ enclosure was engineered with overhead bracing to eliminate the need for internal post supports. This design maximized usable space without obstructing airflow or maintenance access. To blend seamlessly with the building’s exterior, the screen slats were powder-coated in a complementary finish, effectively concealing the HVAC equipment while maintaining a clean and modern appearance. This modular approach, paired with a bespoke design, successfully overcame spatial limitations without compromising acoustic performance, visual appeal, or project timelinesKey features- Series 1 platform for a secure, non-penetrating rooftop solution.- Acoustic + panels providing a 33db + NRC 1.0 reduction.- Overhead bracing removing the need for internal post supports. - Conforms to BS EN 516 2006 and BS EN 1090-3 2008InstallationTo streamline the installation process and minimize disruption on site, the enclosure's base and side panels were pre-fabricated in our factory in Leeds. This approach not only ensured higher precision and quality control but also significantly reduced the time and labor required during the final installation phase. As a result, the total on-site installation time was reduced to just three hours, allowing the project team to meet tight scheduling requirements and minimize impact to ongoing site operations.DesignDue to the highly constrained and narrow access space along the side of the building, a standard acoustic enclosure design would have been impractical. To address this challenge, a custom-engineered Acoustic+ enclosure was developed with a unique structural configuration. This bespoke design incorporated overhead bracing, which eliminated the need for internal post supports. By removing internal bracing, the design maximized usable internal space while maintaining structural integrity, acoustic performance, and ease of maintenance access.

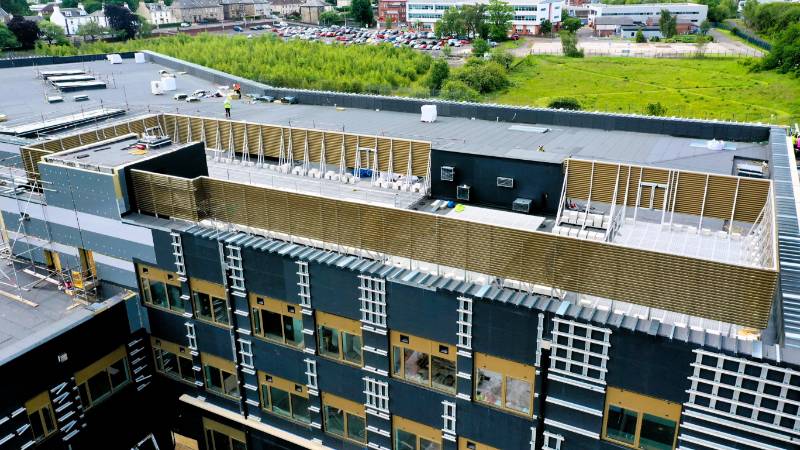

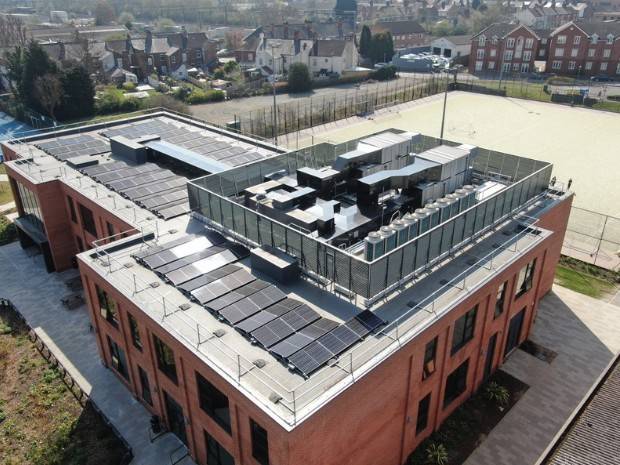

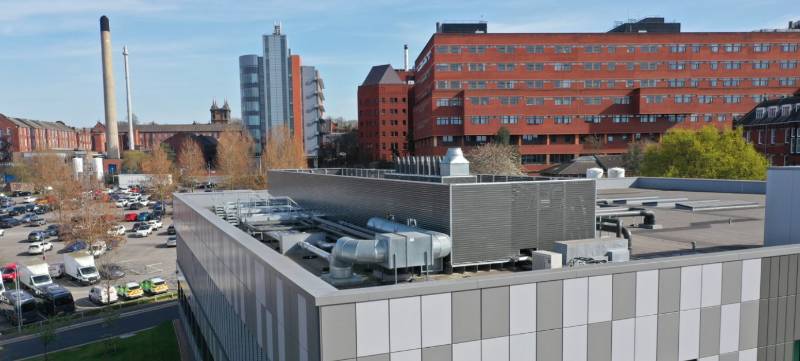

OVERVIEWThis combination of Series 3 platforms and 310m of Speedscreen made for an excellent solution for mounting equipment and screening off ductwork. Also included were two screened walkways for access between roof areas. The system utilized a ballast-weighted design, which meant that no roof penetrations were required during installation. This preserved the integrity of the waterproofing membrane and reduced the risk of leaks or long-term structural issues—an ideal solution for retrofits or sensitive roof structures. Key Features included; Series 3 platform for a secure, non-penetrating rooftop solution. Ballast-weighted Speedscreen for enclosing and protecting equipment without any roof penetrations.Guardrail system and access steps to ensure safety for maintenance teams.Conforms to BS EN 516 2006 and BS EN 1090-3 2008INSTALL The installation was successfully completed over a three-week period by a dedicated five person team. Thanks to the modular, prefaabricated design and the inclusion of clear, easy to follow instructions, the process was highly efficient from start to finish. The pre-engineered components arrived onsite organized and ready for assembly, significantly reducing installation time and complexity.The modular concept played a key role in the project's success; ensuring there were no missing parts, no product waste, and no delays. This streamlined approach not only minimized onsite disruption but also enabled the team to complete the build smoothly and within the projected timeline.DESIGNThis low Speedscreen system was purposefully designed to hide unsightly air conditioning units and ductwork, ensuring a cleaner and more cohesive rooftop aesthetic. Spanning a whopping 453 metres all together, the screens not only delivered on visual impact but also on practicality. It was powder-coated to perfectly match the building’s exterior, helping it blend seamlessly with the overall architectural palette.Additionally, a Series 3 platform was used to mount specific HVAC equipment. The platform featured a specialised 6mm cushioning tape applied to its base, creating a soft interface between the structure and the roof surface. This approach ensured that rooftop equipment could be securely supported without compromising the membrane, required no penetrations and reduced vibration.

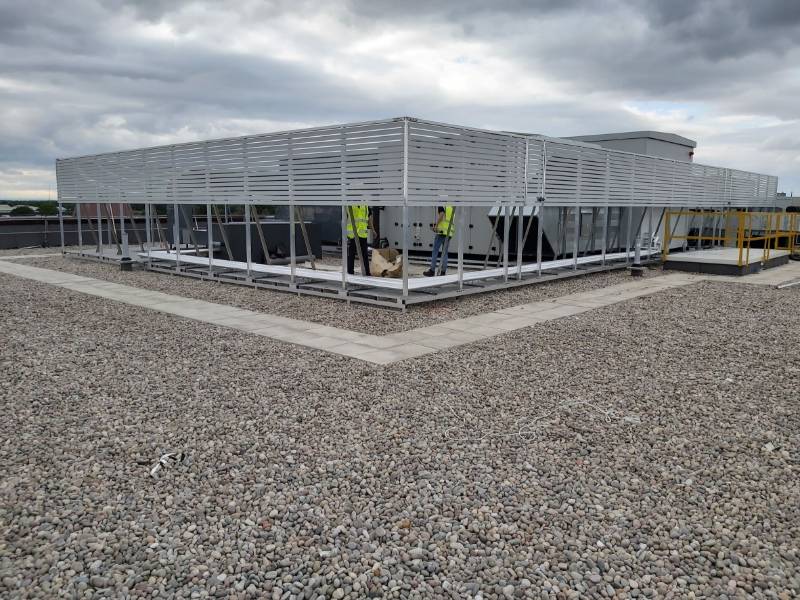

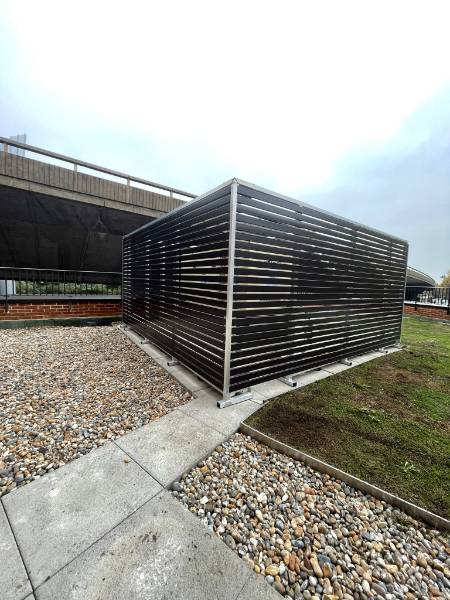

OVERVIEWFor this project we supplied our freestanding Series 3 platform plant deck system. This system spreads the load of the units without needing to use a traditional style of plant deck - removing the need for heavy structural steel, concrete plinths, and weathering around roof penetrations. The deck was integrated with our Standard screen architectural finish, with Acoustic+ backing to visually and acoustically screen off the equipment. Key features- Series 3 platform for a secure, non-penetrating rooftop solution.- Acoustic + panels providing a 33db + NRC 1.0 reduction.- Standard Screen to enclose and screen off the units. - Conforms to BS EN 516 2006 and BS EN 1090-3 2008InstallationThe install for this job was completed quickly and efficiently due to the modular design which was prefabricated in our factory in Leeds and delivered flat-packed to site in kit form. Using the load-sharing plant deck as a base meant that the equipment could be craned in and easily placed anywhere on the deck, without having to worry about point loading to the roof. DesignThe design developed by our inhouse design team featured a load-sharing plant deck structure constructed from lightweight aluminum which integrated with our Standard screen and Acoustic + absorptive panels. Our acoustics calculation tool was used to help generate an indication of the required height and acoustic rating of the screen. The Standard Screen was powdercoated to blend in with the exterior of the building.

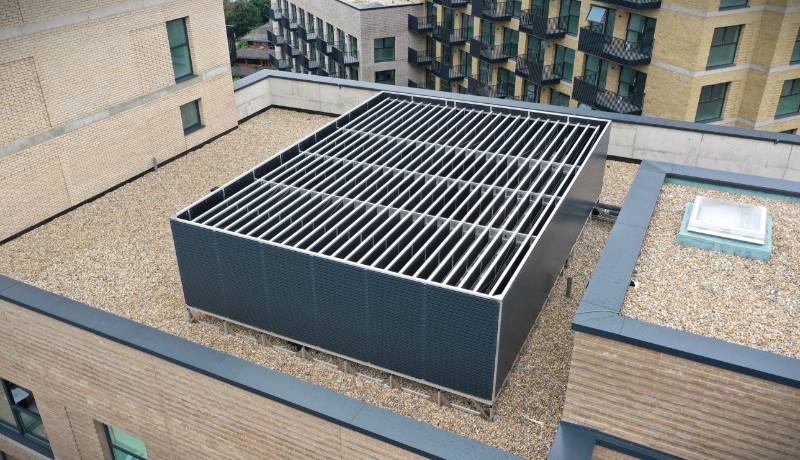

OVERVIEWFor this project we supplied a 42m² Series 1 Platform with Standard Screen designed to mount and isolate ten Mitsubishi VRV units without any roof penetrations. To mitigate sound disruption the platform was complemented with a high-performance Soundshield Screen surround on two sides. By combining structural integrity with advanced noise reduction technology, the installation met all planning and environmental compliance requirements. It also demonstrated a proactive approach to community impact mitigation, providing peace of mind for nearby residents and contributing to the overall sustainability of the development.Key features- Series 1 platform for a secure, non-penetrating rooftop solution.- Standard Screen panels for enclosing and protecting equipment.- Soundshield acoustic panels providing a 28db reduction.- Conforms to BS EN 516 2006 and BS EN 1090-3 2008InstallationThanks to the modular, prefabricated design and the inclusion of clear, easy to follow instructions, the process was highly efficient from start to finish. The pre-engineered components arrived onsite organized and ready for assembly, significantly reducing installation time and complexity. The modular concept played a key role in the project's success; ensuring there were no missing parts, no product waste, and no delays. This streamlined approach not only minimized onsite disruption but also enabled the team to complete the build smoothly and within the projected timeline.DesignThis design developed by our inhouse design team featured a fully integrated. penetration-less plant deck and screen system. Acoustic panels was strategically installed to two sides to act as a sound barrier, effectively mitigating the operational noise emitted by the VRV units. The choice of a Series 1 Platform provided a robust and stable base, ensuring both safety and functionality, while also facilitating easier access for ongoing maintenance.

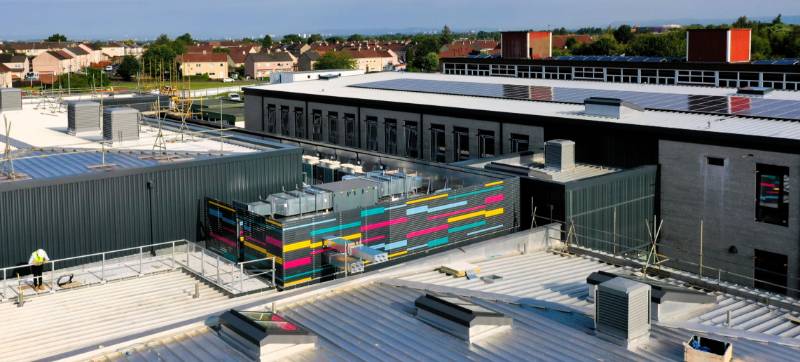

OVERVIEWOur solution eliminated a 200mm thick concrete slab at roof height with all associated costs in timeand hassle, and allowed the Kingspan roof to continue through over the complete area. This significantlyshortened the time it took to get the building to the watertight stage resulting in an estimated cost saving of £120,000.00 and reduced the program by 6 weeks. With a total weight of 6 tonnes instead of approximately 25-30 tonnes, this was a huge saving on the environment as well as the structural requirements.The complete roof plant enclosure was installed in less than 2 weeks, with a crane required for one day only.Key features- Series 1 platform for a secure, non-penetrating rooftop solution.- Acoustic panels for reducing sound pollution.- Prefabricated flue support structure to save installation time on site- Conforms to BS EN 516 2006 and BS EN 1090-3 2008INSTALLATIONThe installation of the entire roof plant enclosure was completed in less than two weeks, with the crane being required for just a single day. The quick and efficient installation minimized disruption to the surrounding environment, enabling other ongoing activities to continue without delay. Additionally, the streamlined installation process meant that the package was delivered ahead of schedule, ensuring that the roof plant was operational in good time. DESIGNThis simple yet effective design, developed by our in-house team, delivered a clean and professional solution to screen off the plant equipment, while also providing significant acoustic attenuation. A level, non-penetrating raised mesh deck was designed to evenly distribute the load of the units, providing stable support while eliminating any risk of damage to the roof surface. To further protect the roof and provide a cushioned interface, a 6mm foam rubber tape was applied to ensure a soft and secure transition onto the surface.The design not only met all the specified roof requirements but also carefully addressed acoustic considerations, ensuring that noise control was integrated seamlessly into the overall solution. This combination of functionality and aesthetic appeal resulted in a final product that satisfied both technical and visual expectations. By optimizing the design for both efficiency and performance, we were able to provide a solution that enhanced the overall project timeline, reduced costs, and met all functional and aesthetic goals.

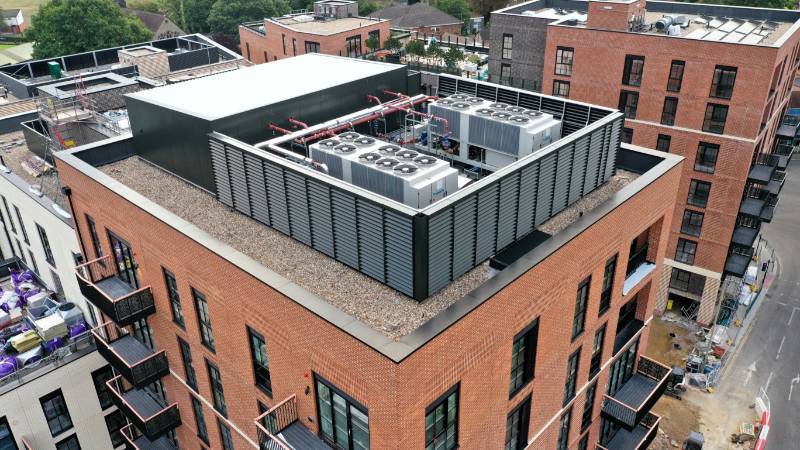

OVERVIEWThis project we provided our Series 2 freestanding plant deck, with an adjustable base to suit the varied roof falls. This acted as a base for the ASHPs and plant screens, utilising the weight of the units as ballast to mitigate wind loading to the Standard screens which were attached to visually conceal the equipment. Our Speedscreen was also used in areas to hide unsightly HVAC/R equipment from a rooftop terrace. The entire screen structure and trims were powder coated, to suit the architectural requirements and match in with the red brick theme of the building. Key featuresSeries 2 platform for a secure, non-penetrating rooftop solution.Standard screen panels for enclosing and protecting equipment.Ballast weighted Speedscreen system to visually screen off the equipment from a roof terrace with no roof penetrations.Conforms to BS EN 516 2006 and BS EN 1090-3 2008InstallationThanks to the modular, prefabricated design and the inclusion of clear, easy to follow instructions, the process was highly efficient from start to finish. The pre-engineered components arrived onsite organized and ready for assembly, significantly reducing installation time and complexity. The modular concept played a key role in the project's success; ensuring there were no missing parts, no product waste, and no delays. This streamlined approach not only minimized onsite disruption but also enabled the team to complete the build smoothly and within the projected timeline.DesignThis design developed by our inhouse design team featured a fully integrated. penetration-less plant deck and screen system. Acoustic panels was strategically installed to two sides to act as a sound barrier, effectively mitigating the operational noise emitted by the VRV units. The choice of a Series 1 Platform provided a robust and stable base, ensuring both safety and functionality, while also facilitating easier access for ongoing maintenance.
