UltraPly™ TPO Mechanically Attached Warm Roof System - Single Ply Membrane Warm Roof System
Verified by manufacturer 2 months ago
EPD
Certificate type

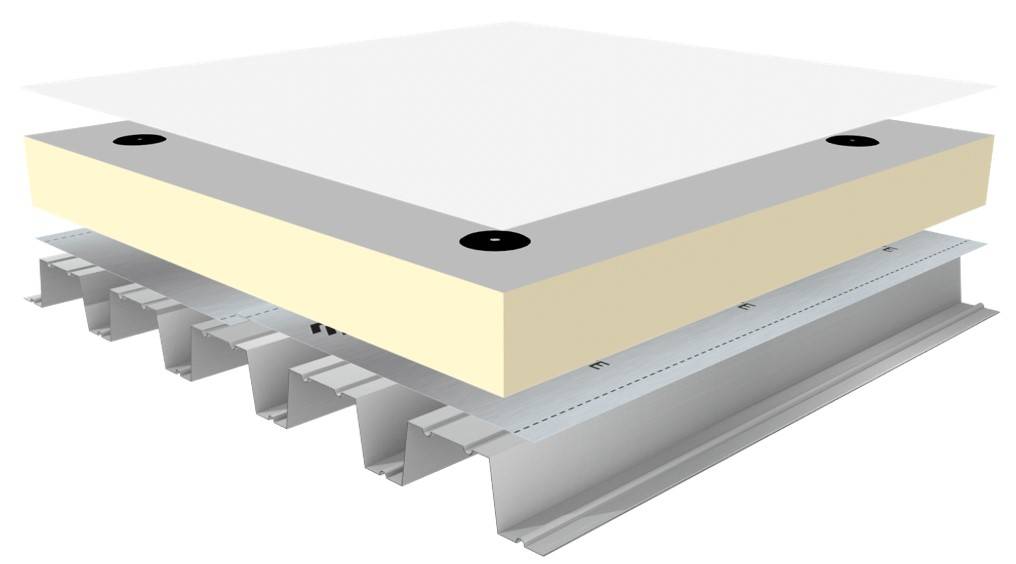

A mechanically attached, single ply membrane warm roof system.
Application
Suitable for profiled metal steel deck applications.
Description
The UltraPly™ TPO Mechanically Attached System is a lightweight system that can be used where the roof deck is suitable for mechanical attachment.
Features and benefits:
- Adaptable to unusual roof configurations.
- High wind uplift performance.
- Economic solution.
- Lightweight system.
- Fast installation.
System components:
- UltraPly™ TPO.
- ISOGARD™ AK PIR Insulation.
- ISOGARD™ MG PIR Insulation.
- RESISTA™ AK PIR Insulation.
- RESISTA™ MG PIR Insulation.
- Air and vapour control layer.
- HD Seam Plates.
- All Purpose Fasteners.
- BA-2012 Bonding Adhesive (for vertical membrane application).
General information
Color | White Grey |
Material | Polyolefin Polyisocyanurate (PIR) |
Height | 1.2 mm 1.5 mm 1.8 mm 2.0 mm |
Uniclass | |
CAWS | J42/10 Warm deck roof covering J42/110 Warm deck roof covering |
Specification data - Single layer sheet warm roof covering systems
Preparation | |
Horizontal work | The substrate will be securely fixed, clean, dry, smooth and free of contaminants such as greases, animal fats, coal tar and oil-based products. All sharp edges, nibs and rough surfaces which could damage the membrane will be removed or otherwise isolated. |
Air and vapour control layer | |
Type | Elevate V-Gard ALU 1500 self-adhesive air and vapour control layer.Elevate V-Gard PE 200 air and vapour control layer.Elevate V-Gard PE 200 E air and vapour control layer.Elevate V-Gard PE 400 air and vapour control layer.Manufacturer guidanceV-Gard ALU 1500 Use where insulation layer is to be mechanically attached through the AVCL. Self-adhesive to approved substrates (wood, steel). V-Gard PE 200, V-Gard PE 200 E, V-Gard PE 400 Use where insulation layer is to be mechanically attached through the AVCL (low humidity class buildings only). Loose laid over the approved substrate, joints are taped using V-Gard PE Seam Tape. |
Attachment | As type. |
Insulation | |
Type | ISOGARD AK PIR Insulation.Guidance for specification option: Thermal conductivity: 0.023 W/m.K. Thickness: 30–160 mm. Insert requirements. Elevate ISOGARD AK insulation board consists of a closed-cell polyiso (PIR) foam core laminated on both sides to a gastight multi-layered aluminium complex. ISOGARD MG PIR Insulation.Guidance for specification option: Thermal conductivity: 0.025–0.028 W/m.K. Thickness: 30–160 mm. Insert requirements. Elevate ISOGARD MG insulation board consists of a closed-cell polyiso (PIR) foam core laminated on both sides to a gasopen mineral glassfibre facer. RESISTA AK PIR Insulation.Guidance for specification option: Thermal conductivity: 0.023 W/m.K. Thickness: 30–160 mm. Insert requirements. Elevate RESISTA AK insulation board consists of a closed-cell polyiso (PIR) foam core laminated on both sides to a gastight multi-layered aluminium complex. RESISTA MG PIR Insulation.Guidance for specification option: Thermal conductivity: 0.025–0.028 W/m.K. Thickness: 30–160 mm. Insert requirements. Elevate RESISTA MG insulation board consists of a closed-cell polyiso (PIR) foam core laminated on both sides to a gasopen mineral glassfibre facer. Manufacturer guidanceConsult the manufacturer's Technical Services Department for R-Value/U-value calculations as required. |
Attachment | Insulation plates and fasteners.Guidance for specification option: The fastening pattern is chosen in line with the manufacturer's installation guidelines and to accommodate for wind loading. |
Waterproof covering | |
Type | UltraPly™ TPO Roofing Membrane 1.1 mm.UltraPly™ TPO Roofing Membrane 1.2 mm.UltraPly™ TPO Roofing Membrane 1.5 mm.UltraPly™ TPO Roofing Membrane 1.8 mm.Manufacturer guidanceA flexible thermoplastic polyolefin membrane, incorporating ethylene-propylene rubber into a polypropylene matrix, with a polyester weft-inserted scrim reinforcement, manufactured in an ISO 9001 and ISO 14001 registered facility. Specification compliance: UL Classified/ FM Approved. ASTM D 6878-2013/ EN 13956 (CE Mark). 7500 hrs of Artificial Ageing as per EN 1297. |
Attachment | Elevate HD Seam Plates and Elevate All Purpose Fasteners.Guidance for specification option: Spacing of the plates and/or fasteners differs to accommodate for wind loadings and are positioned according to the parameters of the wind load calculation based on local or international standards. |
Joints | 150 mm minimum overlap with welded seam for mechanical fixation side. |
Surface protection | UltraPly TPO Walkway Pads.Guidance for specification option: A 762 mm wide walkway made of flexible thermoplastic polyolefin and produced with a polyester weft inserted reinforcement. It has a white, textured, slip-resistant top surface. It is required to protect the roofing system from damage in areas with intensive rooftop traffic (hatches, doorways, ladders and roofs subject to periodic traffic for maintenance of technical equipment, etc.). |
System accessories | UltraPly TPO Coated Metal Plate.UltraPly TPO Cut Edge Sealant.UltraPly TPO QuickSeam Flashing.UltraPly TPO Joint Cover.UltraPly TPO Inside/Outside Corners.UltraPly TPO Walkway Pad.UltraPly TPO General Purpose Sealant.Water Block Seal (S-20).Pourable Sealer S-10 (Parts A & B).Splice Wash SW-100Bonding Adhesive BA-2012.Coiled Metal Batten Strip.HD Seam Plates.Single Ply QuickPrime Primer.All Purpose (AP) Fasteners.Heavy Duty (HD) Fasteners.Termination Bar. |
Corners | Corners formed using UltraPly TPO Pre-moulded inside/outside corner. Corners field-fabricated using UltraPly TPO Unsupported Flashing. |
Pipes | Pipe penetrations: Flash with pre-moulded UltraPly TPO Pipe Flashing, Field flashing using UltraPly TPO Unsupported Flashing or UltraPly TPO Penetration Pocket Kit. |
Outlets | Drains: Install Water Block Sealant between membrane and outlet bowl. Secure membrane mechanically to outlet using integral clamping ring. Drains: Insert outlet bedded on Water Block Sealant. Secure and flash with QuickSeam Flashing. |
Walls | Wall terminations: Termination bar, fastened with Water Block Sealant and GP Sealant installed along top edge. Guidance for specification option: @200mm (maximum) o.c. Wall terminations: Metal batten bar fastened with surface mounted or inserted metal counter flashing protection. Guidance for specification option: @150mm (maximum) o.c. Wall terminations: Metal capping or concrete coping stones. Wall terminations: Edge trim formed from UltraPly TPO Coated Metal. Guidance for specification option: An edge trim will be prefabricated using UltraPly TPO Coated Metal and installed with fasteners @ maximum 200 mm centres. The UltraPly TPO roofing membrane will be sealed to the trim by hot-air welding. Wall termination: Preformed metal edge trim. |
Colour/ Finish | White. Grey. |
