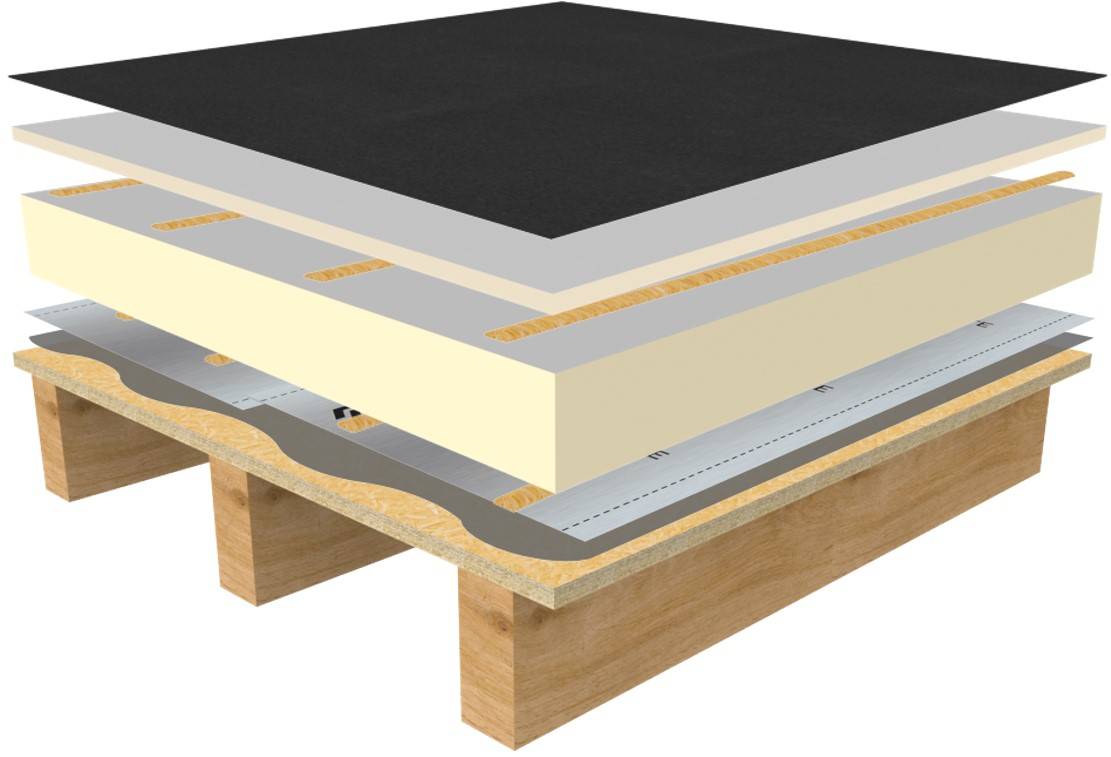

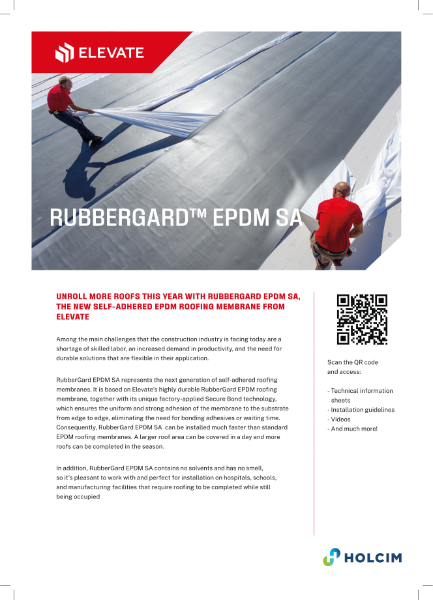

RubberGard™ EPDM SA Fully Adhered Warm Roof System - Self-adhesive EPDM Single Ply Roofing

The substrate will be securely fixed, clean, dry, smooth and free of contaminants such as greases, animal fats, coal tar and oil-based products. All sharp edges, nibs and rough surfaces which could damage the membrane will be removed or otherwise isolated.
Should the V-Gard MAX air and vapour control layer be used, the substrate will be prepared with Elevate SA-19 Primer.

SA-19 Primer.

Guidance for specification option:

Elevate SA-19 Primer is used to prime and prepare exterior concrete, wood, and metal surfaces to enhance the adhesion of Elevate V-Gard vapour control.

It is also used to prime seams of the V-Gard vapour control layer when required.

Can also be used for vertical application of the RubberGard EPDM SA membrane.

QuickPrime Plus.

Guidance for specification option:

Alternative primer for vertical application of the RubberGard EPDM SA membrane.

Elevate V-Gard MAX Self-Adhesive Air & Vapour Control layer.

Guidance for specification option:

Use where insulation layer is to be adhered to the AVCL.

Self-adhesive to approved substrates (wood, steel).

Elevate V-Gard ALU1500 Self-Adhesive Air & Vapour Control layer.

Guidance for specification option:

Use where insulation layer is to be mechanically attached through the AVCL.

Self-adhesive to approved substrates (wood, steel).

Elevate V-Gard PE 200 Air & Vapour Control layer.

Guidance for specification option:

Use where insulation layer is to be mechanically attached through the AVCL (Low Humidity Class Buildings Only).

Loose laid over the approved substrate, joints are taped using V-Gard PE Seam Tape.

Elevate V-Gard PE 200 E Air & Vapour Control layer.

Guidance for specification option:

Use where insulation layer is to be mechanically attached through the AVCL (Low Humidity Class Buildings Only).

Loose laid over the approved substrate, joints are taped using V-Gard PE Seam Tape.

Elevate V-Gard PE 400 Air & Vapour Control layer.

Guidance for specification option:

Use where insulation layer is to be mechanically attached through the AVCL (Low Humidity Class Buildings Only).

Loose laid over the approved substrate, joints are taped using V-Gard PE Seam Tape.

As Type.

Guidance for specification option:

See Type guidance above for details.

RESISTA™ AK+/MG insulation boards.

Guidance for specification option:

Consult manufacturer for details.

ISOGARD™ AK/MG insulation boards.

Guidance for specification option:

Consult manufacturer for details.

ISOGARD HD cover board.

Guidance for specification option:

An optional, lightweight, high-density polyiso (PIR) foam cover board of 12.7 mm thickness, with coated fiberglass facers to both sides, which is used to protect the insulation layer beneath and may also be used as a recovery board. It provides an optimum surface for fully adhered Elevate roofing membranes.

Consult manufacturer for further details.

DensDeck Prime cover board.

Guidance for specification option:

Patented design that consists of a water- and moisture-resistant treated gypsum core laminated on both sides to a mat glass facer.

Features a pre-primed surface for a better bond in case of a fully adhered roof cover.

Consult manufacturer for further details.

Other.

Guidance for specification option:

Insert details of suitable PIR MG insulation boards (consult manufacturer to confirm suitability.

I.S.O. Twin Pack Insulation Adhesive.

Guidance for specification option:

Elevate I.S.O. Twin Pack Insulation Adhesive is a two-component low-rise polyurethane adhesive designed for anchoring acceptable roof insulation and cover boards to an acceptable substrate, as well as for adhering multiple layers of insulation.

It is a solvent-free insulation adhesive that contains no harmful HCFCs or CFCs.

Mechanical attachment using appropriate fasteners and load spreading plates as approved by manufacturer.

Guidance for specification option:

Consult manufacturer for details.

RubberGard™ EPDM SA.

Guidance for specification option:

1.5 mm thick; supplied as standard in rolls of 30 x 3 m.

Self-adhesive.

Side laps 100 mm minimum overlap with 76 mm QuickSeam Splice Tape.
End laps and edges where an adhesive-free selvedge is not available will be sealed using 150 mm-wide QuickSeam Cover Strip.

Guidance for specification option:

Expansion joints:

• Ensure enough excess of RubberGard EPDM SA membrane to accommodate building movements. A compressible tube supports the membrane.
• The release liner of the RubberGard EPDM SA membrane in contact with the compressible tube should not be removed.

Roof edge and wall termination:

• A roof edge or wall termination detail should be installed as specified by the designer and is applicable at all locations where the EPDM flashing ends, e.g. at all flat edges, wall or curb upstands. The standard roof edge details illustrated in the RubberGard EPDM Technical Guidelines are also applicable for the RubberGard EPDM SA system.
• The RubberGard EPDM SA flashing should always be mechanically fixed where ended, when used to flash in roof edges or wall termination, as per standard RubberGard EPDM detail drawings.

Consult manufacturer's literature for full details.

QuickSeam Splice Tape.

QuickSeam FormFlash.

QuickSeam Flashing.

QuickSeam SA Flashing.

QuickSeam Reinforced Perimeter Fastening Strip.

QuickSeam Universal Pipe Flashing.

QuickSeam Conduit Flashing.

QuickSeam Penetration Pocket.

QuickSeam Walkway Pad.

QuickPrime Plus.

Lap Sealant HS.

All Purpose (AP) Fasteners.

Heavy Duty (HD) Fasteners.

Splice Wash (SW-100).

Cleaner C-20.

Water-Block Seal (S-20).

Pourable Sealer S-10 (Parts A & B).

Coiled Metal Batten Strip.

Metal Batten Strip.

Termination Bar.

V-Plates.
