RubberGard™ EPDM Mechanically Attached Warm Roof System
Verified by manufacturer 2 months ago
BBA Agrément Certificate
Certificate type

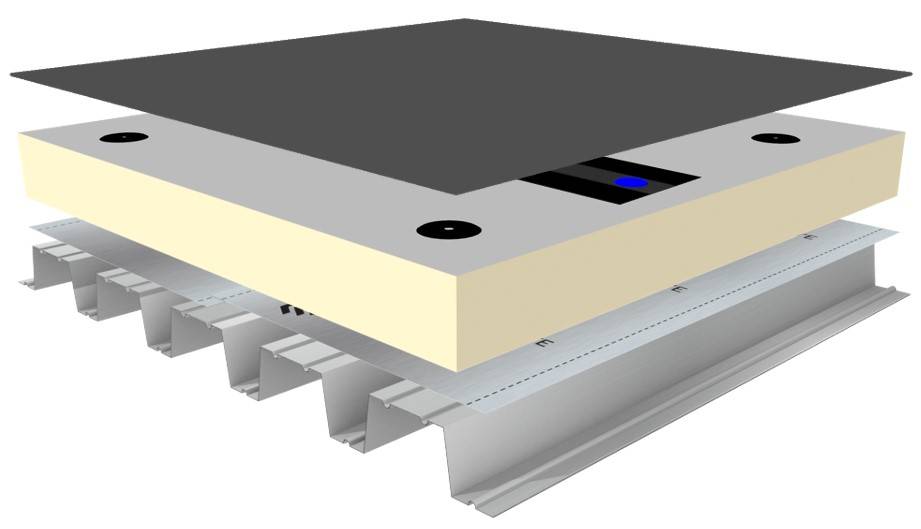

A lightweight, non-penetrating, mechanically attached EPDM warm roof system.
Application
Suitable for profiled metal deck applications and other deck types which provide sufficient anchorage for mechanical attachment.
Description
The RubberGard™ EPDM RMA System is a lightweight, non-penetrating mechanically attached system developed around the QuickSeam™ RMA strip: a strip of reinforced EPDM membrane incorporating two strips of self-adhesive QuickSeam™ Splice Tape laminated along each edge over the length of the strip.
Features and benefits:
- Non-penetrating.
- Use of large EPDM sheets.
- Fewer seams.
- Fast coverage.
- Lightweight system.
- Aesthetics.
- High wind uplift performance.
- Safe, flame-free installation.
System components:
- RubberGard™ EPDM LSFR.
- QuickSeam™ RMA strip.
- ISOGARD™ AK PIR Insulation.
- ISOGARD™ MG PIR Insulation.
- RESISTA™ AK PIR Insulation.
- RESISTA™ MG PIR Insulation.
- Air and vapour control layer.
- Bonding Adhesive BA-2012 (for vertical membrane application).
General information
Color | Black |
Finish | Smooth |
Material | Rubber Polyisocyanurate (PIR) |
Shape | Rectangle |
Length | 30500 mm |
Width | 3050 mm 6100 mm 9150 mm |
Height | 1.1 mm 1.5 mm |
Warranty description | Ten year 15 year 20 year |
Uniclass | |
CAWS | J42/10 Warm deck roof covering J42/110 Warm deck roof covering |
Specification data - Single layer sheet warm roof covering systems
Preparation | |
Horizontal work | The substrate will be securely fixed, clean, dry, smooth and free of contaminants such as greases, animal fats, coal tar and oil-based products. All sharp edges, nibs and rough surfaces which could damage the membrane will be removed or otherwise isolated. |
Air and vapour control layer | |
Type | Elevate V-Gard ALU 1500 self-adhesive air and vapour control layer.Elevate V-Gard PE 200 air and vapour control layer.Elevate V-Gard PE 200 E air and vapour control layer.Elevate V-Gard PE 400 air and vapour control layer.Manufacturer guidanceV-Gard ALU 1500 Use where insulation layer is to be mechanically attached through the AVCL. Self-adhesive to approved substrates (wood, steel). V-Gard PE 200, V-Gard PE 200 E, V-Gard PE 400 Use where insulation layer is to be mechanically attached through the AVCL (low humidity class buildings only). Loose laid over the approved substrate, joints are taped using V-Gard PE Seam Tape. |
Attachment | As type. |
Insulation | |
Type | ISOGARD AK PIR Insulation.Guidance for specification option: Thermal conductivity: 0.023 W/m.K. Thickness: 30–160 mm. Insert requirements. Elevate ISOGARD AK insulation board consists of a closed-cell polyiso (PIR) foam core laminated on both sides to a gastight multi-layered aluminium complex. ISOGARD MG PIR Insulation.Guidance for specification option: Thermal conductivity: 0.025–0.028 W/m.K. Thickness: 30–160 mm. Insert requirements. Elevate ISOGARD MG insulation board consists of a closed-cell polyiso (PIR) foam core laminated on both sides to a gasopen mineral glassfibre facer. RESISTA AK PIR Insulation.Guidance for specification option: As per Fully Adhered Warm Roof System spec. Thermal conductivity: 0.023 W/m.K. Thickness: 30–160 mm. Insert requirements. Elevate RESISTA AK insulation board consists of a closed-cell polyiso (PIR) foam core laminated on both sides to a gastight multi-layered aluminium complex. RESISTA MG PIR Insulation.Guidance for specification option: As per Fully Adhered Warm Roof System spec. Thermal conductivity: 0.025–0.028 W/m.K. Thickness: 30–160 mm. Insert requirements. Elevate RESISTA MG insulation board consists of a closed-cell polyiso (PIR) foam core laminated on both sides to a gasopen mineral glassfibre facer. Manufacturer guidanceConsult the manufacturer's Technical Services Department for R-Value/U-value calculations as required. |
Attachment | Insulation plates and fasteners.Guidance for specification option: The fastening pattern is chosen in line with the manufacturer's installation guidelines and to accommodate for wind loading. |
Waterproof covering | |
Type | RubberGard™ EPDM LSFR Roofing Membrane 1.1 mm.RubberGard™ EPDM LSFR Roofing Membrane 1.5 mm.Manufacturer guidance100% cured non-reinforced, Ethylene-Propylene-Diene Terpolymer (EPDM) synthetic rubber, manufactured in an ISO 9001 and ISO 14001 registered facility. Minimum unspliced width of 3.05 m. Specification compliance: UL Classified/ FM Approved. ASTM D 4637/ EN 13956 (CE Mark). 7500 hrs of Artificial Ageing as per EN 1297. |
Attachment | QuickSeam RMA strip.Guidance for specification option: Secured to the steel deck using approved plates/batten bars and fasteners. Spacing of the plates and/or fasteners differs to accommodate for wind loadings and are positioned according to the parameters of the wind load calculation based on local or international standards. |
Joints | Lap splices: 100 mm minimum overlap with 76 mm QuickSeam Splice Tape. |
Surface protection | QuickSeam Walkway Pads.Guidance for specification option: 760 x 760 mm high quality rubber pads with QuickSeam Tape factory laminated to the bottom. They are used for protection of the Elevate RubberGard EPDM membrane in areas of regular roof traffic (periodical maintenance around mechanical equipment, access doors, etc.). |
System accessories | QuickSeam Splice Tape.QuickSeam FormFlash.QuickSeam Flashing.QuickSeam SA Flashing.QuickSeam Reinforced Perimeter Fastening Strip.QuickSeam Universal Pipe Flashing.QuickSeam Conduit Flashing.QuickSeam Penetration Pocket.QuickSeam Walkway Pad.QuickPrime Plus.Lap Sealant HS.All Purpose (AP) Fasteners.Heavy Duty (HD) Fasteners.Splice Wash (SW-100).Cleaner C-20.Water-Block Seal (S-20).Pourable Sealer S-10 (Parts A & B).Coiled Metal Batten Strip.Metal Batten Strip.Termination Bar. |
Corners | QuickSeam FormFlash (external corners) and folded internal corners. |
Pipes | Pipe penetrations: QuickSeam FormFlash. Pipe penetrations: QuickSeam Pipe boots and Conduit Flashing. |
Outlets | Drains: Install Water Block Sealant between membrane and outlet bowl. Secure membrane mechanically to outlet using integral clamping ring. Drains: Insert outlet bedded on Water Block Sealant. Secure and flash with QuickSeam FormFlash or SA Flashing. |
Walls | Wall terminations: Termination bar, fastened with Water Block Sealant and Lap Sealant HS installed along top edge. Guidance for specification option: @200mm (maximum) o.c. Wall terminations: Metal batten bar fastened with surface mounted or inserted metal counter flashing protection. Guidance for specification option: @150mm (maximum) o.c. Wall terminations: Metal capping or concrete coping stones. Wall termination: Preformed metal edge trim. Guidance for specification option: An appropriate metal edge trim will be prefabricated and installed with fasteners @ maximum 100 mm centres. The edge trim will be sealed with QuickSeam Flashing. |
Sustainability data
Country of product manufacture | United States |
Material | Rubber Polyisocyanurate (PIR) |
Recyclability | An Environmental Product Declaration (EPD) is available upon request. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications

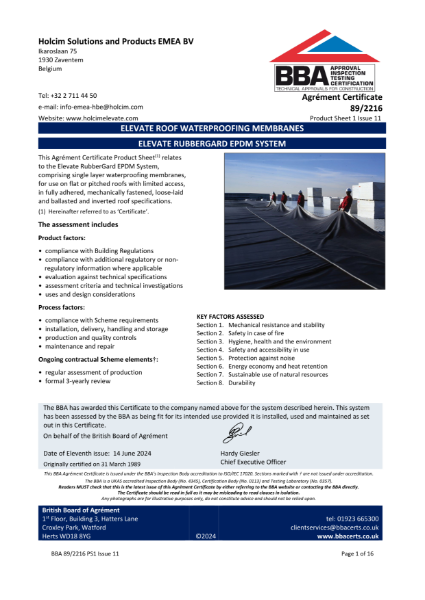

BBA Agrément Certificate
