Rhenofol® Single Ply Roofing System for Green Roofs And Roof Terraces
Verified by manufacturer 4 days ago
BBA Agrément Certificate
Certificate type
A ballasted, single ply membrane warm roof system.
Application
Suitable for low slope/ flat roofs where the roof slope does not exceed 10% and the roof deck and structure are of sufficient load bearing capacity.
Description
The Rhenofol® Single Ply Roofing System - Ballasted System is suitable where the roof deck and structure are designed to take the additional weight of the required covering such as a green roof system or roof terrace surfacing.
Features and benefits:
- Suitable for unusual roof configurations.
- Lightweight system.
- Fast coverage.
- Aesthetics.
- High wind uplift performance.
System components:
- Rhenofol® CG Single Ply Roofing Membrane
- Rhenofol® CV Single Ply Roofing Membrane (for upstands)
- Rhenofol® C Unreinforced Detailing Membrane
- Rhenofol® 90° Inside Corners
- Rhenofol® 90° Outside Corners
- Rhenofol® Outside Corners for Roof Domes
- Rhenofol® Universal Collar
- Rhenofol® Standing Seam Section
- Rhenofol® Metal Sheet Flashing
- FDT Fixing Section
- Rhenofol® Cold Welding Agent (THF)
- Rhenofol® Thinner D
- Rhenofol® Paste
- Rhenofol® Contact Adhesive 20
- FDT Roofing Membrane Adhesive
- FDT VarioGully. Vertical/ Angled
- FDT Collar for VarioGully
- FDT VarioGully Vertical Reducer 125mm-100mm
- FDT emergency overflow drain connection piece 50mm/ 110mm
- FDT gravel / leaf guard
- FDT screw-in gravel / leaf guard retainer ring
- FDT oval sealing ring
- FDT roll ring
- FDT screwing aid
- FDT rainwater outlet
- FDT leaf guard
- FDT lip seal
- FDT parapet outlet
- FDT emergency overflow drain
- FDT support surround
- Elevate RESISTA AK insulation
- V-GARD ALU1500 Air & Vapour Control Layer
General information
Color | Grey |
Finish | Smooth |
Material | Polyvinyl chloride (PVC) |
Shape | Rectangle |
Length | 20000 mm 15000 mm |
Width | 2050 mm |
Height | 1.2 mm 1.5 mm 1.8 mm 2.0 mm |
Warranty description | Ten year 20 year |
Uniclass | |
CAWS | J42/10 Warm deck roof covering J42/110 Warm deck roof covering |
Specification data - Single layer sheet warm roof covering systems
Classification data | |
Description | Single Ply Roofing System for Green Roofs And Roof Terraces. |
Air and vapour control layer | |
Type | V-GARD ALU1500 Air & Vapour Control Layer. |
Attachment | Self-adhesive. |
Insulation | |
Type | Elevate RESISTA AK insulation. |
Attachment | Manufacturer guidanceRESISTA AK must be installed using approved fasteners and plates or insulation adhesives. The number of fasteners per board needs to be determined based on a wind uplift calculation in accordance with local building codes and taking into account a minimum requirement by board size. Consult manufacturer for details and insert requirements. |
Waterproof covering | |
Type | Rhenofol® CG. Guidance for specification option: Synthetic PVC-P roofing membrane with glass fleece reinforcement and not compatible with bitumen. |
Attachment | FDT Roofing Membrane Adhesive. |
System accessories | Rhenofol® C Unreinforced Detailing Membrane Rhenofol® 90° Inside Corners Rhenofol® 90° Outside Corners Rhenofol® Outside Corners for Roof Domes Rhenofol® Universal Collar Rhenofol® Standing Seam Section Rhenofol® Metal Sheet Flashing FDT Fixing Section Rhenofol® Cold Welding Agent (THF) Rhenofol® Thinner D Rhenofol® Paste Rhenofol® Contact Adhesive 20 FDT VarioGully. Vertical/ Angled FDT Collar for VarioGully FDT VarioGully Vertical Reducer 125–100 mm FDT emergency overflow drain connection piece 50/ 110 mm FDT gravel / leaf guard FDT screw-in gravel / leaf guard retainer ring FDT oval sealing ring FDT roll ring FDT screwing aid FDT rainwater outlet FDT leaf guard FDT lip seal FDT parapet outlet FDT emergency overflow drain FDT support surround. |
Thickness | 1.2 mm. Guidance for specification option: Size: 20 m x 2.05 m. 1.5 mm. Guidance for specification option: Size: 15 m x 2.05 m. 1.8 mm. Guidance for specification option: Size: 15 m x 2.05 m. 2.0 mm. Guidance for specification option: Size: 15 m x 2.05 m. |
Sustainability data
Country of product manufacture | Germany |
Manufacturing plant location | |
Material | Polyvinyl chloride (PVC) |
Recyclability | Refer to EPD |
Expected Life | 35 year |
Product certifications
BBA Agrément Certificate
Rhenofol PVC Roof Covering System
CPD materials

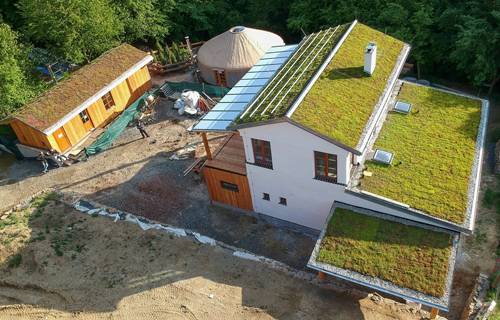

Designing a Roof for Sustainability
