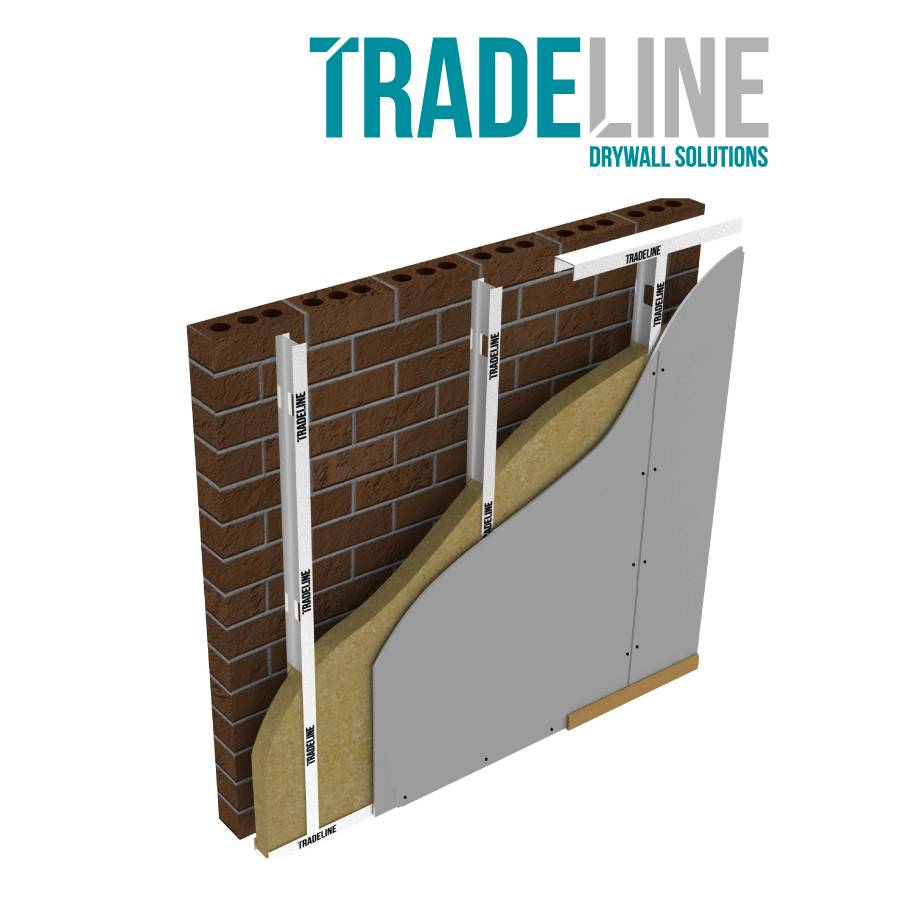

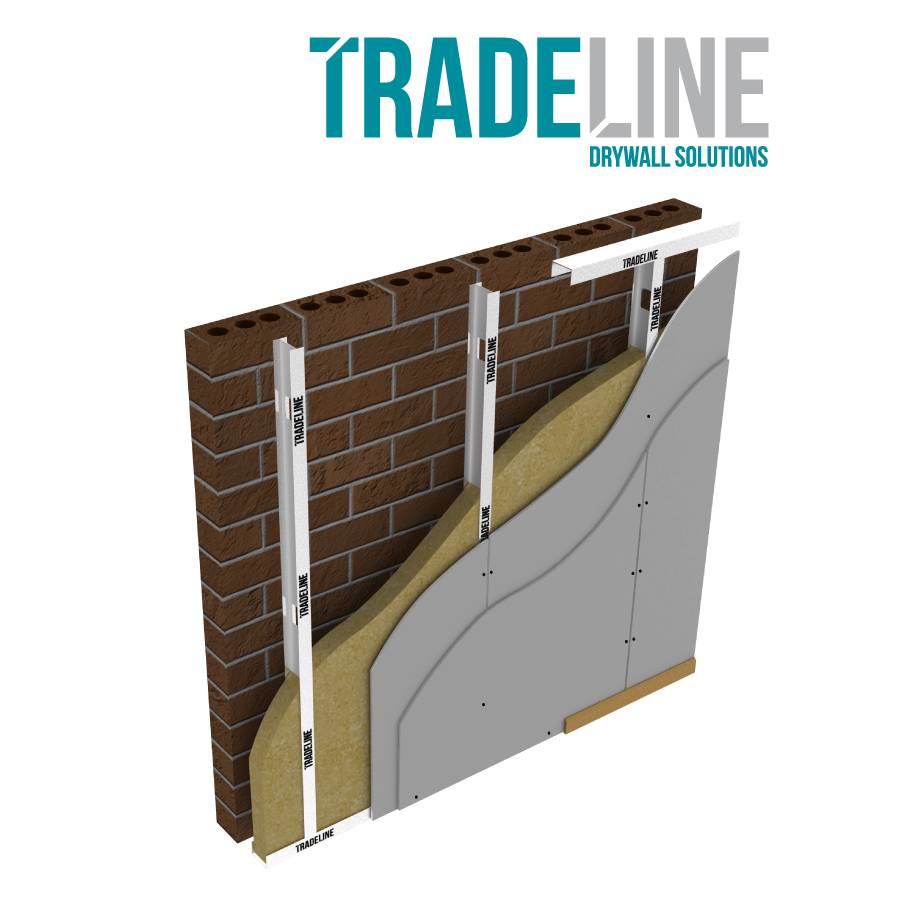

Name: TRADELINE Independent Wall liner System Utilising British Gypsum Gyproc Board
Brand: Metsec (voestalpine Metsec)
SKU: 7G1skjtD8W6gPwrCEBS7Ty

Material

Steel

Plasterboard

Guidance for specification option:

British Gypsum Gyproc.

Glass mineral wool

Width

Bespoke

Height

Bespoke

Guidance for specification option:

TRADELINE Independent Wall Lining can achieve a wide range of height requirements: up to 7.8 metres without any additional bracing to the structure (it can be braced back for greater heights).

Manufacturer guidance

TRADELINE Independent Wall Lining can achieve a wide range of height requirements: up to 7.8 metres without any additional bracing to the structure (it can be braced back for greater heights).

Uniclass

Ss_25_25_45_35 Gypsum board wall lining systemsPrimary

CAWS

K10/30 Metal stud

K10/155 Wall lining system (metal studs)

Damp-proof course

Manufacturer guidance

Insert requirements or omit.

The manufacturer recommends ensuring the substrate is sound and free of any damp prior to installing the Tradeline independent wall lining system.

Support

50 mm I-Stud (PI50) with standard track (PT52).

50 mm I-Stud (PI50) with standard track (32 mm leg, PDT52).

50 mm I-Stud (PI50) with standard track (50 mm leg, TPEDT52).

Manufacturer guidance

I-Stud: 38 mm flange; available in 2700, 3000 and 3600 mm lengths.

Track supplied in 3000 mm lengths as standard.

Tradeline I-Studs can be spliced together to create longer lengths using a 600-mm length of the appropriate sized Tradeline deep track and fixed with four Tradeline wafer head screws to each flange.

Insulation

Not required.

25 mm-thick glass mineral wool.

50 mm-thick glass mineral wool.

Linings

Inner layers

BG Gyproc 15 mm DuraLine.

Guidance for specification option:

Maximum height (studs at 600 mm centres): 2400 mm.

BG Gyproc 12.5 mm FireLine.

Guidance for specification option:

Maximum height (studs at 600 mm centres):

With inner layer only: 2400 mm.
With inner and face layer: 2700 mm.

BG Gyproc 15 mm FireLine.

Guidance for specification option:

Maximum height (studs at 600 mm centres):

With inner layer only: 2400 mm.
With inner and face layer: 2700 mm.

BG Gyproc 12.5 mm SoundBloc.

Guidance for specification option:

Maximum height (studs at 600 mm centres):

With inner layer only: 2400 mm.
With inner and face layer: 2700 mm.

BG Gyproc 15 mm SoundBloc.

Guidance for specification option:

Maximum height (studs at 600 mm centres):

With inner layer only: 2400 mm.
With inner and face layer: 2700 mm.

BG Gyproc 12.5 mm WallBoard.

Guidance for specification option:

Maximum height (studs at 600 mm centres):

With inner layer only: 2400 mm.
With inner and face layer: 2700 mm.

BG Gyproc 15 mm WallBoard.

Guidance for specification option:

Maximum height (studs at 600 mm centres):

With inner layer only: 2400 mm.
With inner and face layer: 2700 mm.

Manufacturer guidance

Maximum heights calculated based on a limiting deflection of L/240 at 200 Pa.

Consult manufacturer for details of 400 mm centre configurations.

Face layer

To match inner layer.

Guidance for specification option:

For severe duty rating.

Not applicable for BG Gyproc 15 mm DuraLine.

Not required/ not applicable.

Guidance for specification option:

Single -layer build-ups provide medium or heavy duty ratings (see individual face layer guidance for details).

Fasteners

Tradeline drywall screws.

Guidance for specification option:

Consult manufacturer's fixing and finishing solutions literature for options and insert requirements.

Joint treatment

Tradeline Joint Tape.

Tradeline Paper Joint Tape.

Tradeline Light Weight All Purpose Joint Compound.

Tradeline Metal Corner Tape.

Tradeline Flexible Metal Corner Tape.

Tradeline Scrim Tape.

Tradeline Drywall Self-Adhesive Joint Tape.

Finish

Manufacturer guidance

Insert requirements or omit.

System accessories

Tradeline Acoustic Intumescent Sealant.

Tradeline PB24 Partition Brace.

Tradeline FS24 Flat Bracing Strip.

Tradeline ASP19B Plywood Service Support Plates.

Integral accessories

Tradeline C-Studs.

Guidance for specification option:

For wall abutments, internal and external corners; size to correspond to I-Stud specified.

Size (w x h)

Manufacturer guidance

Insert requirements for nominal width and height.

Maximum height dependent on stud and panel type/ configuration - see Inner layer guidance for details.

Material	Steel Plasterboard Guidance for specification option: British Gypsum Gyproc. Glass mineral wool
Width	Bespoke
Height	Bespoke Guidance for specification option: TRADELINE Independent Wall Lining can achieve a wide range of height requirements: up to 7.8 metres without any additional bracing to the structure (it can be braced back for greater heights). Manufacturer guidance TRADELINE Independent Wall Lining can achieve a wide range of height requirements: up to 7.8 metres without any additional bracing to the structure (it can be braced back for greater heights).

Damp-proof course	- Manufacturer guidance Insert requirements or omit. The manufacturer recommends ensuring the substrate is sound and free of any damp prior to installing the Tradeline independent wall lining system.
Support	50 mm I-Stud (PI50) with standard track (PT52). 50 mm I-Stud (PI50) with standard track (32 mm leg, PDT52). 50 mm I-Stud (PI50) with standard track (50 mm leg, TPEDT52). Manufacturer guidance I-Stud: 38 mm flange; available in 2700, 3000 and 3600 mm lengths. Track supplied in 3000 mm lengths as standard. Tradeline I-Studs can be spliced together to create longer lengths using a 600-mm length of the appropriate sized Tradeline deep track and fixed with four Tradeline wafer head screws to each flange.
Insulation	Not required. 25 mm-thick glass mineral wool. 50 mm-thick glass mineral wool.
Linings	-
Inner layers	BG Gyproc 15 mm DuraLine. Guidance for specification option: Maximum height (studs at 600 mm centres): 2400 mm. BG Gyproc 12.5 mm FireLine. Guidance for specification option: Maximum height (studs at 600 mm centres): With inner layer only: 2400 mm. With inner and face layer: 2700 mm. BG Gyproc 15 mm FireLine. Guidance for specification option: Maximum height (studs at 600 mm centres): With inner layer only: 2400 mm. With inner and face layer: 2700 mm. BG Gyproc 12.5 mm SoundBloc. Guidance for specification option: Maximum height (studs at 600 mm centres): With inner layer only: 2400 mm. With inner and face layer: 2700 mm. BG Gyproc 15 mm SoundBloc. Guidance for specification option: Maximum height (studs at 600 mm centres): With inner layer only: 2400 mm. With inner and face layer: 2700 mm. BG Gyproc 12.5 mm WallBoard. Guidance for specification option: Maximum height (studs at 600 mm centres): With inner layer only: 2400 mm. With inner and face layer: 2700 mm. BG Gyproc 15 mm WallBoard. Guidance for specification option: Maximum height (studs at 600 mm centres): With inner layer only: 2400 mm. With inner and face layer: 2700 mm. Manufacturer guidance Maximum heights calculated based on a limiting deflection of L/240 at 200 Pa. Consult manufacturer for details of 400 mm centre configurations.
Face layer	To match inner layer. Guidance for specification option: For severe duty rating. Not applicable for BG Gyproc 15 mm DuraLine. Not required/ not applicable. Guidance for specification option: Single -layer build-ups provide medium or heavy duty ratings (see individual face layer guidance for details).
Fasteners	Tradeline drywall screws. Guidance for specification option: Consult manufacturer's fixing and finishing solutions literature for options and insert requirements.
Joint treatment	Tradeline Joint Tape. Tradeline Paper Joint Tape. Tradeline Light Weight All Purpose Joint Compound. Tradeline Metal Corner Tape. Tradeline Flexible Metal Corner Tape. Tradeline Scrim Tape. Tradeline Drywall Self-Adhesive Joint Tape.
Finish	- Manufacturer guidance Insert requirements or omit.
System accessories	Tradeline Acoustic Intumescent Sealant. Tradeline PB24 Partition Brace. Tradeline FS24 Flat Bracing Strip. Tradeline ASP19B Plywood Service Support Plates.

Integral accessories	Tradeline C-Studs. Guidance for specification option: For wall abutments, internal and external corners; size to correspond to I-Stud specified.
Size (w x h)	- Manufacturer guidance Insert requirements for nominal width and height. Maximum height dependent on stud and panel type/ configuration - see Inner layer guidance for details.
