Lining and casing systems
Find and specify lining and casing systems from top manufacturers with NBS Source. Browse 299 products that are ready to use on your projects. Classification Ss_25_25_45.
Can't find what you're looking for?
Industry averages:BETA
Recently verified
Showing 1-36 of 299
ASB System 40
Verified 3 days ago

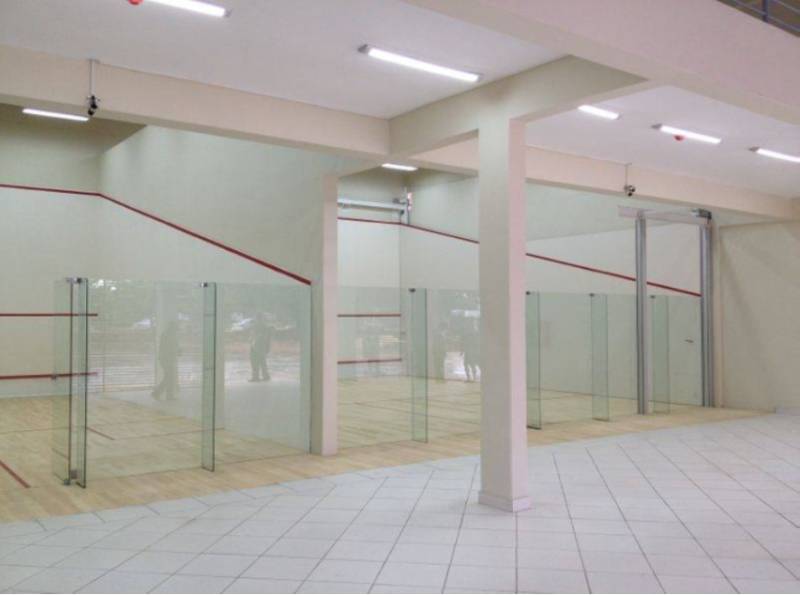

DYNAMIK Sports Flooring
A squash court wall system.
HD1057 Hush Wall System On Existing Masonry - Acoustic Wall System
Verified 5 days ago
Hush Acoustics
Acoustic wall system designed to line existing block or masonry walls.
GypLyner Independent - B216027 (C) (EN)
Verified 5 days ago
British Gypsum
Two layers of Gyproc FireLine 12.5mm to one side of Gypframe 60 I 70 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 3600mm.
GypLyner Single - TL-Universal (D) (EN)
Verified 5 days ago
British Gypsum
Solid masonry background with Gypframe GL1 Lining Channel framework fixed to one side with a cavity between 25mm to 125mm clad with one layer of Gyproc ThermaLine PIR 78mm
GypLyner Independent - B216027 (B) (EN)
Verified 5 days ago
British Gypsum
Two layers of Gyproc FireLine 12.5mm to one side of Gypframe 60 I 50 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 3000mm.
GypLyner Independent - B216026 (F) (EN)
Verified 5 days ago
British Gypsum
One layer of Gyproc FireLine 15mm to one side of Gypframe 146 I 80 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 4000mm.
GypLyner Independent - GIWL 92 I 90 PIR (B) (EN)
Verified 5 days ago
British Gypsum
One layer of Gyproc ThermaLine PIR 38mm to one side of Gypframe 92 I 90 ‘I’ Stud framework forming an independent lining to masonry background. For heights up to 5100mm.
GypLyner Independent - B216027 (E) (EN)
Verified 5 days ago
British Gypsum
Two layers of Gyproc FireLine 12.5mm to one side of Gypframe 92 I 90 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 4000mm.
GypLyner Independent - B216003 (F) (EN)
Verified 5 days ago
British Gypsum
Two layers of Gyproc WallBoard 12.5mm to one side of Gypframe 146 I 80 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 4000mm.
DriLyner Dab - RF-PIR (A) (EN)
Verified 5 days ago
British Gypsum
One layer of Gyproc ThermaLine PIR 38mm on Gyproc Sealant (3mm nominal cavity) on existing plastered walls, level brick, block or fair faced concrete.
GypLyner Independent - GIWL 48 I 50 PIR (D) (EN)
Verified 5 days ago
British Gypsum
One layer of Gyproc ThermaLine PIR 78mm to one side of Gypframe 48 I 50 ‘I’ Stud framework forming an independent lining to masonry background. For heights up to 2400mm.
GypLyner Independent - GIWL 146 I 80 PIR (B) (EN)
Verified 5 days ago
British Gypsum
One layer of Gyproc ThermaLine PIR 38mm to one side of Gypframe 146 I 80 ‘I’ Stud framework forming an independent lining to masonry background. For heights up to 6900mm.
GypLyner Independent - B216027 (F) (EN)
Verified 5 days ago
British Gypsum
Two layers of Gyproc FireLine 12.5mm to one side of Gypframe 146 I 80 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 4000mm.
GypLyner Independent - B216004 (C) (EN)
Verified 5 days ago
British Gypsum
Two layers of Gyproc WallBoard 15mm to one side of Gypframe 60 I 70 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 3900mm.
DriLyner Dab - BASIC (B) (EN)
Verified 5 days ago
British Gypsum
One layer of Gyproc WallBoard 12.5mm on Gyproc DriWall Adhesive dabs (10mm nominal cavity) on solid masonry background
GypLyner Single - TL-Universal (C) (EN)
Verified 5 days ago
British Gypsum
Solid masonry background with Gypframe GL1 Lining Channel framework fixed to one side with a cavity between 25mm to 125mm clad with one layer of Gyproc ThermaLine PIR 63mm
GypLyner Independent - B216003 (A) (EN)
Verified 5 days ago
British Gypsum
Two layers of Gyproc WallBoard 12.5mm to one side of Gypframe 48 I 50 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 2700mm.

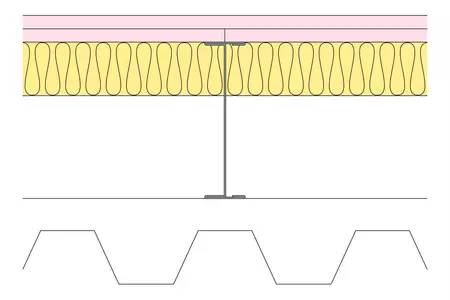

GypLyner Independent - B216028 (F) (EN)
Verified 5 days ago
British Gypsum
Two layers of Gyproc FireLine 15mm to one side of Gypframe 146 I 80 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 4000mm.
GypLyner Independent - B216006 (A) (EN)
Verified 5 days ago
British Gypsum
Two layers of Gyproc SoundBloc 15mm to one side of Gypframe 48 I 50 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 2800mm.

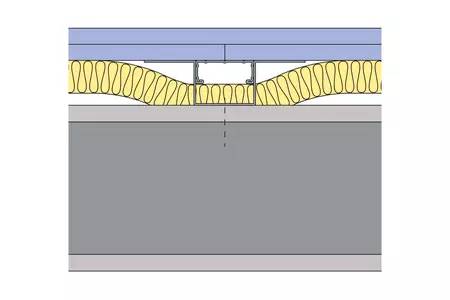

GypLyner Single - B226003 (EN)
Verified 5 days ago
British Gypsum
100mm solid block wall of density 1700 kg/m³ with 13mm plaster each side and Gypframe GL1 Lining Channel framework fixed to one side to give 35mm cavity with 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity clad with two layers of Gyproc SoundBloc 12.5mm.
DriLyner Dab - TL-PIR (B) (EN)
Verified 5 days ago
British Gypsum
One layer of Gyproc ThermaLine PIR 53mm on Gyproc DriWall Adhesive dabs (10mm nominal cavity) on solid masonry background
DriLyner Dab - RF-PIR (B) (EN)
Verified 5 days ago
British Gypsum
One layer of Gyproc ThermaLine PIR 53mm on Gyproc Sealant (3mm nominal cavity) on existing plastered walls, level brick, block or fair faced concrete.
GypLyner Independent - B216028 (C) (EN)
Verified 5 days ago
British Gypsum
Two layers of Gyproc FireLine 15mm to one side of Gypframe 60 I 70 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 3900mm.
GypLyner Independent - B216006 (B) (EN)
Verified 5 days ago
British Gypsum
Two layers of Gyproc SoundBloc 15mm to one side of Gypframe 60 I 50 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 3300mm.
GypLyner Independent - B216005 (E) (EN)
Verified 5 days ago
British Gypsum
Two layers of Gyproc SoundBloc 12.5mm to one side of Gypframe 92 I 90 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 4000mm.
DriLyner Dab - TL-PLUS (A) (EN)
Verified 5 days ago
British Gypsum
One layer of Gyproc ThermaLine Plus 27mm on Gyproc DriWall Adhesive dabs (10mm nominal cavity) on solid masonry background
DriLyner Dab - RF-PIR (D) (EN)
Verified 5 days ago
British Gypsum
One layer of Gyproc ThermaLine PIR 78mm on Gyproc Sealant (3mm nominal cavity) on existing plastered walls, level brick, block or fair faced concrete.
GypLyner Independent - GIWL 48 I 50 PIR (C) (EN)
Verified 5 days ago
British Gypsum
One layer of Gyproc ThermaLine PIR 63mm to one side of Gypframe 48 I 50 ‘I’ Stud framework forming an independent lining to masonry background. For heights up to 2400mm.
GypLyner Independent - B216025 (F) (EN)
Verified 5 days ago
British Gypsum
One layer of Gyproc FireLine 12.5mm to one side of Gypframe 146 I 80 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 4000mm.

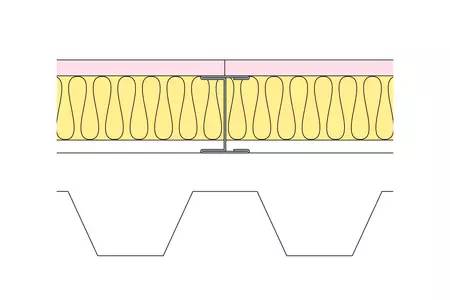

GypLyner Independent - B216026 (B) (EN)
Verified 5 days ago
British Gypsum
One layer of Gyproc FireLine 15mm to one side of Gypframe 60 I 50 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 2700mm.
GypLyner Independent - B216025 (D) (EN)
Verified 5 days ago
British Gypsum
One layer of Gyproc FireLine 12.5mm to one side of Gypframe 70 I 70 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 3600mm.
GypLyner Independent - B216025 (B) (EN)
Verified 5 days ago
British Gypsum
One layer of Gyproc FireLine 12.5mm to one side of Gypframe 60 I 50 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 2400mm.

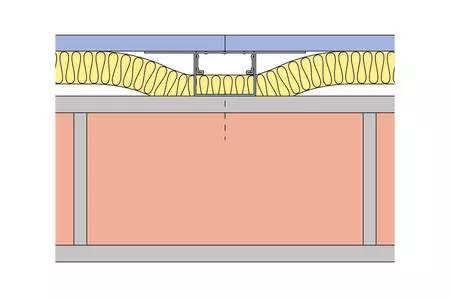

GypLyner Single - B226008 (A) (EN)
Verified 5 days ago
British Gypsum
103mm solid brick wall of density 1700 kg/m³ with 13mm plaster each side and Gypframe GL1 Lining Channel framework fixed to one side to give 35mm cavity with 25mm Isover Acoustic Partition Roll (APR 1200) in the cavity clad with one layer of Gyproc SoundBloc 12.5mm.
GypLyner Independent - B216003 (C) (EN)
Verified 5 days ago
British Gypsum
Two layers of Gyproc WallBoard 12.5mm to one side of Gypframe 60 I 70 ‘I’ Stud framework with 50mm Isover Steel Frame Infill Batts between studs forming an independent lining to structural steel columns, in association with external steel cladding (0.6mm). For heights up to 3600mm.
DriLyner Dab - BASIC (F) (EN)
Verified 5 days ago
British Gypsum
One layer of Gyproc WallBoard 15mm on Gyproc DriWall Adhesive dabs (10mm nominal cavity) on solid smooth concrete
DriLyner Dab - BASIC (E) (EN)
Verified 5 days ago
British Gypsum
One layer of Gyproc SoundBloc 12.5mm on Gyproc DriWall Adhesive dabs (10mm nominal cavity) on solid masonry background
Showing 1-36 of 299
