SPEEDLINE Wall liner System Utilising Siniat Board

Verified by manufacturer 2 months ago

Metsec (voestalpine Metsec) Third party certifications:
  • BES 6001

    BES 6001

    Certificate type

  • BSI Kitemark

    BSI Kitemark

    Certificate type

  • EPD

    EPD

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

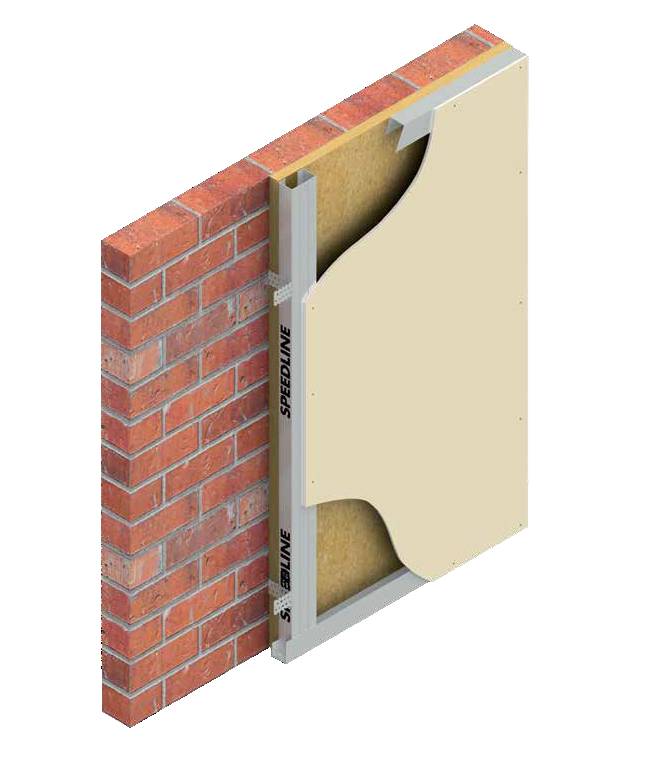

Wall lining system based on SPEEDLINE framing and Siniat boards.

Jump to:
+44 (0) 121 601 6000 Website

Application

Suitable for internal use in all commercial and domestic

applications, in the following sectors:

  • Residential.
  • Healthcare.
  • Education.
  • Commercial.
  • Retail.
  • Student accommodation.
  • Renovation Maintenance Improvement (RMI).

Description

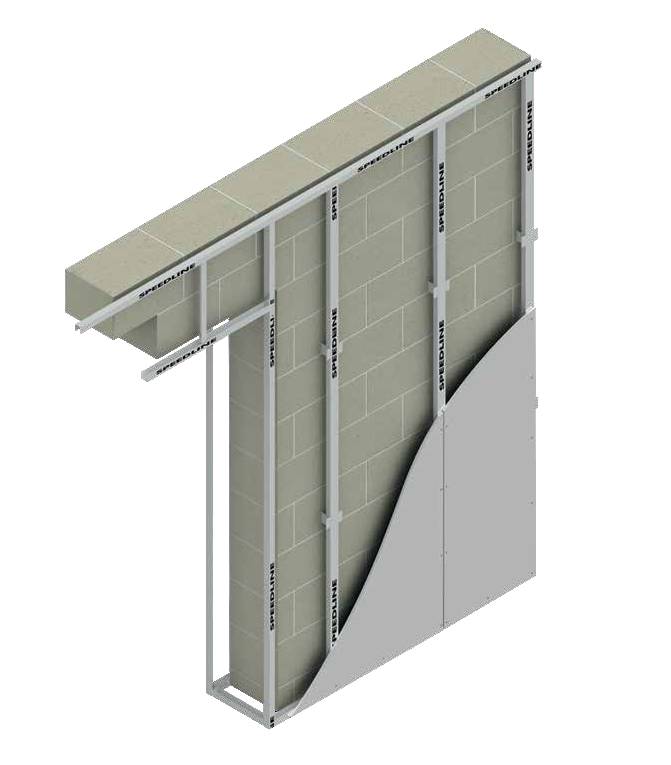

A completely dry wall lining system based on SPEEDLINE framing and Siniat boards.


Features and benefits:

  • Completely dry system using secure mechanical fixings.
  • Quick, simple and cost-effective to use; suitable for internal use in all commercial and domestic applications.
  • Can be used to provide a lining onto most masonry backgrounds, uneven walls and for concealing services within the cavity.
  • Range of fixing brackets available, cavities from 25 mm up to 180 mm can be formed.
  • Can be used to improve sound insulation properties of the substrate.
  • With the addition of Speedline thermal laminates, thermal performance of the substrate can be improved.
  • Also available as a system based on British Gypsum Gyproc or Knauf boards (specified separately).
  • Can be used where plaster or direct bond systems are not suitable.
  • Provides a flat, level surface whilst dealing with background irregularities.
  • Medium to heavy fixtures such as heating units, radiators, shelving and cupboards can be supported by a plywood pattress incorporated within the framing cavity.


Installation:

Prior to installation within older buildings, ensure the substrate is sound and free of any damp.

Consult manufacturer's literature for full details. Board lining is fixed at maximum 300 mm centres to all perimeters and intermediate wall liner using the appropriate length of Speedline drywall screw.

General information

Material

Steel

Plasterboard

Uniclass

Ss_25_25_45_35 Gypsum board wall lining systemsPrimary

CAWS

K10/165 Wall lining system (metal framing)

K10/35 Wall lining system (metal framing)

Product range

Drylining / SPEEDLINE Drywall Systems

Specification data - Gypsum board wall lining systems

Damp-proof course

-

Manufacturer guidance

Insert requirements or omit.

The manufacturer recommends ensuring the substrate is sound and free of any damp prior to installing the Speedline independent wall lining system.

Support

Wall/ ceiling liner (SWL507) with perimeter track (SWL60).

Guidance for specification option:

SWL507:

  • 0.5 mm thick steel.
  • Section: 45 x 18 mm.
  • Available in 2400, 2700, 3000 and 3600 mm lengths.
  • Typically installed at 600 mm centres; consult manufacturer for recommendations.
  • Friction-fitted into SWL60 perimeter track.

SWL60:

  • 0.5 mm thick steel.
  • Section (maximum): 28 x 19 mm.
  • 3000 mm lengths as standard.

Insulation

-

Manufacturer guidance

Insert requirements or omit.

Be aware that Speedline I-Stud is designed to hold insulation but also includes slots for routing of services.

Linings

-

Inner layers

To match face layer.

Not required.

Face layer

Siniat board.

Manufacturer guidance

Speedline thermal laminate board is also available to provide thermal insulation in a single application; consult manufacturer for details.

Fasteners

Speedline drywall screws.

Guidance for specification option:

Consult manufacturer's fixing and finishing solutions literature for options and insert requirements.

Joint treatment

Speedline Drywall Fibreglass Tape.

Speedline Ready Mix Joint Compound.

Speedline Corner Bead Tape.

Finish

-

Manufacturer guidance

Insert requirements or omit.

System accessories

Speedline Fire Rated Acoustic Sealant.

Speedline PB24 Partition Brace.

Speedline FS24 Flat Bracing Strip.

Speedline Service Support Plate.

Speedline Putty Pads.

Wall/ ceiling liner connector AWL05B.

Guidance for specification option:

Used to extend SWL507 wall liner sections where required.

Fixing brackets

Fixing bracket, 75 mm leg (AWL03B).

Fixing bracket, 125 mm leg (AWL04B).

Fixing bracket, 175 mm leg (AWL08B).

Manufacturer guidance

Typically installed at 800 mm centres; consult manufacturer for recommendations.
