Tonality Terracotta - Facade Panel

Verified by manufacturer 5 months ago

Pura Facades Ltd Third party certifications:
  • EPD

    EPD

    Certificate type

Terracotta facade tile.

Jump to:
+44 (0)203 269 2052 Website

Application

Terracotta façade tile

Description

Tonality terracotta tiles are a lightweight alternative to other terracotta products, with low dead weight of only 28–35 kg/m². Tonality use 100% Westerwald clay which is the highest quality on the market and offer all round durability (service life in excess of 35 years as per the BBA).


Produced using the Keralis sinter kiln firing process, we are able to offer a wide range of colours and textures.


Thanks to Tonality's sinter firing process the ceramic elements receive an even, smooth and dense surface. Chose from a variety of standard surface finishes and profiled tiles such as stripes, waves and grooved.


Tonality is also available in lamella, baguette and brise soleil shapes.


Features and benefits:

  • A1 Non combustible
  • BBA approved and Dibt tested
  • Best quality glazed tiles
  • Lightweight at only 28–35 kg/m²
  • All round durability
  • No long-term maintenance
  • Wide range of colours and textures
  • Lifelong colourfast and UV resistance

General information

Color

Cream

Grey

Red

Brown

Green

Show more

Finish

Textured

Matt

Other

Guidance for specification option:

Ferro and ferro light.

Anti-graffiti

Brushed

Show more

Material

Clay

Ceramic

Shape

Rectangle

Length

600 mm

400 mm

150 mm

Bespoke

Width

2000 mm

1600 mm

300 mm

Bespoke

Manufacturer guidance

Special size: width 110 - 302 mm

Height

22 mm

26 mm

Warranty description

Ten year

Uniclass

Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary

CAWS

H92/120 Rainscreen cladding

Specification data - Drained and back-ventilated rainscreen cladding systems

Thermal insulation

Guidance for specification option:

Insert requirements.

Only standardized or technically approved, type WAB (external thermal insulation for use beneath cladding) may be used in accordance with DIN 4108-10:2008-06 for thermal insulation in rear-ventilated rainscreen facades.

Manufacturer guidance

Facade insulation panels must be installed fitting tightly together in formation, between the substrate and insulation layer in accordance with structural standards or manufacturer’s specifications. They must be mechanically attached using insulation fasteners ('fixing pins‘) and must be tightly connected to adjacent building components.

Secondary support structure

Adaptive (ADS) fixing system.

Base Clinch (BAS) fixing system.

Cladding panels

-

Material

Terracotta panels.

Panel joints

2 mm.

8 mm.

Colour/ Finish:

-

Manufacturer guidance

An extensive range of colours from the Nature, Colours and Design collections are available, consult the literature for details and insert requirements.

Reaction to fire

To BS EN 13501-1: Class A1.

Size:

-

Manufacturer guidance

Bespoke sizes available. Consult manufacturer for details and insert requirements.

Thickness:

22 mm.

26 mm.

Type

Grooved.

Multiple pilaster strips.

Plain.

Single pilaster strip.

Stripes.

Show more

ShapeType

Lamella.

Baguette.

Brise soleil.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Material

Clay

Ceramic

Manufacturing plant location

Recyclability

100% recyclable

Third party certifications

Third party certifications

EPD

Tonality Terracotta EPD

Literature

TONALITY

TONALITY

Tonality Technical Data Sheet - Ceramic Slat

Tonality Technical Data Sheet - Ceramic Slat

Tonality Technical Data Sheet - 26mm

Tonality Technical Data Sheet - 26mm

Tonality Facade Planner

Tonality Facade Planner

Tonality Colour Chart

Tonality Colour Chart

Tonality Construction Process

Tonality Construction Process

Case studies

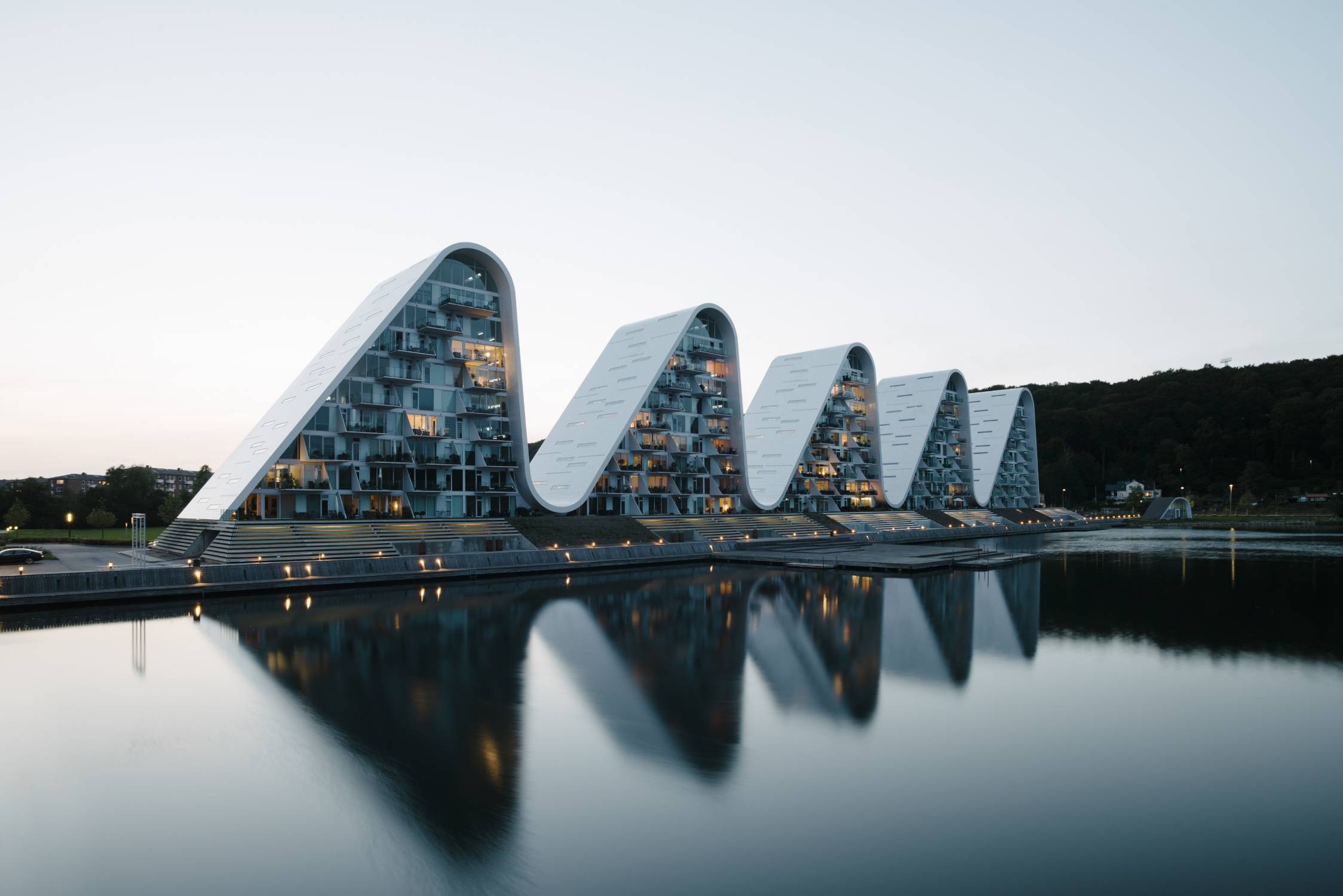

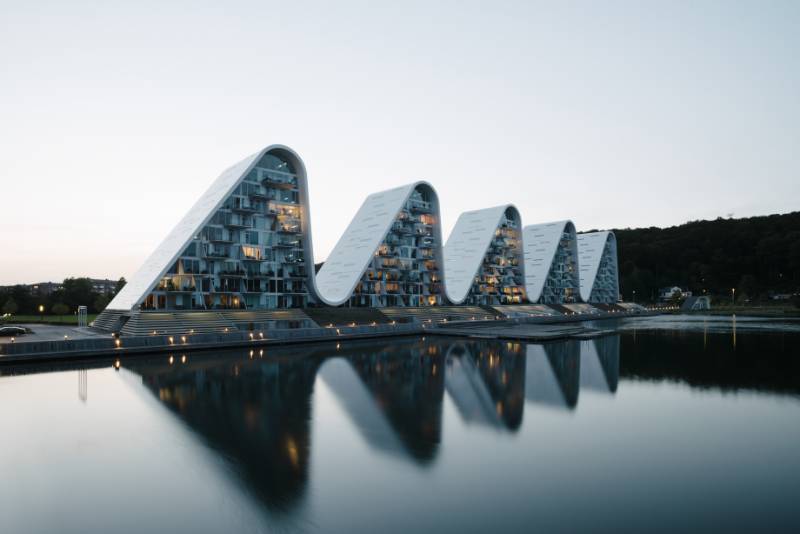

The Wave, Vejle

The Wave, Vejle

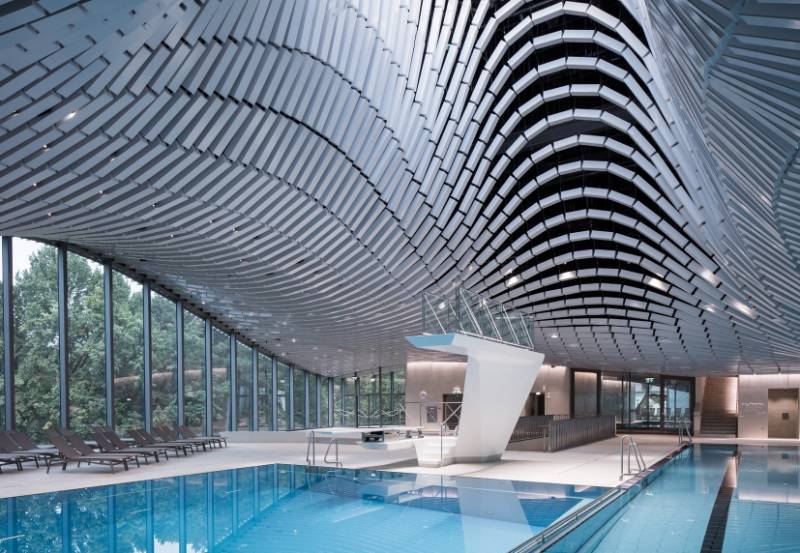

Paracelsus Bad Kurhaus, Salzburg

Paracelsus Bad Kurhaus, Salzburg
