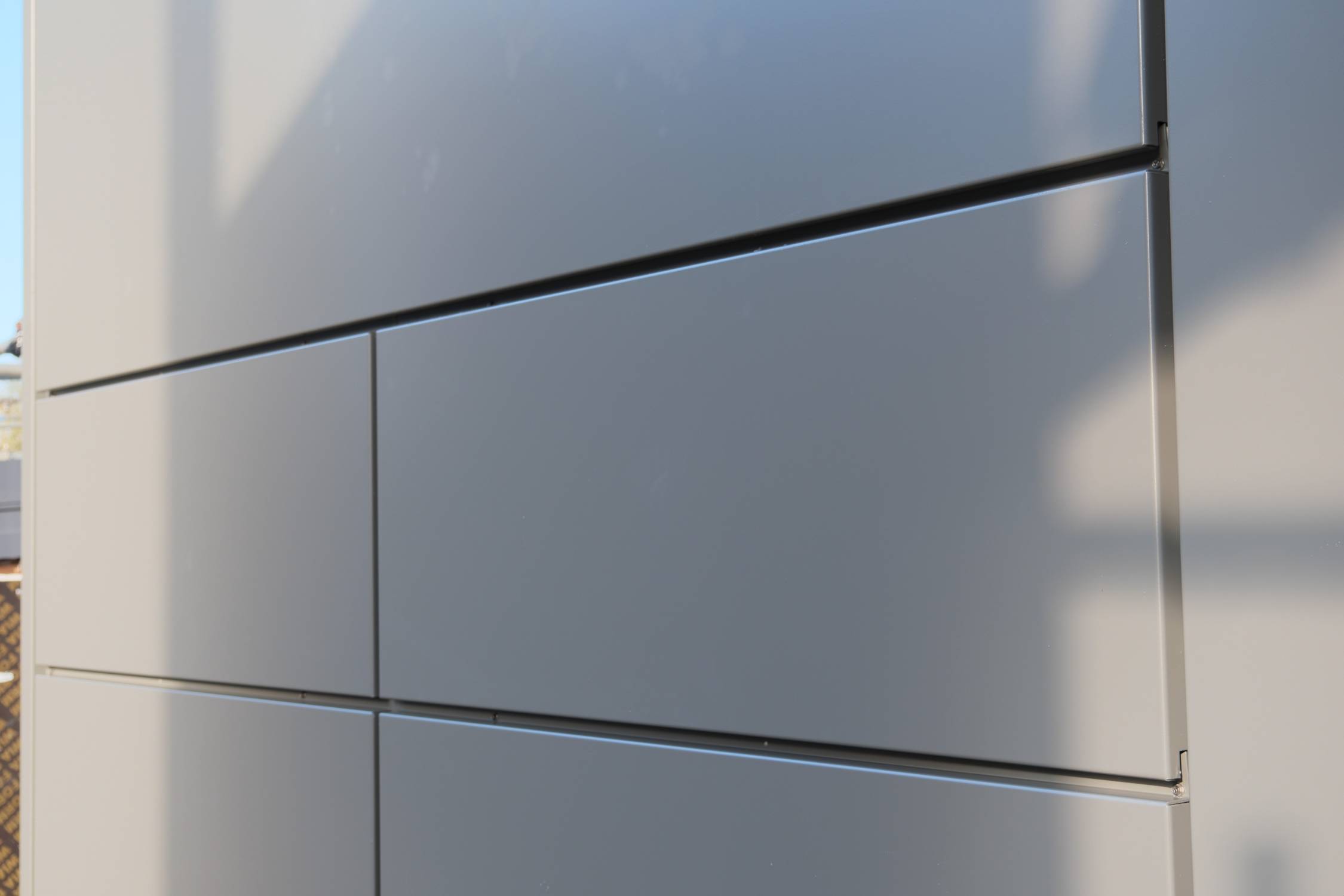

MetSkin Tray Panel Rainscreen system - Concealed Fix Tray Panel System

Verified by manufacturer 4 months ago

Pura Facades Ltd

A powder coated aluminium, concealed fix tray panel system.

Jump to:
+44 (0)203 269 2052 Website

Application

Rainscreen cladding, window cills, cappings, window pods, column encasements, spandrel panels, copings.

Description

The MetSkin tray panel system combines functionality and visual appeal. Each panel is securely attached to the substructure with discreet fixings, ensuring a seamless appearance and efficient installation. The panels can be customized in dimensions, shapes, and finishes, offering architects and designers creative flexibility for project-specific needs.


Discreet fixings maintain the facade’s clean lines and visual harmony. Although cost-effective, these fixings do not compromise on quality or aesthetics. Colour-matched fixings within recessed panel joints provide a seamless finish.


MetSkin panels, along with the appropriate support structure and ancillary items, can achieve A1 or A2 classification per EN 13501 standards.


Crafted from high-quality, corrosion-resistant aluminium, the façade system is designed for durability. Available finishes include anodized and powder-coated options to meet diverse design and environmental requirements.


Fully tested to CWCT standards at an accredited testing centre, the system withstands extreme weather conditions, ensuring long-term durability and appearance. The MetSkin cladding systems are fully drained and ventilated, meeting standard rainscreen requirements for optimal performance.


The tray panel system offers numerous features and benefits. It includes aesthetically flat tray panels with discreet fixings and employs mechanical fixing methods, ensuring a clean and seamless appearance.


The panels come in variable sizes to suit different project requirements, with maximum dimensions of 3440mm for portrait orientation and 3510mm for landscape orientation. Made from superior quality, recyclable materials, the system provides versatile design options and efficient installation processes. Additionally, a half rail profile option and various perforation patterns are available, enhancing the customization and adaptability of the system to meet diverse architectural needs.


General information

Color

Beige

Black

Blue

Bronze

Brown

Show more

Manufacturer guidance

Any RAL colour.

Finish

Powder-coated

Anodized

PVdF

Material

Aluminium

Shape

Rectangle

Square

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary

CAWS

H92/120 Rainscreen cladding

Specification data - Drained and back-ventilated rainscreen cladding systems

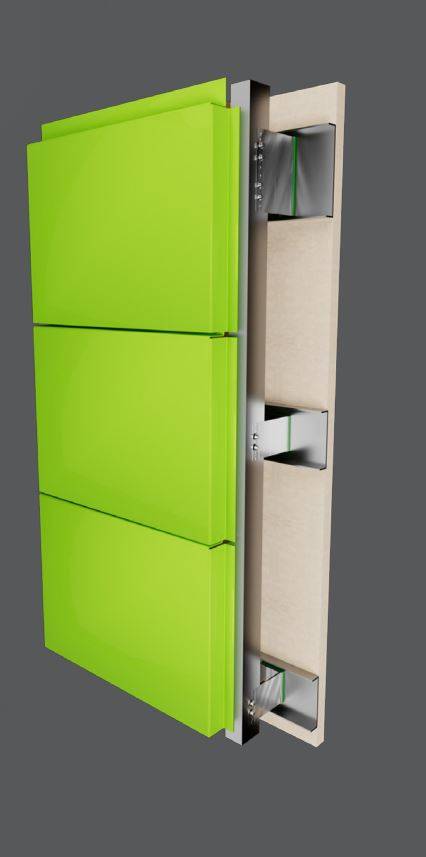

Secondary support structure

Aluminium carrier rails

Half rail profile.

Guidance for specification option:

Optional.

Cladding panels

-

Material

Aluminium cassette panels, 2 mm thick.

Aluminium cassette panels, 3 mm thick.

Panel joints

Narrow joints.

Colour/ Finish:

Anodized.

PVdF pre-coated.

Powder coated, RAL.

Guidance for specification option:

Available in any RAL colour, insert requirement.

Reaction to fire

To BS EN 13501-1: Class A1.

To BS EN 13501-1: Class A2.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Aluminium

Recyclability

Fully recyclable.

Literature

MetSkin Data Sheet

MetSkin Data Sheet
