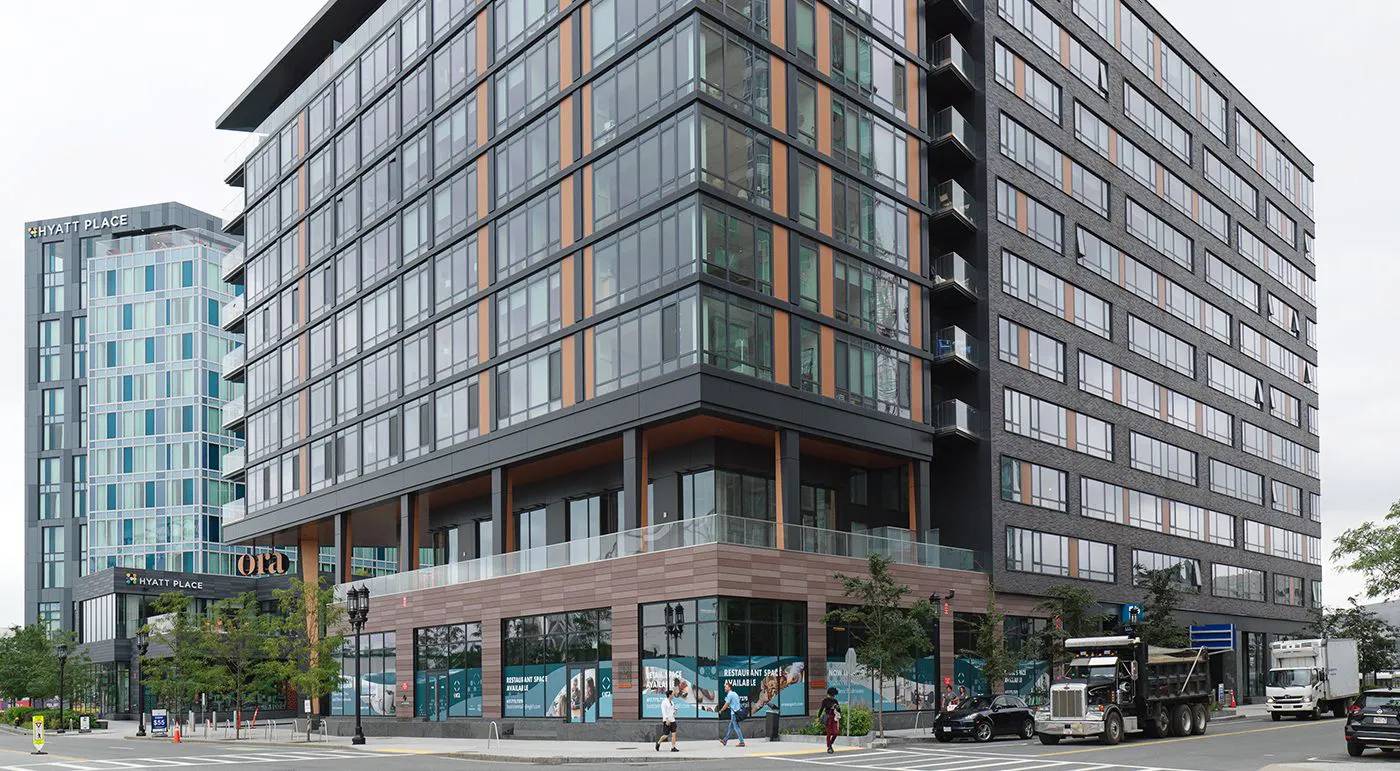

Rieder öko skin - Facade panel

Verified by manufacturer 4 months ago

Pura Facades Ltd Third party certifications:
  • EPD

    EPD

    Certificate type

Lightweight glass reinforced concrete plank (GRC).

Jump to:
+44 (0)203 269 2052 Website

Application

Facade rainscreen plank system.

Description

öko skin is easy to install and comes in a kit form. Each pack contains equal amounts of textured and smooth planks to create a visual interest and texture differential. This means the aesthetic is varied without having to use different colours.


öko skin – as aesthetic as wood, as sustainable as concrete.


öko skin planks are provided in a standard size of 147mm x 1800mm.


Features and benefits:

  • A1 non-combustible
  • No sanding or sealing required
  • Alternative to timber or brick
  • Textured and smooth finishes
  • Through-coloured glass-reinforced concrete
  • Durable and impact resistant
  • Simple installation
  • Standard or concealed fixing options available
  • BBA approved

General information

Color

Cream

Grey

Red

Brown

Green

Show more

Finish

Textured

Matt

Other

Guidance for specification option:

Ferro and ferro light.

Anti-graffiti

Cement

Show more

Material

Glass

Concrete

Cementitious

Cement

Cast Stone

Show more

Shape

Rectangle

Length

1800 mm

Manufacturer guidance

Special size: length 700 - 2500 mm

Width

147 mm

Manufacturer guidance

Special size: width 110 - 302 mm

Height

13 mm

Warranty description

Ten year

Uniclass

Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary

CAWS

H92/120 Rainscreen cladding

Specification data - Drained and back-ventilated rainscreen cladding systems

Thermal insulation

-

Manufacturer guidance

Rieder facade cladding is designed as a mounted, ventilated facade in accordance with DIN 18516-1. This construction method, which distinguishes between thermal insulation and weather protection, is an advantage from the point of view of building physics.

Breather membrane

-

Fasteners

-

Manufacturer guidance

Each panel must be fixed to the substructure with at least four matching fasteners.

Secondary support structure

Adhesive to an aluminum substructure.

Rivets to an aluminum substructure.

Screws to a wooden substructure.

Manufacturer guidance

Rieder öko skin slat wall panels are used as façade cladding and mounted on a substructure. The type of battening required depends on which laying pattern is chosen for the façade. The slat wall panels can be installed both horizontally and vertically and can be fastened with screws to a wooden substructure or with rivets or adhesive to an aluminum substructure.


Colour matched screws and rivets are available in all 10 öko skin colours, insert requirements.

Cavity fire barriers

-

Horizontal

-

Manufacturer guidance

Horizontal fire barriers are used for ventilated facades, starting at defined building heights. Consult manufacturer for details and insert requirements.

Vertical

-

Manufacturer guidance

Vertical fire barriers are also required under certain circumstances. Consult manufacturer for details and insert requirements.

Cladding panels

-

Material

Glass reinforced concrete (GRC).

Panel joints

Open joint 8 mm.

Colour/ Finish:

Matt.

Ferro light.

Ferro.

Reaction to fire

To BS EN 13501-1: Class A1.

Size:

1800 x 147 mm.

Manufacturer guidance

Special size: width 110 - 302 mm; length 700 - 2500 mm. Consult manufacturer for details and insert requirements.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Material

Glass

Concrete

Cementitious

Cement

Cast Stone

Show more

Manufacturing plant location

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

723.9 kg CO₂ eq/unit

Expected Life

50 year
