MetSkin Hook-On Cassette System - Concealed Fix Tray Panel System

Verified by manufacturer 4 months ago

Pura Facades Ltd

A powder coated aluminium, secret fix hook-on cassette system.

Jump to:
+44 (0)203 269 2052 Website

Application

Aluminium rainscreen cladding.

Description

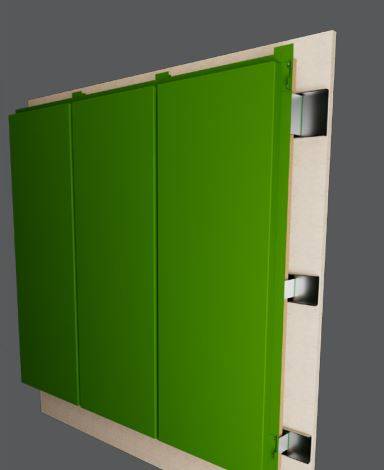

The MetSkin Hook-on Cassette System offers a modern approach to facade design with its sleek appearance and fully concealed fixings for a clean and contemporary look. Designed for efficient installation and versatility, the cassettes attach easily to a supporting substructure using a hook-on mechanism, allowing for individual panel removal for maintenance.


MetSkin's vertical rails feature built-in hooks to receive the panels, streamlining the installation process with a narrow cavity design that fits various flat surfaces, ideal for soffits and reduced cavity zones. Additionally, a half rail profile option simplifies installation near features like doors and windows.


Crafted from high-quality, corrosion-resistant aluminium, MetSkin panels come in various finishes to suit different design preferences and environments. The system has been rigorously tested to CWCT standards for durability and performance in extreme weather conditions, maintaining longevity and appearance.


Key features and benefits include aesthetically pleasing, no-visible-fixing panels, variable sizes, large panel options, superior quality, design flexibility, UV resistance, efficient installation, adaptability, and future modification capabilities. The system also requires no on-site fabrication and ensures proper ventilation and drainage for optimal performance.


General information

Color

Beige

Black

Blue

Bronze

Brown

Show more

Manufacturer guidance

Any RAL colour.

Finish

Powder-coated

Anodized

PVdF

Material

Aluminium

Shape

Rectangle

Square

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary

CAWS

H92/120 Rainscreen cladding

Specification data - Drained and back-ventilated rainscreen cladding systems

Secondary support structure

Aluminium carrier rails

Half rail profile.

Guidance for specification option:

Optional.

Cladding panels

-

Material

Aluminium cassette panels, 2 mm thick.

Aluminium cassette panels, 3 mm thick.

Panel joints

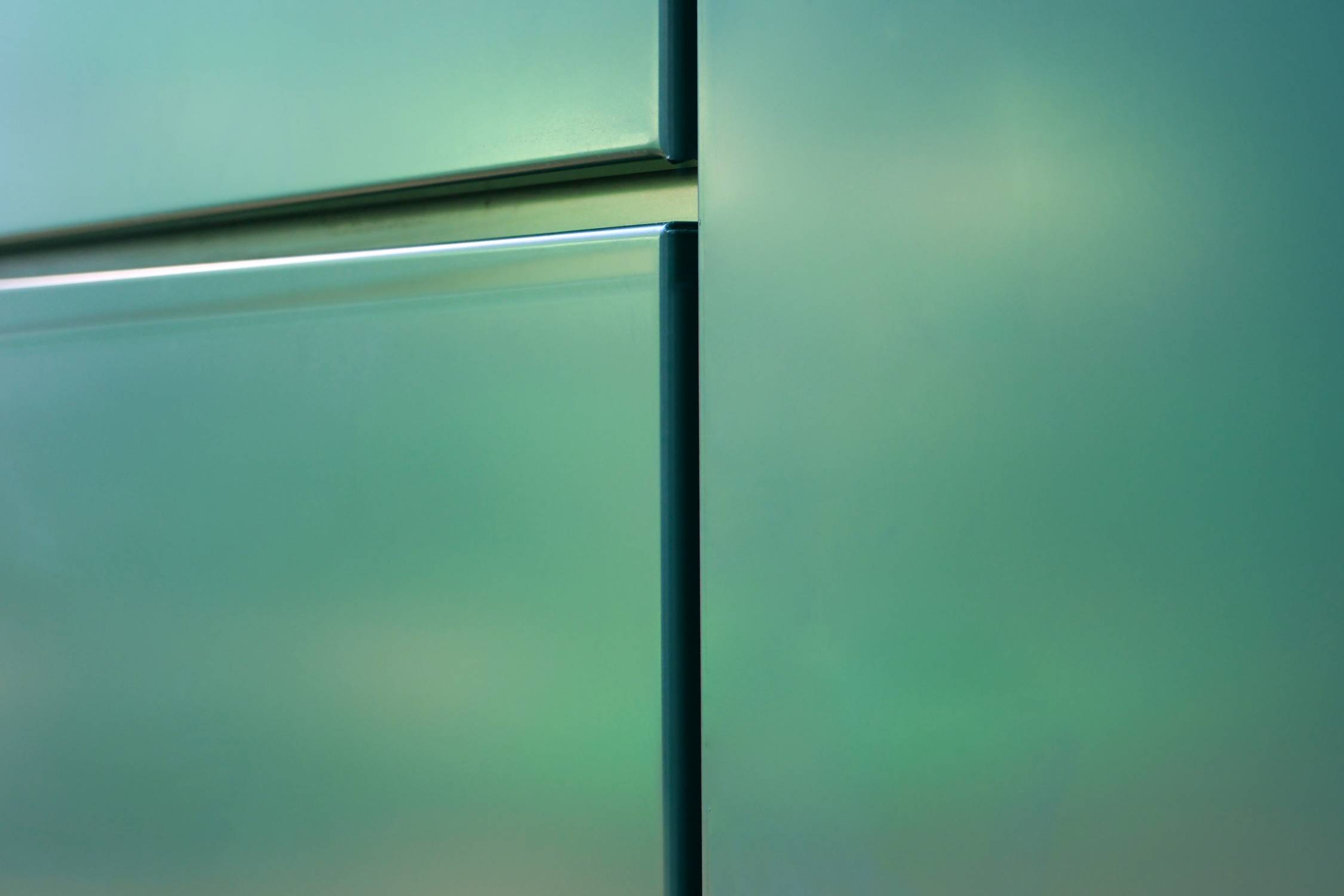

Narrow joints.

Colour/ Finish:

Anodized.

PVdF pre-coated.

Powder coated, RAL.

Guidance for specification option:

Available in any RAL colour, insert requirement.

Reaction to fire

To BS EN 13501-1: Class A1.

To BS EN 13501-1: Class A2.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Aluminium

Recyclability

Fully recyclable.

Expected Life

30 year

Literature

MetSkin Data Sheet

MetSkin Data Sheet
