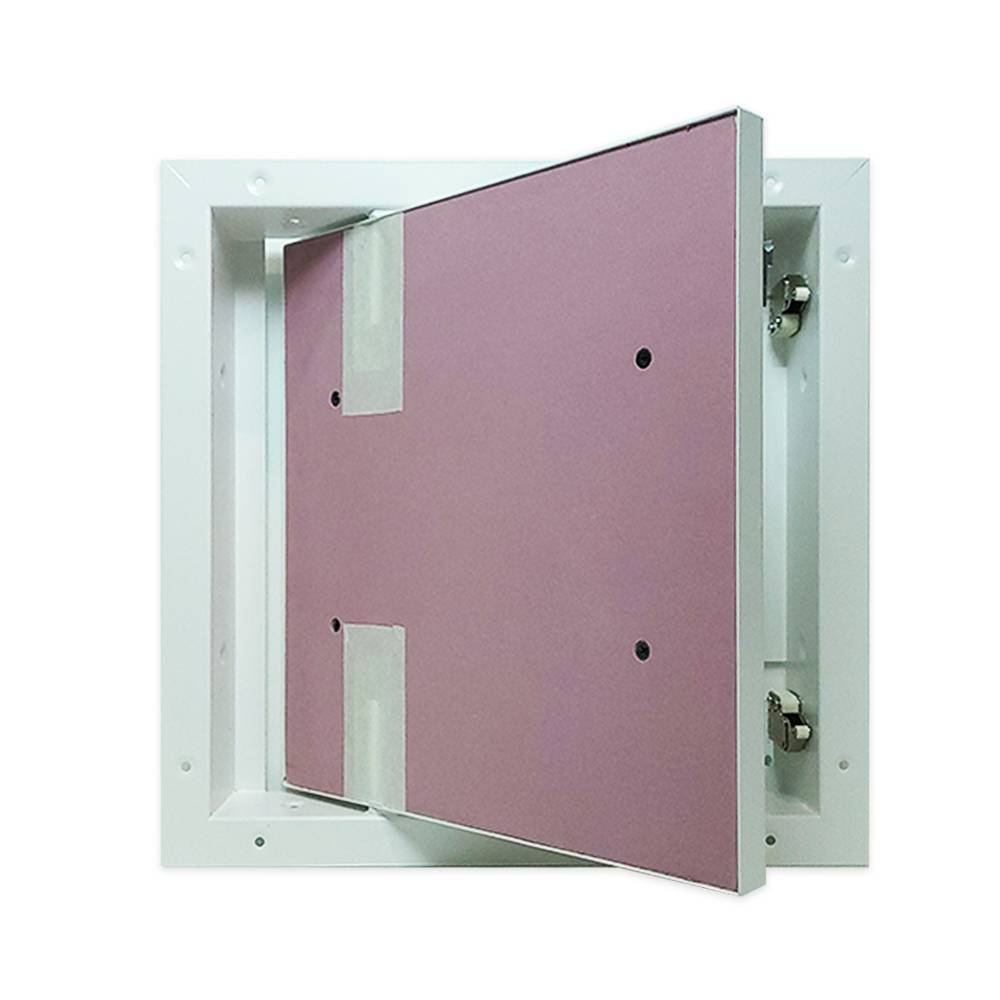

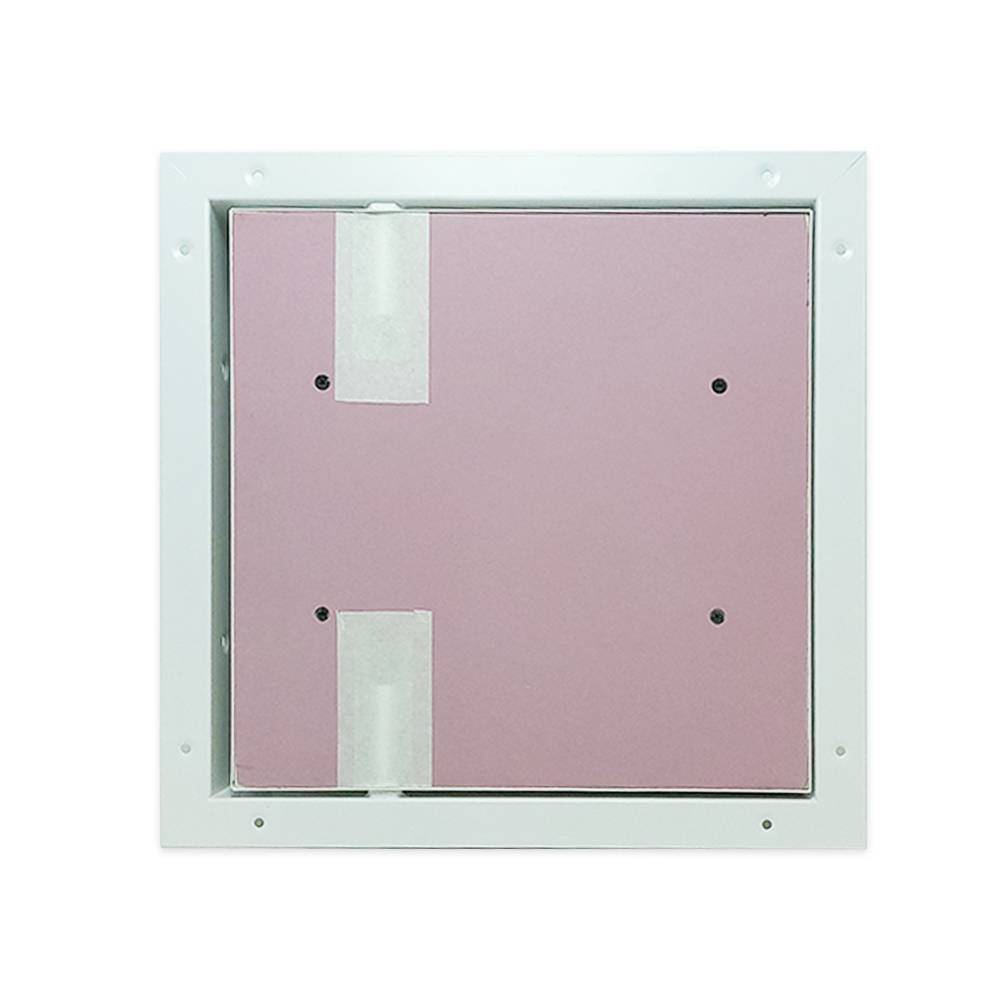

Tile Door Access Panel

Verified by manufacturer 5 months ago

Hinged

Access Building Products Ltd Variant:

Tile access panels designed for use in any room with tiled walls.

Jump to:
+44 (0)1423 874753 Website

Application

Designed for use in any room with tiled walls, typically bathrooms, kitchens, washrooms. This tiled access panels allows easy inspection and maintenance of plumbing and electrical services.

Description

Tile access panels are a suitable solution for accessing building services in tiled areas. Designed to accept an overall depth of 12 mm (including tile and adhesive).


Features and benefits:

  • The panel comes with multiple fixing holes to allow either face or frame fixing.
  • Choice of hinged or lift-out doors.
  • Both are secured by press to release touch catch locks.

General information

Color

White

Finish

Powder-coated

Material

Zintec steel

Shape

Square

Rectangle

Length

1200 mm

Guidance for specification option:

Maximum length hinged door.

900 mm

Guidance for specification option:

Maximum length lift-out door.

Bespoke

Guidance for specification option:

Made to order.

Width

750 mm

Guidance for specification option:

Maximum width hinged door.

600 mm

Guidance for specification option:

Maximum width lift-out door.

Bespoke

Guidance for specification option:

Made to order.

Height

60 mm

Warranty description

Two year

Uniclass

Pr_30_59_36_01 Access panelsPrimary

CAWS

L20/630 Hatches

K10/430 Access panels

Specification data - Access panels

Position

Wall-mounted.

Size

Guidance for specification option:

Made to order. Consult manufacturer and insert requirements.

  • Maximum dimensions: 1200 x 750 mm.

Frame

Bead for taping and jointing.

Panel

-

Material

Steel.

Guidance for specification option:

Zintec steel.

Integral finish

Powder-coated.

Latch or lock type

Touch catch.

Operation

Hinged.

Integral accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Colour

Pure white, RAL 9010.

Depth

60 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

40 %

BIM objects

Platform Compatible Version
Revit
-

1

Literature

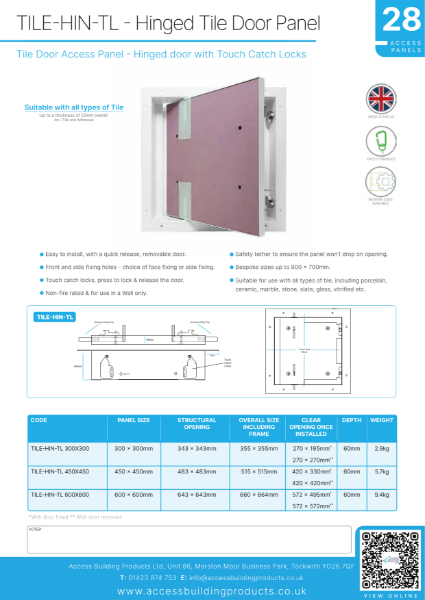

TILE-HIN-TL - Hinged Tile Door Panel

TILE-HIN-TL - Hinged Tile Door Panel

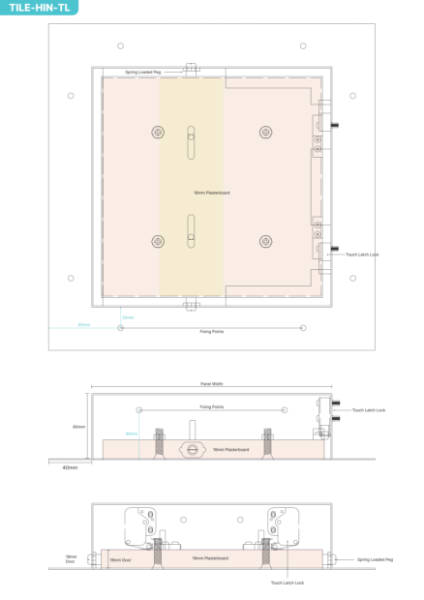

TILE-HIN-TL - Hinged Tile Door Panel Tech

TILE-HIN-TL - Hinged Tile Door Panel Tech

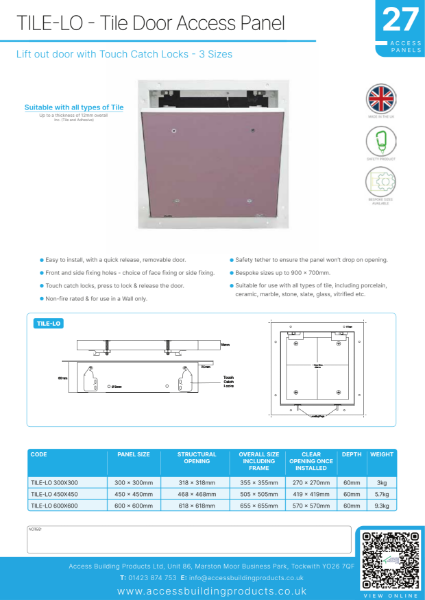

TILE-LO - Tile Door Access Panel Brochure

TILE-LO - Tile Door Access Panel Brochure

TILE-LO - Tile Door Access Panel Tech

TILE-LO - Tile Door Access Panel Tech
