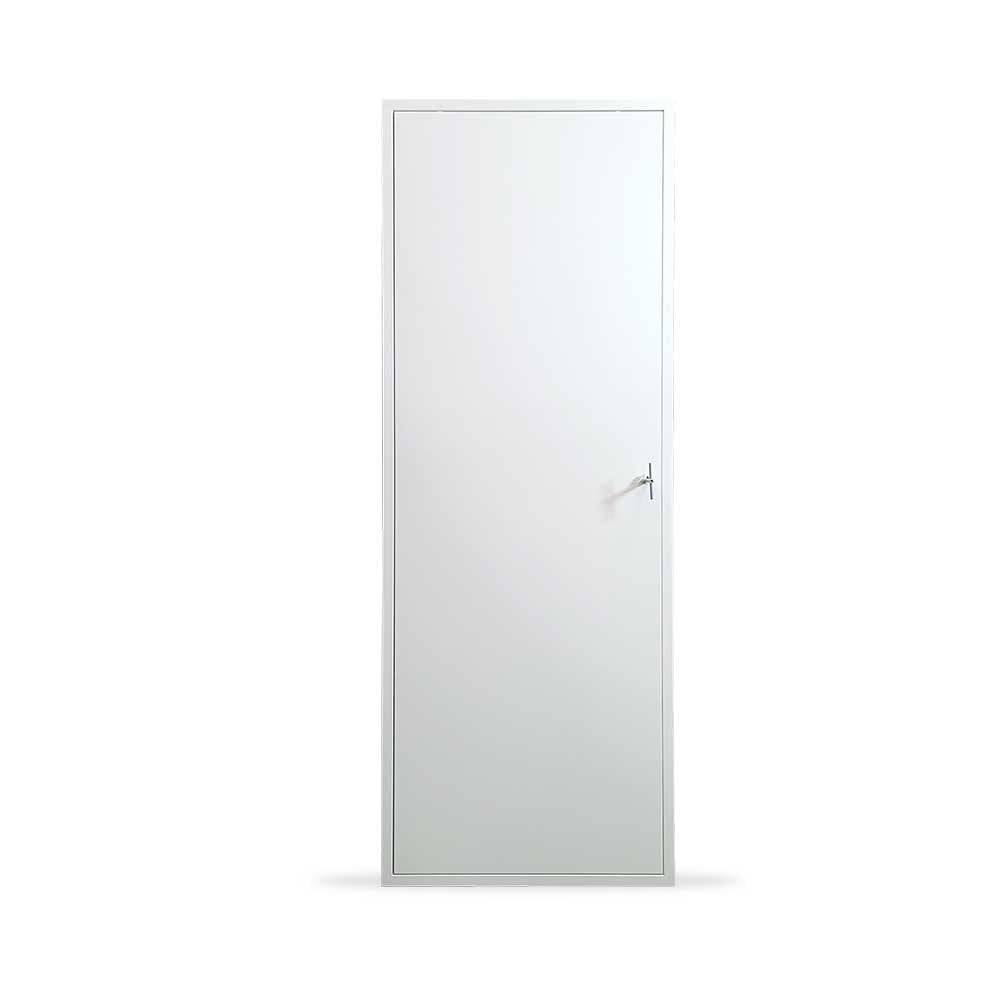

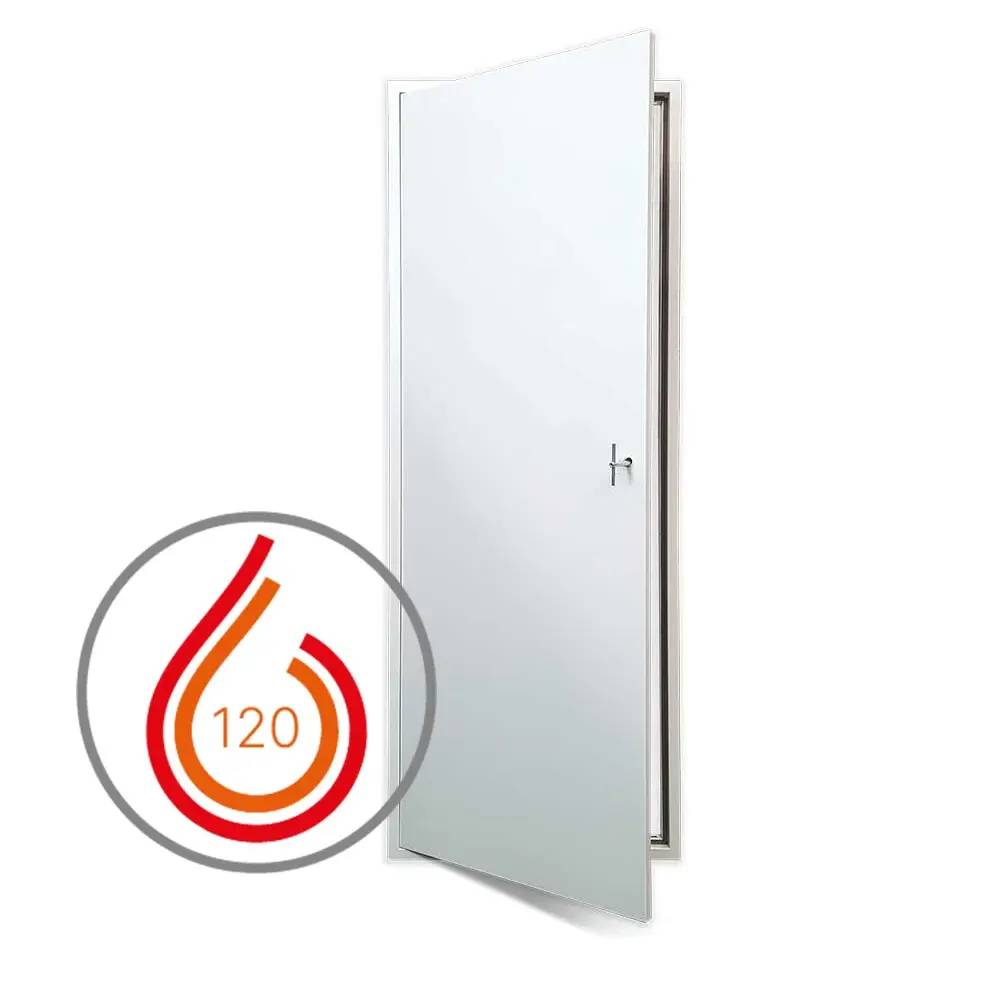

Budget Firepan 2hour Fire Rated Both sides of the door - Fire Rated Access Panel
Verified by manufacturer 3 days ago
Warrington Fire
Certificate type
UKAS
Certificate type
BTC
Certificate type
Warrington Fire
Certificate type
Access panel range, fire tested to 120 minutes for wall use, smoke tested. Made to order in sizes up to 2000 x 800 mm (single door) or 2000 x 1300 mm (double door).
Application
Suitable for wall use.
Description
Fire rated access panel, simple, effective and covering a wide range size applications. Tested for wall use.
When selecting the size of the access panel, please add 5 mm to the size when creating a structural opening (e.g. an access panel size of 1200 x 600 mm would fit a structural opening of 1205 x 605 mm).
Features and benefits:
- Bespoke sizes up to 2000 x 1300 mm double door.
- Bespoke sizes up to 2000 x 800 mm single door.
- Three point locking on lead leaf.

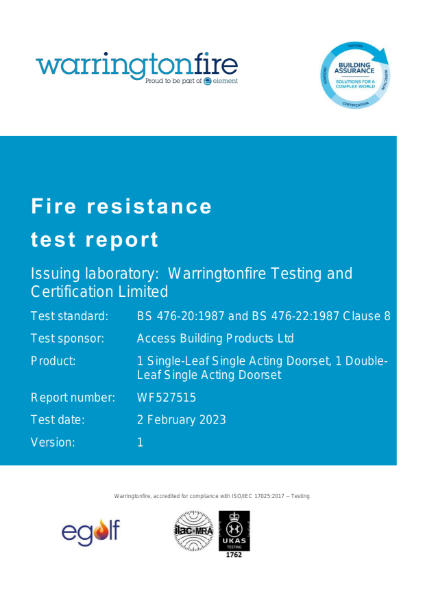

- 120 minute fire tested to BS 476: Part 22 in one direction (opening into fire).

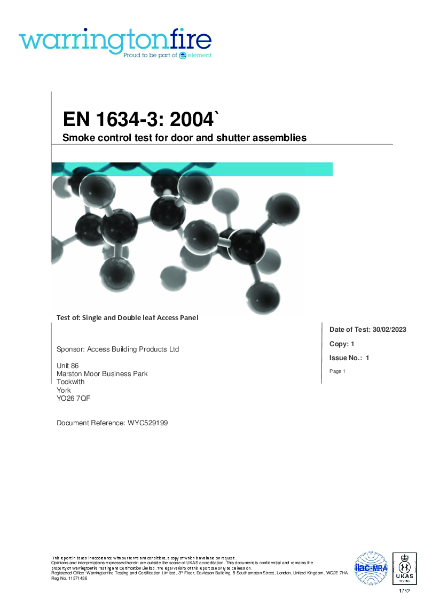

- Smoke tested to BS EN 1634: 2004.
- Powder coated 0.9 mm zintec steel.
- 50 mm deep.
- Picture frame (beaded frame available).
General information
Color | White |
Finish | Powder-coated |
Material | Zintec steel |
Shape | Square Rectangle |
Length | 2000 mm Guidance for specification option: Maximum length. Bespoke Guidance for specification option: Made to order. |
Width | 800 mm Guidance for specification option: Maximum width single door. 1300 mm Guidance for specification option: Maximum width double door. Bespoke Guidance for specification option: Made to order. |
Height | 50 mm |
Warranty description | Two year |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets K10/430 Access panels M30/275 Access panels |
SKU Code | BUD-FP |
Specification data - Access panels
Classification data | |
Fire performance | |
Fire resistance | 120 minutes to BS 476-22. Guidance for specification option: Face side. |
Position | Wall-mounted. |
Size | Guidance for specification option: Made to measure. Consult manufacturer and insert requirements.
Manufacturer guidanceWhen selecting the access panel, please add 5 mm to the size when creating the structural opening. E.g. An access panel size of 1200 x 600 mm would fit a structural opening of 1205 x 605 mm. |
Frame | Exposed picture frame type. Bead for taping and jointing. Guidance for specification option: 25 mm. |
Panel | |
Material | Steel. Guidance for specification option: Zintec steel. |
Integral finish | Powder-coated. |
Latch or lock type | Budget lock. Tamper proof lock. Europrofile lock. |
Operation | Concealed steel hinges, outward opening. |
Integral accessories | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Colour | Pure white RAL 9010. |
Depth | 50 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Zintec steel |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 40 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Product certifications
Literature
Literature type

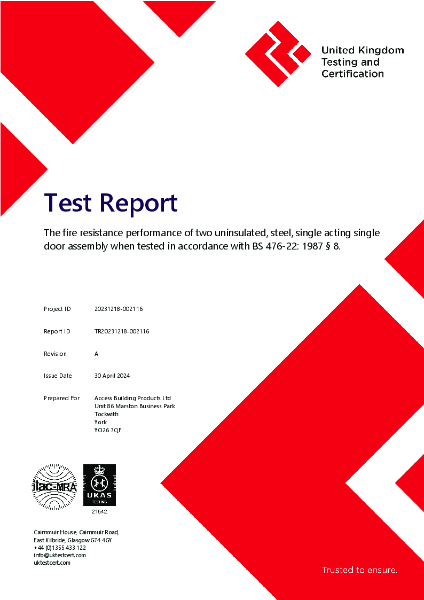

Access Panel Fire Test Report - Fire rated Access Panels
Budget Firepan Tech

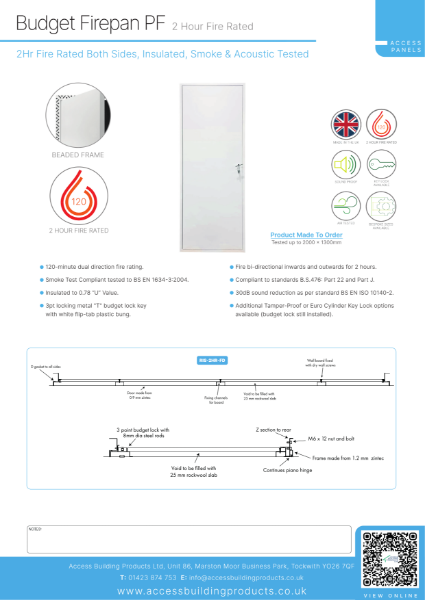

Budget Firepan PF Brochure
