Access Panel - Shallow Non Fire-Rated

Verified by manufacturer 5 months ago

Access Building Products Ltd

Access panel range, non-fire rated depth 30 mm, suitable for walls and ceilings.

Jump to:

+44 (0)1423 874753 Website

Application

Walls and ceilings.

Description

A range of shallow metal access panels available in ten standard sizes with bespoke sizes available to order. The shallow panel depth is useful for applications where cavity space is restricted. This is a lighter-weight access panel which can be used in walls and ceilings.

General information

Color	White
Finish	Powder-coated
Material	Zintec steel
Shape	Square Rectangle
Width	150 mm 200 mm 300 mm 350 mm 450 mm 550 mm 600 mm Bespoke Guidance for specification option: Up to 2280 x 1000 mm as a single door and 2280 x 2000 mm as a double door. Show more
Height	150 mm 200 mm 300 mm 350 mm 450 mm 550 mm 600 mm 900 mm 1200 mm Bespoke Show more
Warranty description	Two year

Uniclass	Pr_30_59_36_01 Access panelsPrimary
CAWS	L20/630 Hatches K10/430 Access panels

Specification data - Access panels

Fire performance	-
Fire resistance	Non-fire rated.
Position	Ceiling-mounted. Wall-mounted.
Size	150 x 150 mm. Guidance for specification option: Structural opening: 155 x 155 mm; Clear opening once installed: 110 x 120 mm. 200 x 200 mm. Guidance for specification option: Structural opening: 205 x 205 mm; Clear opening once installed: 160 x 170 mm. 300 x 300 mm. Guidance for specification option: Structural opening: 305 x 305 mm; Clear opening once installed: 260 x 270 mm. 350 x 350 mm. Guidance for specification option: Structural opening: 355 x 355 mm; Clear opening once installed: 310 x 320 mm. 450 x 450 mm. Guidance for specification option: Structural opening: 455 x 455 mm; Clear opening once installed: 410 x 420 mm. 550 x 550 mm. Guidance for specification option: Structural opening: 555 x 555 mm; Clear opening once installed: 510 x 520 mm. 600 x 600 mm. Guidance for specification option: Structural opening: 605 x 605 mm; Clear opening once installed: 535 x 560 mm. 900 x 600 mm. Guidance for specification option: Structural opening: 905 x 605 mm; Clear opening once installed: 856 x 520 mm. 1200 x 600 mm. Guidance for specification option: Structural opening: 1205 x 605 mm; Clear opening once installed: 1156 x 520 mm. Custom. Guidance for specification option: Up to 2280 x 1000 mm as a single door and 2280 x 2000 mm as a double door. Insert requirements.

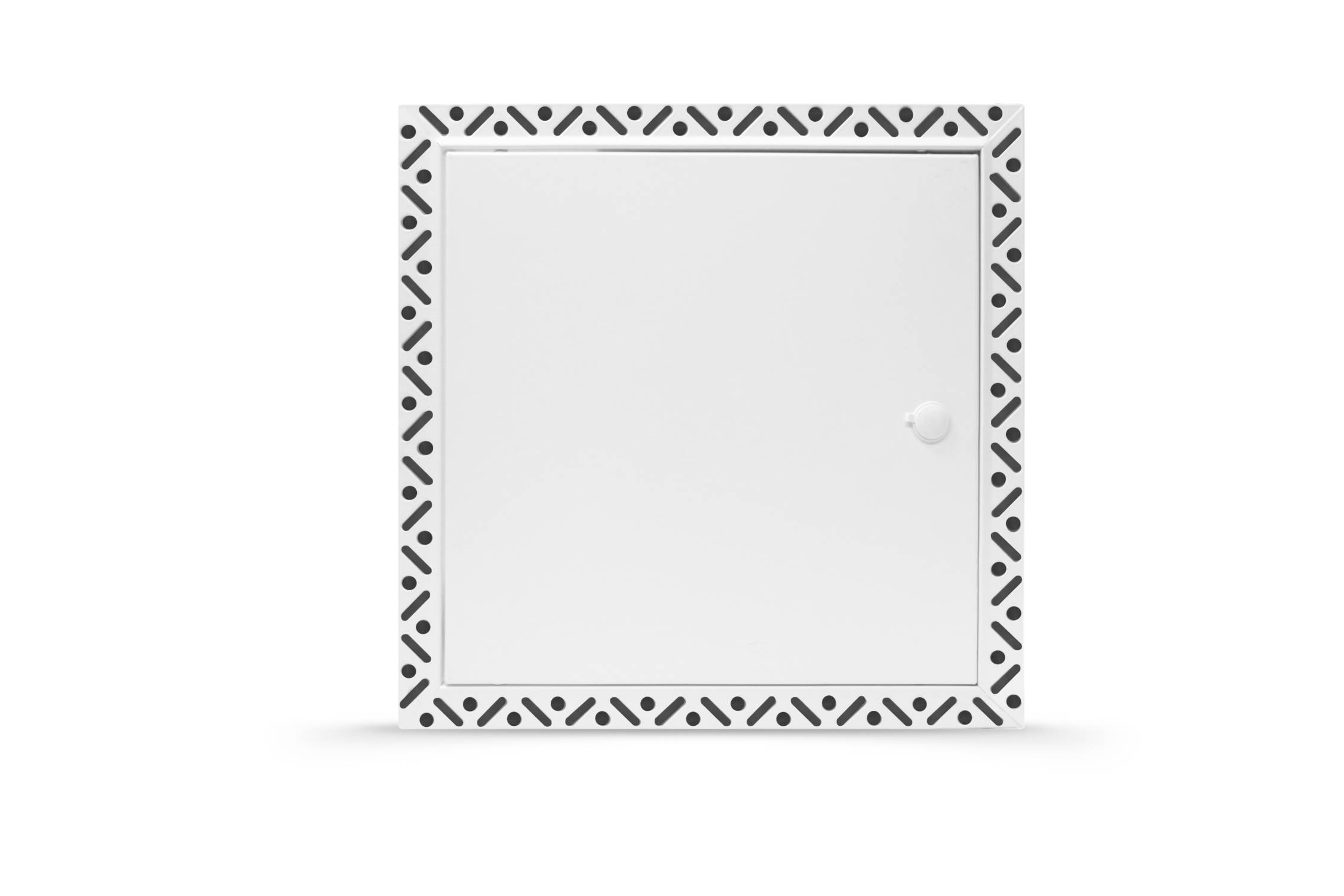

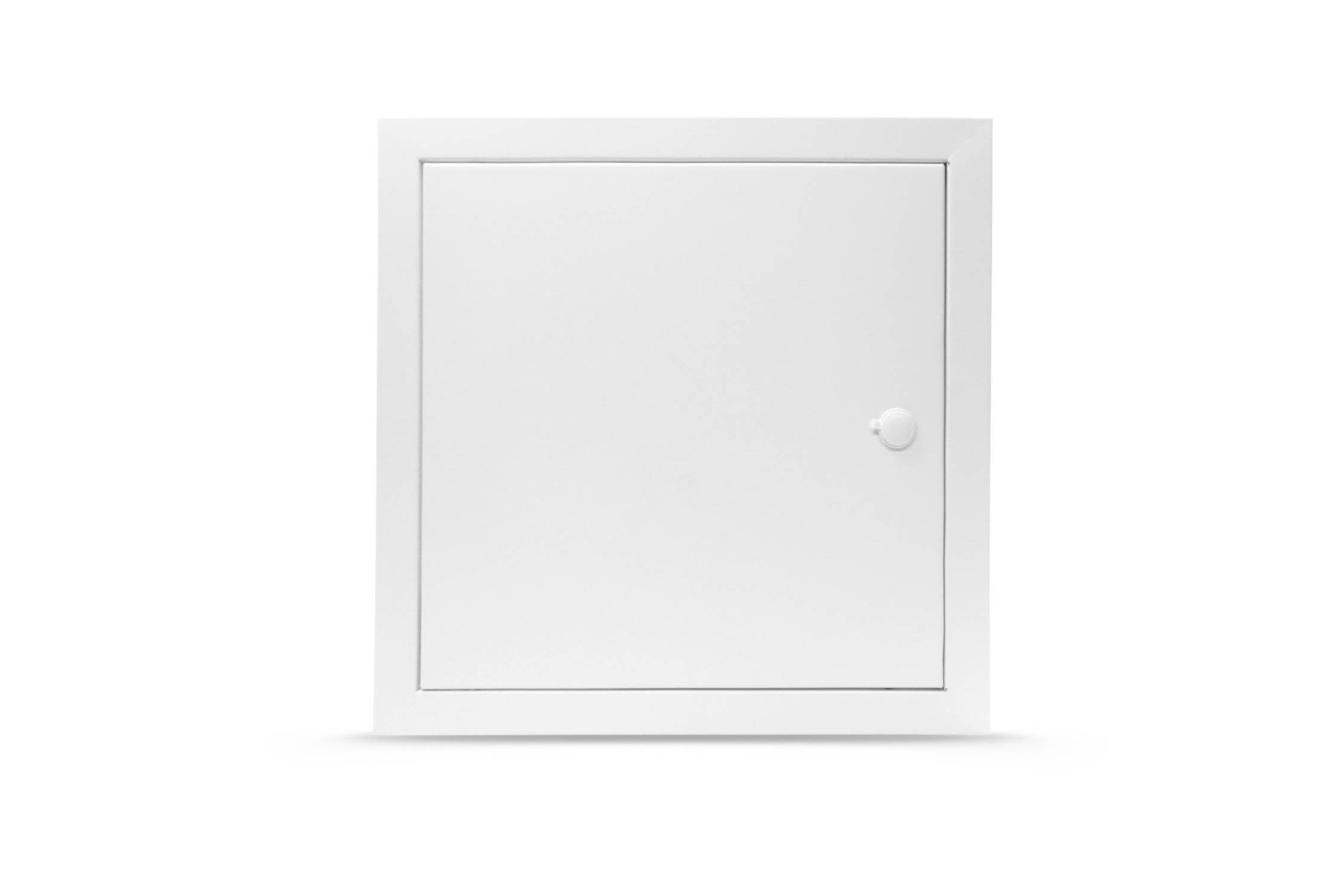

Frame	Bead for taping and jointing. Exposed picture frame type. Manufacturer guidance 25 mm.
Panel	-
Material	Zintec steel.
Integral finish	Powder-coated, white (RAL 9010).
Latch or lock type	Budget lock. Tamper proof lock. Key lock.
Operation	Outward opening.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	United Kingdom
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	40 %

BIM objects

Platform	Compatible	Version
Revit	-	1

Literature

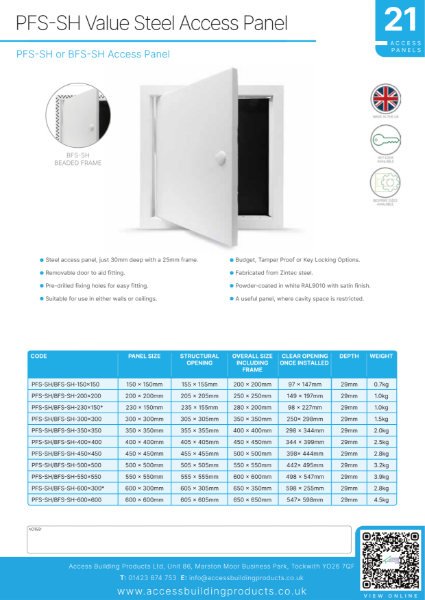

PFS-SH Value Steel Access Panel
