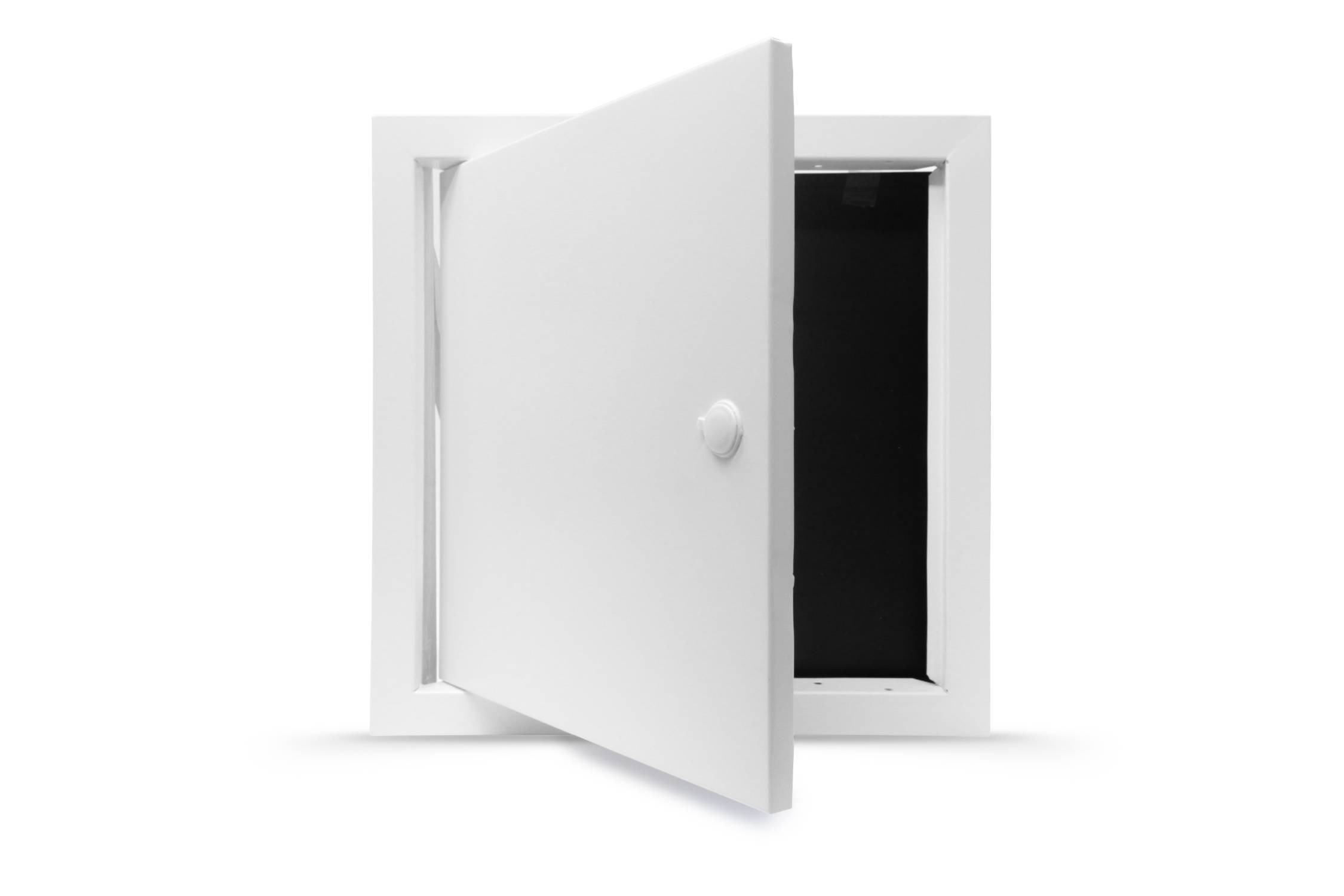

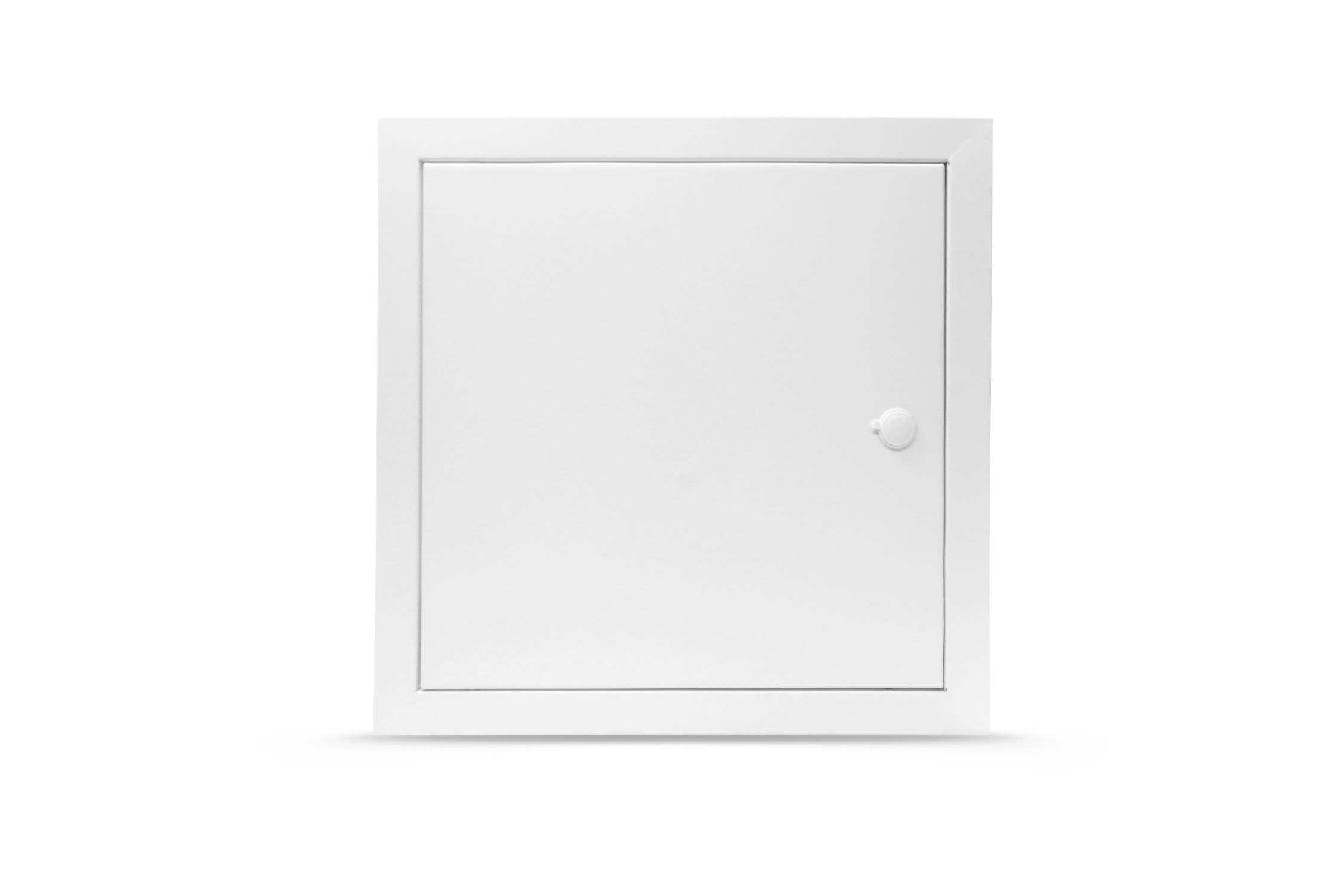

Access Panel Premium - Non Fire Rated
Verified by manufacturer 4 months ago
Access panel range, non-fire rated depth 50 mm, suitable for walls and ceilings.
Application
- Residential or commercial applications.
- Walls or ceilings.
Description
A range of non fire-rated access panels for accessing concealed spaces. This range of access panels are finished to high standards ensuring consistency, durability and longevity. Each panel is designed with pre-drilled fixing holes, allowing for easy and secure fitting.
Features and benefits:
- Available in ten standard sizes with bespoke sizes available to order.
- Provides convenient access to hidden areas.
- Easy to install.
General information
Color | White |
Finish | Powder-coated |
Material | Zintec steel |
Shape | Square Rectangle |
Width | 150 mm 200 mm 300 mm 350 mm 450 mm |
Height | 150 mm 200 mm 300 mm 350 mm 450 mm |
Warranty description | Two year |
Uniclass | |
CAWS | L20/630 Hatches K10/430 Access panels |
Specification data - Access panels
Fire performance | |
Fire resistance | Non-fire rated. |
Position | Ceiling-mounted.Wall-mounted. |
Size | 150 x 150 mm.Guidance for specification option: Structural opening: 155 x 155 mm; Clear opening once installed: 110 x 120 mm. 200 x 200 mm.Guidance for specification option: Structural opening: 205 x 205 mm; Clear opening once installed: 160 x 170 mm. 300 x 300 mm.Guidance for specification option: Structural opening: 305 x 305 mm; Clear opening once installed: 260 x 270 mm. 350 x 350 mm.Guidance for specification option: Structural opening: 355 x 355 mm; Clear opening once installed: 310 x 320 mm. 450 x 450 mm.Guidance for specification option: Structural opening: 455 x 455 mm; Clear opening once installed: 410 x 420 mm. 550 x 550 mm.600 x 300 mm.600 x 600 mm.Guidance for specification option: Structural opening: 605 x 605 mm; Clear opening once installed: 535 x 560 mm. 900 x 600 mm.1200 x 600 mm.Custom.Guidance for specification option: Up to 600 x 600 mm. Insert requirements. |
Frame | Bead for taping and jointing.Exposed picture frame type.Manufacturer guidance25 mm. |
Panel | |
Material | Zintec steel. |
Integral finish | Powder-coated, white (RAL 9010). |
Latch or lock type | Budget lock.Tamper proof lock.Touch catch lock.Guidance for specification option: Up to 600 x 600 mm. |
Operation | Outward opening. |
Sustainability data
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 42 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

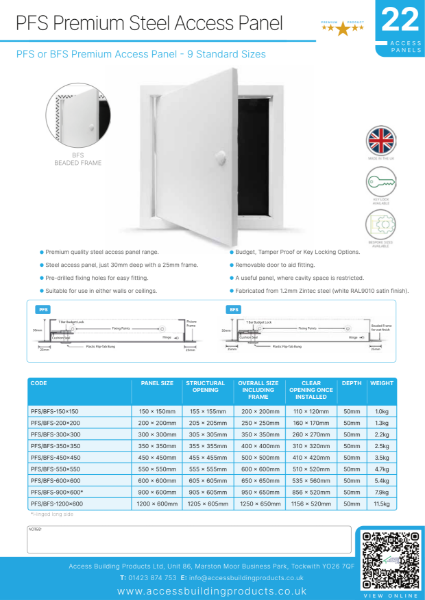

PFS Premium Steel Access Panel

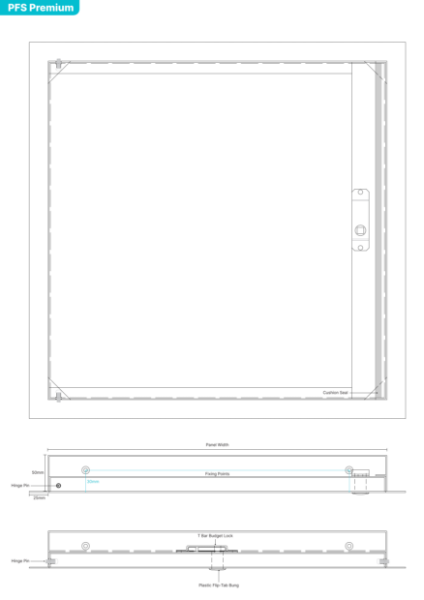

PFS Premium
