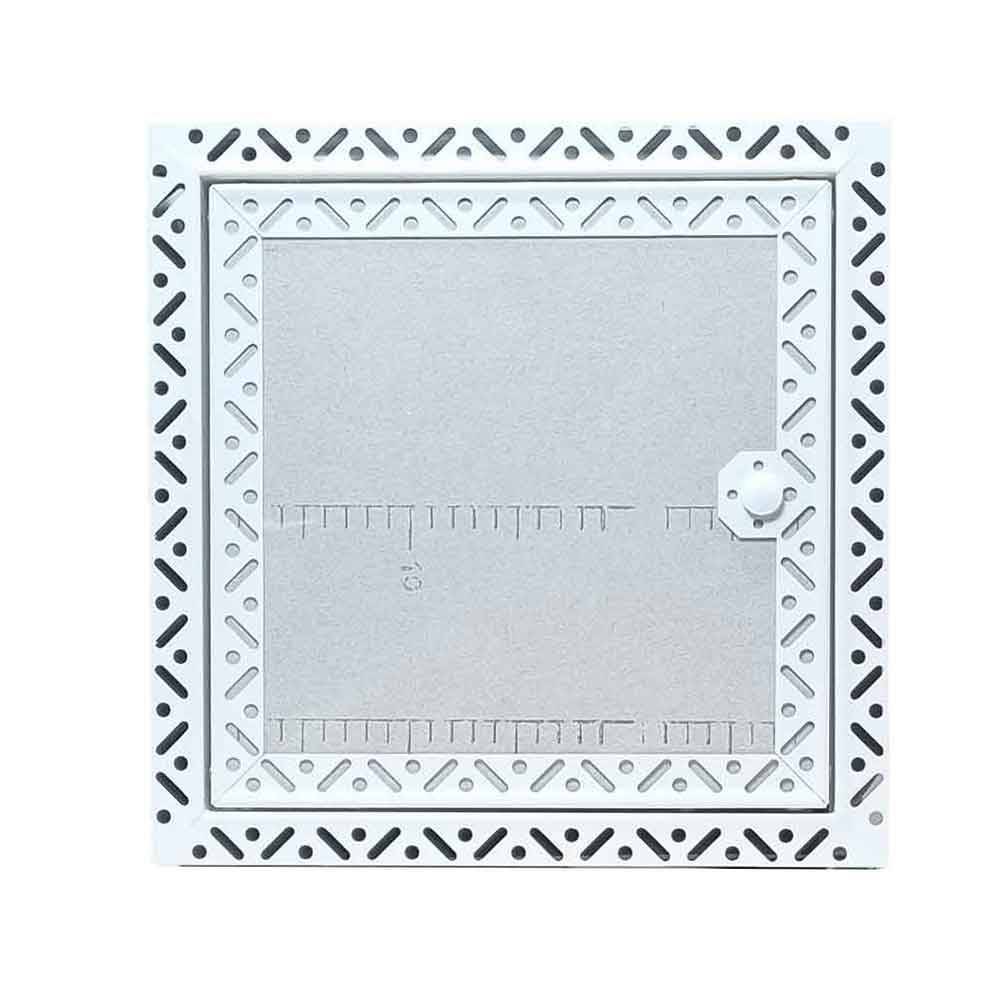

Access Panel with Plasterboard Door and Beaded Frame

Compare

Access Panel with Plasterboard Door and Beaded Frame

Verified by manufacturer 2 months ago

Access Building Products Ltd

Plasterboard door access panel range, non-fire rated depth 50 mm, suitable for walls and ceilings.

Jump to:

+44 (0)1423 874753 Website

Application

Walls or ceilings.

Description

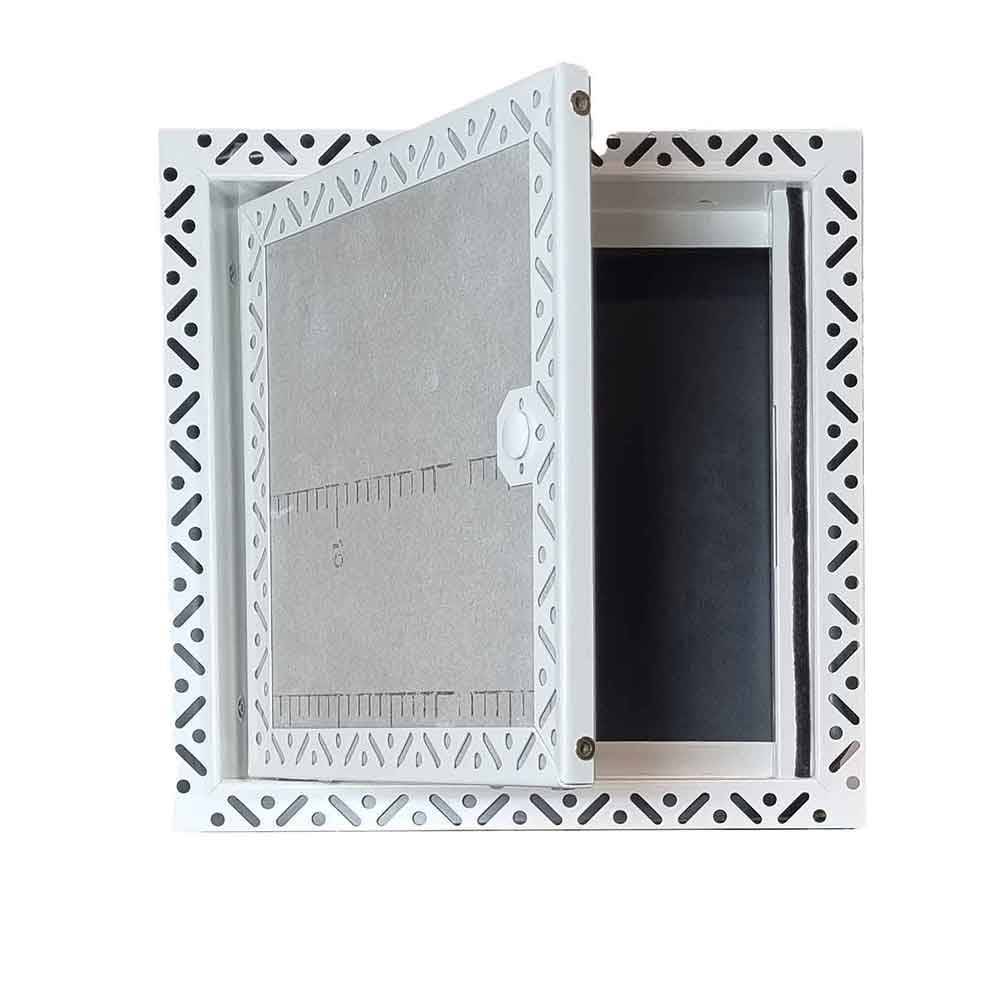

The Non-Fire Rated Plasterboard Door Access Panel range is designed to blend into its surroundings. The beaded frame and door are specially set up for easy application of a plaster finish. The door features spacer pips to ensure a consistent gap between the door and frame. The door can be easily removed for frame fitting or plastering purposes.

Lock: The access panel is equipped with a budget lock, which can be opened using an 8 mm square-ended black plastic T-key. To open, simply twist the key a quarter turn. The lock is discreetly concealed by a push-fit plastic bung (white colour).

Fitting information: The frame comes with pre-drilled 5 mm diameter fixing holes for easy installation. The number of fixing points varies depending on the panel size. Detailed fitting instructions are provided. It's crucial to install the panel before applying the wet finish. Additionally, applying scrim tape to all perforated edges prior to plastering is essential. Failure to use scrim tape may result in poor adhesion of plaster to the access panel frame and potential cracking.

Sizes: When selecting your access panel, please add 5 mm to the size for the structural opening. E.g. An access panel size of 1200 x 600 would fit a structural opening of 1205 x 605 mm.

General information

Color	White
Finish	Powder-coated
Material	Plasterboard Zintec steel
Shape	Square Rectangle
Width	200 mm 300 mm 350 mm 450 mm 550 mm 600 mm Show more
Height	200 mm 300 mm 350 mm 450 mm 550 mm 600 mm 900 mm 1200 mm Show more
Warranty description	Two year

Uniclass	Pr_30_59_36_01 Access panelsPrimary
CAWS	L20/630 Hatches K10/430 Access panels

Specification data - Access panels

Fire performance	-
Fire resistance	Non-fire rated.
Position	Ceiling-mounted. Wall-mounted.
Size	200 x 200 mm. Guidance for specification option: Structural opening: 205 x 205 mm; Clear opening (door at 90°): 140 x 173 mm. 300 x 300 mm. Guidance for specification option: Structural opening: 305 x 305 mm; Clear opening (door at 90°): 240 x 275 mm. 350 x 350mm. Guidance for specification option: Structural opening: 355 x 355 mm; Clear opening (door at 90°): 290 x 322 mm. 450 x 450 mm. Guidance for specification option: Structural opening: 455 x 455 mm; Clear opening (door at 90°): 385 x 424 mm. 550 x 550 mm. Guidance for specification option: Structural opening: 555 x 555 mm; Clear opening (door at 90°): 490 x 520 mm. 600 x 300 mm. Guidance for specification option: Structural opening: 605 x 305 mm. Clear opening (door at 90°): 560 x 224 mm. Hinged on the long side. 600 x 600 mm. Guidance for specification option: Structural opening: 605 x 605 mm; Clear opening (door at 90°): 559 x 514 mm. 900 x 600 mm. Guidance for specification option: Structural opening: 905 x 605 mm; Clear opening (door at 90°): 842 x 540 mm. Hinged on the long side. 1200 x 600 mm. Guidance for specification option: Structural opening: 1205 x 605 mm; Clear opening (door at 90°): 1159 x 522 mm. Hinged on the long side.
Frame	Bead for taping and jointing.
Panel	-
Material	Plasterboard infill.
Latch or lock type	Budget lock.
Operation	Outward opening.

Sound insulation	21 dB.

Sustainability data

Contains Red List materials	No
Recyclability	Steel 100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	42 %

BIM objects

Platform	Compatible	Version
Revit	-	1

Literature

BFS-Plast Beaded Frame Plaster Door
