Surface Mounted Convertible Automatic, Universal Roll Towel Dispenser/ Waste Receptacle B-3979
Verified by manufacturer 10 months ago
Semi-recessed folded paper towel dispenser with 45.5 L waste bin.
Application
Wall face mounted.
Description
Unit includes convertible automatic universal, roll paper towel dispenser with intuitive, user-friendly light directs users to towel activation zone and 45.5-L waste receptacle. Satin-finish stainless steel. Seamless beveled flange. Dispenses universal, 38 to 51mm diameter core, up to 205mm wide, up to 205mm diameter rolls, 244m long, plus 90mm diameter stub roll with automatic transfer. Removable waste receptacle is locked into cabinet. Unit can be powered by AC adapter or 4 Alkaline "D" Cells (not included). Field conversion made easy without replacing existing cabinets in wall.
Interchangeable with:
- 368-60 Interchangeable Receptacle, 68.0-L.
- 3961-50 “touch-free” Pull Towel Dispenser Module
- 3944-152 Folded Towel Dispenser Module
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel |
Shape | Rectangle |
Length | 1430 mm |
Width | 445 mm |
Height | 235 mm |
Warranty description | One year Guidance for specification option: Bobrick washroom accessories are warranted to be free from defects in workmanship and material under normal usage service for one year from the date of purchase. |
Uniclass | |
CAWS | N13/59 Paper towel dispensers N13/442 Paper towel dispensers |
Specification data - Paper towel dispensers
Form | Wall-mounted. |
Towels | |
Towel type | Roll. |
Width | Guidance for specification option: Accepts universal standard-core, non-perforated rolls 8" (205 mm) wide, 8" (205 mm) diameter. 800 ft (244 m) long. |
Materials | |
Body | Stainless steel. |
Finish and colour | Satin polished. |
Operation | Pull-out. |
Integral accessories | Waste bin.3961-50 Touch-Free, Pull Towel Dispenser Module.3944-52 Folded Towel Dispenser Module.3944-134 LinerMate®.3974-57 AC External Adapter (6V).368-60 Interchangeable Receptacle. |
Sustainability data
Country of material origin | United States |
Country of product manufacture | United States |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Replacement Parts for Bobrick Universal Automatic Roll Towel Dispensers - B-3974, B-39747, B-3979, B-2974 and B-29744
TB-88 Restroom Accessories LEED Information
TB-21 Stainless Steel Cleaning and Maintenance
AutoRoll Dispenser Series

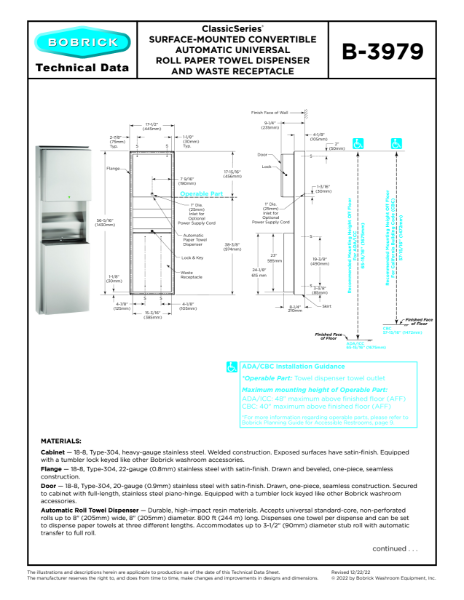

B-3979 SURFACE-MOUNTED CONVERTIBLE
TB-14 Advisory Bulletin
