Automatic, Universal Semi-Recessed Roll Towel Dispenser Equipped with LED Light B-29744
Verified by manufacturer 10 months ago
Automatic, illuminated paper towel dispenser for semi-recessed installation.
Application
For semi-recessed installation in wall opening.
Description
Intuitive, user-friendly light directs users to towel activation zone. Satin-finish stainless steel. Door has a flush lock and piano-hinge. Provide a rough wall opening with the dimensions 330 x 405 x 102mm. Extends 130mm from wall. Unit can be powered by AC adapter or 4 Alkaline "D" Cells (not included).
Note: Due to a product design improvement, the rough wall opening was changed as of February 2023. A complimentary retro-fit kit (29744-135) is available which allows the installation of the new unit into a larger wall opening.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel |
Shape | Rectangle |
Length | 320 mm Guidance for specification option: Protrudes from wall 130mm. |
Width | 230 mm |
Height | 395 mm |
Warranty description | One year Manufacturer guidanceBobrick washroom accessories are warranted to be free from defects in workmanship and material under normal usage service for one year from the date of purchase. (Refer to Bobrick Advisory Bulletin TB-21, Effective Ways to Clean Stainless Steel.) |
Uniclass | |
CAWS | N13/59 Paper towel dispensers N13/442 Paper towel dispensers |
Specification data - Paper towel dispensers
Form | Wall-mounted. |
Towels | |
Towel type | Roll. |
Width | 205 mm. |
Materials | |
Body | Stainless steel.Guidance for specification option: Fully welded. |
Finish and colour | Satin polished. |
Operation | Automatic. |
InputPower | 6-volt a.c. to d.c. power supply. 3974-57. Four “D” size alkaline batteries. |
Sustainability data
Country of material origin | Canada |
Recyclability | Manufacturer guidanceMetals widely recycled |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
Literature

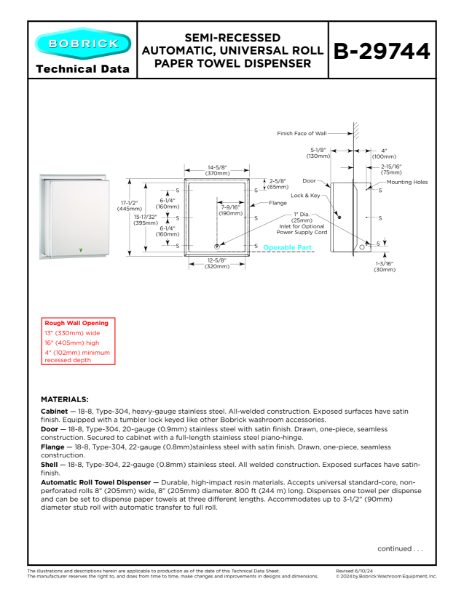

Semi-Recessed Automatic, Universal Roll Paper Towel Dispenser - B-29744

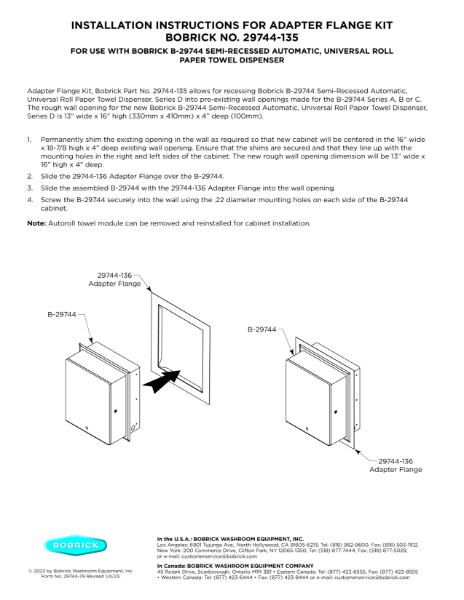

Installation Instructions - B-29744 semi-recessed automatic universal roll towel dispenser
Washroom Accessories for Heavy Traffic Applications
Washroom Accessories
Advisory Bulletin TB-21 Stainless Steel Cleaning and Maintenance
AutoRoll Dispenser Series
TB-88 Advisory Bulletin
Case studies
İstinye Park Shopping Mall
