Recessed Convertible Paper Towel Dispenser/ Waste Receptacle B-3947
Verified by manufacturer 10 months ago
Convertible folded paper towel dispenser with 18 gallon (68 L) waste bin.
Application
Recess mounted.
Description
Unit includes convertible folded paper towel module and 18 gallon waste receptacle.
Features and benefits:
- Satin finish stainless steel.
- Seamless bevelled flange.
- Dispenses 600 C-fold or 800 multi-fold towels.
- Removable waste receptacle locked into cabinet.
- Receptacle is 8″ (205 mm) deep with capacity of 18 gal. (68.0 L); extends 4-1/8″ (105 mm) from wall.
- Rough Wall Opening: 16″ W, 54-3/4″ H, 4″ min. depth (405 x 1390 x 100 mm).
- Field conversion made easy without replacing existing cabinets in wall.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel |
Shape | Rectangle |
Length | 1422 mm Guidance for specification option: Bin protrudes 203mm from finished wall level. Min 100mm recess depth. |
Width | 437 mm |
Height | 303 mm |
Warranty description | One year Guidance for specification option: Bobrick washroom accessories are warranted to be free from defects in workmanship and material under normal usage service for one year from the date of purchase. (Refer to Bobrick Advisory Bulletin TB-21, Effective Ways to Clean Stainless Steel.) |
Uniclass | |
CAWS | N13/59 Paper towel dispensers N13/442 Paper towel dispensers |
Specification data - Paper towel dispensers
Form | Recess wall-mounted. |
Towels | |
Towel type | Folded. |
Materials | |
Body | Stainless steel. |
Finish and colour | Satin polished. |
Operation | Pull-out. |
Integral accessories | Waste bin.3974-250 convertible automatic, universal roll paper towel dispenser module equipped with LED light.3961-50 touch-free, pull towel dispenser module.3944-130 TowelMate®.3944-134 LinerMate®.368-60 interchangeable receptacle. |
Sustainability data
Country of material origin | Canada |
Recyclability | Manufacturer guidanceMetals widely recycled |
Literature
Washroom Accessories for Heavy Traffic Applications
Washroom Accessories
Advisory Bulletin TB-21 Stainless Steel Cleaning and Maintenance

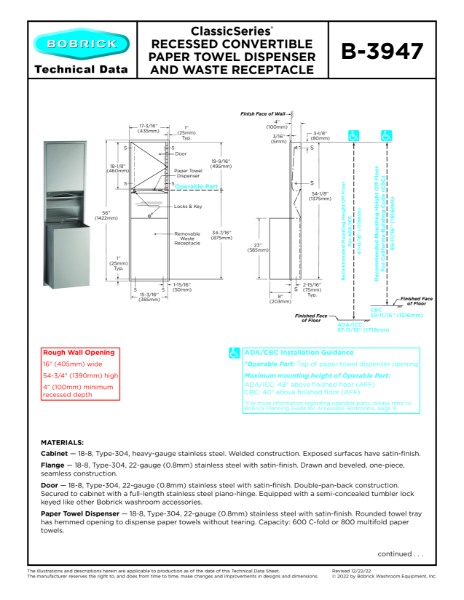

ClassicSeries® Recessed Convertible Paper Towel Dispenser and Waste Receptacle - B-3947
TB-14 Advisory Bulletin
TB-88 Advisory Bulletin
