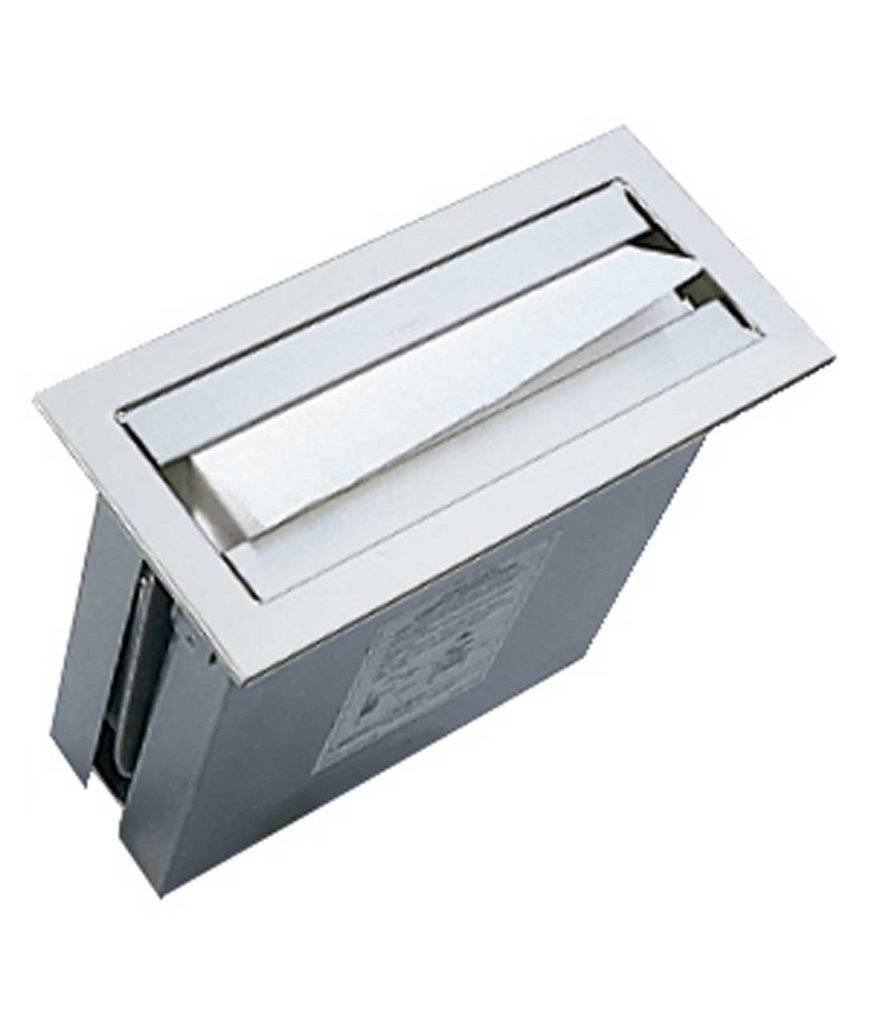

Countertop Mounted Paper Towel Dispenser
Verified by manufacturer 10 months ago
Satin-finish stainless steel countertop mounted, top loading, paper C-fold or multifold towel dispenser.
Application
Counter top mounted.
Description
Features and benefits:
- Satin-finish stainless steel.
- Flange has 90° return.
- Towels load into top of dispenser.
- Dispenses 300 C-fold or multifold towels. Unit 12 ¾" W, 6" front to back depth (325 x 150 mm); 17" (430 mm) min. clearance below mounting surface is required.
- Rough Countertop Cut-out: 12 ¼" W (310 mm), 4 ½" front to back depth (115 mm), ¾" to 1 ½" (19 to 38 mm) mounting thickness.
- Housing below countertop to conceal dispenser is not included.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel |
Shape | Rectangle |
Length | 325 mm |
Width | 100 mm |
Height | 285 mm Guidance for specification option: Towel tray extends a further 150mm over the 285mm (435mm total depth) when fully loaded. |
Warranty description | Manufacturer guidanceBobrick washroom accessories are warranted to be free from defects in workmanship and material under normal usage service for one year from the date of purchase. (Refer to Bobrick Advisory Bulletin TB-21, Effective Ways to Clean Stainless Steel.) |
Uniclass | |
CAWS | N13/59 Paper towel dispensers N13/442 Paper towel dispensers |
Specification data - Paper towel dispensers
Form | Counter-top mounted. |
Towels | |
Towel type | Folded. |
Width | 250 mm. |
Materials | |
Body | Pressed metal.Guidance for specification option: Stainless steel, fully welded. |
Finish and colour | Satin polished. |
Operation | Pull-out. |
Sustainability data
Country of material origin | United States |
Recyclability | Manufacturer guidanceMetals widely recycled |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Washroom Accessories
TrimLineSeries™ Brochure
Advisory Bulletin TB-21 Stainless Steel Cleaning and Maintenance

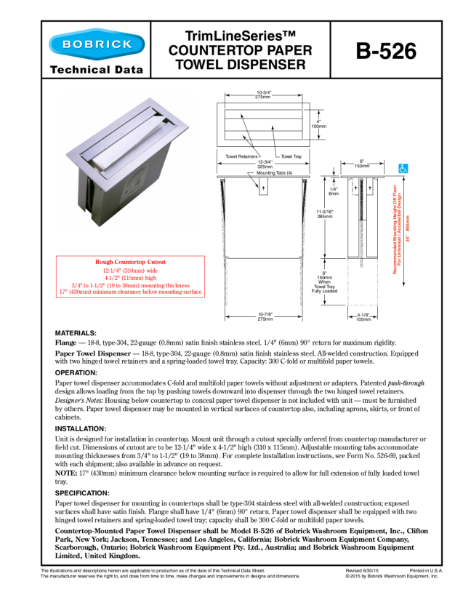

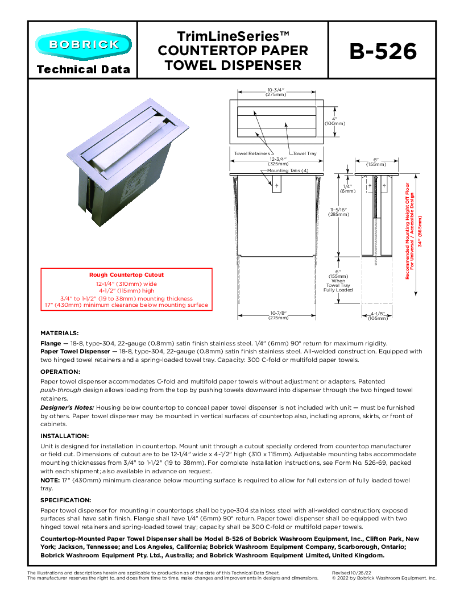

TrimLineSeries™ Countertop Paper Towel Dispenser B-526
