Automatic, Universal Surface-Mounted Roll Towel Dispenser Equipped with LED Light B-2974
Verified by manufacturer 10 months ago
Automatic, illuminated, universal surface-mounted roll towel dispenser.
Application
Surface mounted.
Description
- Intuitive, user-friendly light directs users to towel activation zone. Satin-finish stainless steel. Door has a flush lock and piano-hinge. Unit dimensions are 321 x 394 x 230mm. Extends 230mm)from wall. Unit can be powered by AC adapter or 4 Alkaline "D" Cells (not included).
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel |
Shape | Rectangle |
Length | 321 mm |
Width | 230 mm |
Height | 394 mm |
Warranty description | One year Manufacturer guidanceBobrick washroom accessories are warranted to be free from defects in workmanship and material under normal usage service for one year from the date of purchase. (Refer to Bobrick Advisory Bulletin TB-21, Effective Ways to Clean Stainless Steel.) |
Uniclass | |
CAWS | N13/59 Paper towel dispensers N13/442 Paper towel dispensers |
Specification data - Paper towel dispensers
Form | Surface-mounted. |
Towels | |
Towel type | Roll. |
Width | 205 mm. |
Materials | |
Body | Stainless steel.Guidance for specification option: Fully welded. |
Finish and colour | Satin polished. |
Operation | Automatic. |
InputPower | Four “D” size alkaline batteries. External 6-volt a.c. to d.c. switching power supply. 3974-57. |
Sustainability data
Country of material origin | Canada |
Recyclability | Manufacturer guidanceMetals widely recycled |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
Literature
Washroom Accessories
Advisory Bulletin TB-21 Stainless Steel Cleaning and Maintenance

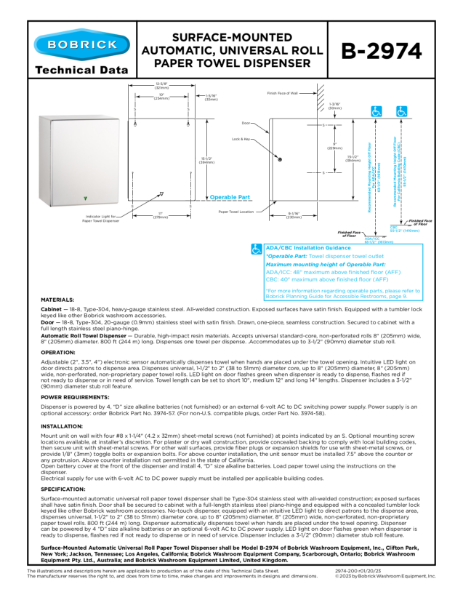

Surface-Mounter Automatic, Universal Roll Paper Towel Dispenser - B-2974
TB-88 Advisory Bulletin

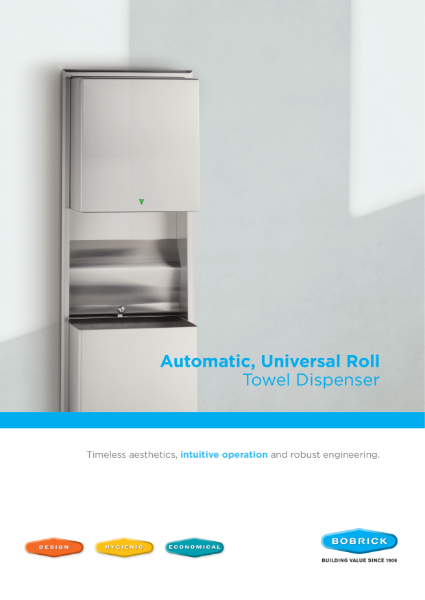

AutoRoll Dispenser Series
