SureClad® SureStone® facade system - Engineered Stone Rainscreen Cladding
Verified by manufacturer 1 day ago
Access System
Access System
BBA Agrément Certificate
Certificate type
A drained and back-ventilated rainscreen cladding system with SureStone® facade panels, made using marble quarry by-product giving the appearance and durability of a natural stone facade.
Application
Suitable for use as an open-jointed, drained and back-ventilated rainscreen cladding system for new build facade projects, unitised facades, modular construction and facade refurbishment for all commercial buildings. Suitable as an alternative to GRC cladding or quarried stone cladding with fully prefabricated, installation-ready facade panels, including extra large format slab-to-slab facade panels for seamless stone facades. Provides a non-porous facade material for a durable finish with consistent quality and aesthetics. Suitable for use in highly complex facades with a wide variety of bespoke facade details available.
Description
A drained and back-ventilated rainscreen facade system with agglomerated stone panels made using up to 96% upcycled marble quarry by-product.
Features and benefits:
- A2 s1,d0 rated facade panels to BS 13501-1
- A2 anti-fragment mesh factory applied to the rear of the all panels
- BBA certified facade system
- CWCT certified facade system
- As standard the material has 0.15% porosity , so the SureStone panels do not need and secondary coating or sealing
- Fully prefabricated, installation-ready facade panels
- Fabricated in Shackerley's ISO 9001 certified UK factories as a complete installation-ready facade system
- All cutting, precision drilling, and fitting of undercut anchors is done in-house in a QA factory environment
- Kiel stress free undercut anchors are used for every SureStone® facade panel
- BSR compliant for HRBs and residential buildings
- SureClad® SureStone® facade panels use up to 96% upcycled quarried marble
- Lightweight stone facade system weighing approxiately 49kg/M2 suitable for lightweight building frames
- Facade system is suitable for modular construction and MMC projects
- Unitised SureStone® facades available
- Bespoke facade details can be fully ISO 9001 factory-prefabicated including custom facade soffits, detailed facade reveals, facade corner units, mitred 'bird's beak' facade details, invisibly bonded facade details, louvred facade sections
- Pre-drilled facade panels are available for mounting of signage, brise soleil and lighting to meet your rainscreen facade design requirements
- Etched, engraved and precision drilled customised SureStone® facade panels area available to deliver the bespoke facade design
- Wide range of agglomerated stone cladding panel sizes available as standard and bespoke sizes available
- Wide range of SureStone® cladding panel colourways, textures, and finishes are available
- Precision cutting of SureStone® cladding panels to bespoke measurements and site measurements
- Installed using the SureClad® Hang On facade system and SureClad secondary support grid
- Aluminium components manufactured from aluminium alloy (grade 6063/ T6) to BS EN 12020-1 : 2008.
General information
Color | Other Guidance for specification option: Various colour options available. Beige Black Brown Cream |
Finish | Honed Textured Blasted Buffed Brushed |
Material | Reconstituted stone Aluminium Stone Marble |
Shape | Rectangle Square Other |
Length | 3000 mm |
Width | 1200 mm |
Height | 20 mm |
Uniclass | |
CAWS | H92/120 Rainscreen cladding |
Specification data - Drained and back-ventilated rainscreen cladding systems
Classification data | |
Thermal insulation | Manufacturer guidanceConsult manufacturer for more details and insert requirements. |
Breather membrane | |
Material | Manufacturer guidanceConsult manufacturer for more details and insert requirements. |
Fasteners | Manufacturer guidanceConsult manufacturer for more details and insert requirements. |
Secondary support structure | Aluminium carrier rails. Guidance for specification option: Horizontal rails The horizontal rails are manufactured from extruded aluminium alloy (grade EN AW-6063 T6) to BS EN 12020-1. The rails are available with an anodised coating or a mill finish and are supplied in six-metre lengths. They provide support for the panels and are mechanically fixed to the vertical sub-frame. Vertical rails The vertical rails are a series of T-profile sections manufactured from 2.5 mm thick aluminium alloy (grade 6063/ T6) to BS EN 12020-1 and are available in three profile sizes: 50 x 50, 50 x 75 and 60 x 75 mm. The T-sections support the horizontal rails and are mechanically fixed to the substrate wall by the use of wall brackets. Consult manufacturer for more details and insert finishing requirements. |
Cavity fire barriers | |
Horizontal | Manufacturer guidanceConsult manufacturer for more details and insert requirements. |
Vertical | Manufacturer guidanceConsult manufacturer for more details and insert requirements. |
Cladding panels | |
Material | Reconstituted stone panels. Guidance for specification option: The engineered stone panels are manufactured om accordance with BS EN 15286, from refined stones with an organic resin binder content of less than 8.2 % and incorporating a reinforcing fibreglass safety mesh glued on the back face. The dimensions and characteristics of the panel are defined as class 'A' in accordance with BS EN 14617-16. |
Panel joints | Open jointed. |
Reveals | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
System accessories | Manufacturer guidanceConsult manufacturer for more details and insert requirements. |
Type | Access system. |
Panel dimensions | 1200 x 1200 x 20 mm. Manufacturer guidanceLength x height x thickness. Thickness has a tolerance of +/- 0.5 mm. |
Panel weight | 50.3 kg/m². |
Finish | Honed. Textured SBM. SBH. |
Colour | Guidance for specification option: Various colour options available; consult manufacturer for more details and insert requirements. |
Wall brackets | Single brackets to BS EN 12020-1, 5 mm thick, L shaped aluminium alloy (grade 6063/ T6). Guidance for specification option: The brackets are available in the following dimensions, with a range of lengths to accommodate various cavity widths:
Insert requirements. Double brackets to BS EN 12020-1, 5 mm thick, L-shaped aluminium alloy (grade 6063/ T6). Guidance for specification option: The brackets are available in the following dimensions, with a range of lengths to accommodate various cavity widths:
Insert requirements. |
Reaction to fire | To EN 13501-1, A2-s1,d0. |
Integral accessories | Aluminium vertical straps. Guidance for specification option: Access System panels are supplied with minimum two aluminium (grade 6063/ T6 and 6061/ T6) vertical straps per panel, each technically fixed using two hexagon screws via KEIL undercut anchor sleeves inserted in the panel. |
Third-party certification | BBA certified. |
Sustainability data
Material | Reconstituted stone Aluminium Stone Marble |
Recyclability | Manufacturer guidanceBoth the panels and the aluminium support components of the systems are readily recyclable. |
Product certifications

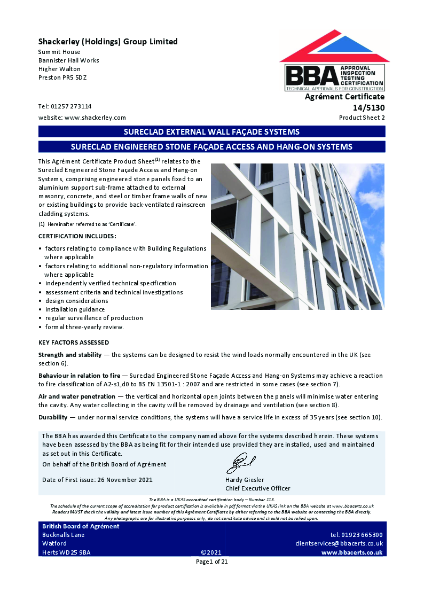

BBA Agrément Certificate
SureStone BBA Agrément Certificate
Literature
SureStone - Technical Drawings
