BrickClad® mechanically-fixed brick facade system Cotswold Rustic range - Mechanically-fixed brick facade system
Verified by manufacturer 1 day ago
BBA Agrément Certificate
Certificate type
Mechanically fixed brick facades that form part of our range of drained and back-ventilated rainscreen cladding systems. BrickClad® combines quality bricks with contemporary building performance.
Application
Suitable for use as a protective and decorative back-ventilated and drained cavity rainscreen cladding system on external walls of domestic and non-domestic buildings of masonry, concrete, timber-frame or steel-frame substrate walls, above the damp-proof course (DPC) level in areas with non-severe exposure to chemicals.
Description
Cotswold Rustic brick range for the BrickClad® mechanically fixed drained and back-ventilated rainscreen brick facade system
Features and benefits:
- Mechanically fixed brick facade system
- Extruded clay bricks
- Choice of Magnelis®-coated or stainless steel cassette profiled rails
- Our unique patented steel cassette profiles have been designed in-house by Shackerley for our mechanically fixed brick facade system and are manufactured in-house at our ISO 9001 certified factories
- Magnelis® steel provides significantly improved protection as compared to galvanised steel fixing systems
- Magnelis® steel is self-healing, protecting the steel fixing system from snags and nicks on site
- BrickClad® Bricks can be installed in a variety of layouts, including running bond, English bond, Flemish bond and soldier course.
- The BrickClad® mechanically fixed brick facade system is 75% lighter than a conventional brick facade, making it suitable for lightweight structures
- All BrickClad® facade system components are rated A1 non-combustible to BS 13501-1
- Suitable for new builds and retrofitting for existing buildings
- The BrickClad® mechanically fixed facade system is BBA certified

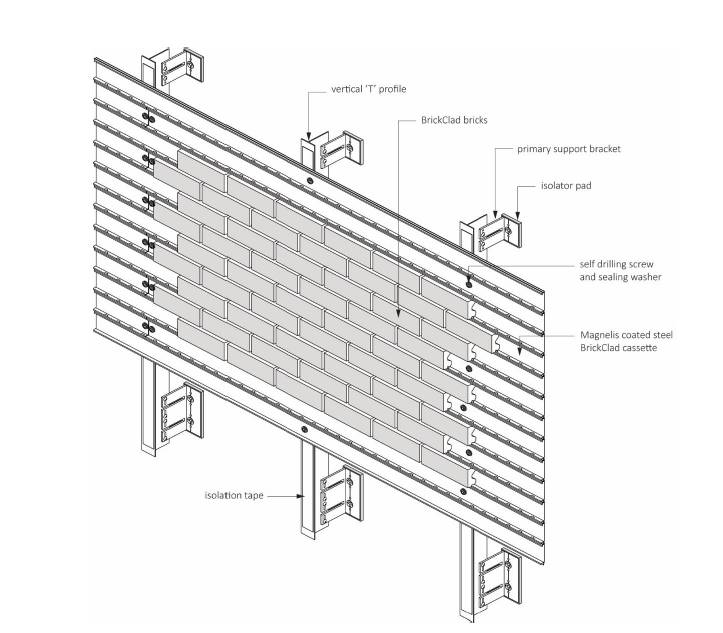

- The BrickClad® mechanically fixed facade system used the patented and Queens Award-winning Shackerley SureClad® primary support system to create a support grid.
- Large range of support brackets and rails to create design zones in excess of 300mm.
- The BrickClad® cladding system can be installed using our single rail steel cassette fixing system or our innovative and unique five-in-one Multi-Rail® installation system.
- BrickClad® steel cassette rails are supplied in 2.4m lengths as standard and can also be supplied in other lengths to order
- A range of specially formulated lime/sand pointing mortar is available in a variety of colours to complement the BrickClad® ventilated rainscreen system.
- A range of brick facade details is available for the BrickClad® mechanically fixed BrickClad® system including bonded corners, stop-end bricks, side bonded mitred corners ends, and ventilation bricks.
- BBA Certified
General information
Color | Other Guidance for specification option: Various colours available. |
Finish | Natural Smooth Dragfaced |
Material | Brick Steel Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | F10/110 Clay facing brickwork F10/5 Facing brickwork H92/120 Rainscreen cladding |
Specification data - Drained and back-ventilated rainscreen cladding systems
Classification data | |
Thermal insulation | Manufacturer guidanceConsult manufacturer for more details and insert requirements or omit. |
Breather membrane | |
Material | Manufacturer guidanceConsult manufacturer for more details and insert requirements or omit. |
Fasteners | Manufacturer guidanceConsult manufacturer for more details and insert requirements or omit. |
Secondary support structure | Magnelis coated steel horizontal rails with aluminium vertical rails. Guidance for specification option:
Insert requirements. Stainless steel horizontal rails with aluminium vertical rails. Guidance for specification option:
Insert requirements. |
Cavity fire barriers | |
Horizontal | Manufacturer guidanceConsult manufacturer for more details and insert requirements or omit. |
Vertical | Manufacturer guidanceConsult manufacturer for more details and insert requirements or omit. |
Cladding panels | |
Material | Clay brick slips. Guidance for specification option:
|
Panel joints | Pointing mortar. Guidance for specification option: The pointing mortar used with the system is a hydrated lime, sand, GGBS (cement-free) pointing mortar manufactured to BS EN 998-2 : 2016 with a reaction to fire classification of A1 in accordance with BS EN 13501-1. |
Reveals | Manufacturer guidanceConsult manufacturer for more details and insert requirements. |
System accessories | Manufacturer guidanceConsult manufacturer for more details and insert requirements. |
Wall brackets | Single brackets to BS EN 12020-1, 5 mm thick, L shaped aluminium alloy (grade 6063/ T6). Guidance for specification option: The brackets are available in the following dimensions, with a range of lengths to accommodate various cavity widths:
Insert requirements. Double brackets to BS EN 12020-1, 5 mm thick, L shaped aluminium alloy (grade 6063/ T6). Guidance for specification option: The brackets are available in the following dimensions, with a range of lengths to accommodate various cavity widths:
Insert requirements. |
Finish | Natural. Smooth. Dragged. |
Colour | Manufacturer guidanceVarious colours available; consult manufacturer for more details and insert requirements. |
Reaction to fire | To BS EN 13501-1, Class A1. |
Third-party certification | BBA certified. |
Sustainability data
Material | Brick Steel Aluminium |
Recyclability | Manufacturer guidanceThe system contains aluminium which can be recycled. |
Product certifications
BBA Agrément Certificate
BrickClad BBA Agrément Certificate
Literature

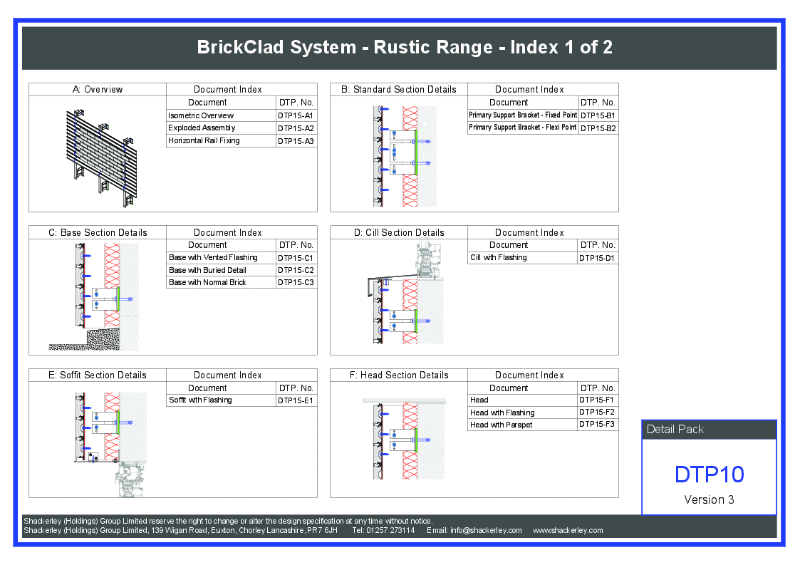

BrickClad Cotswold Rustic - Technical Drawings
