BrickClad® mechanically fixed facade system Ibstock range - Brick Facade System
Verified by manufacturer 1 day ago
BBA Agrément Certificate
Certificate type
Mechanically fixed brick facades that form part of our range of drained and back-ventilated rainscreen cladding systems. It combines quality Ibstock bricks with contemporary building performance.
Application
Suitable for use as a protective and decorative back-ventilated and drained cavity rainscreen cladding system on external walls of commercial buildings including residential, office, hotel and local authority buildings. Suitable for new build developments and building refurbishments.
Description
Ibstock brick range for the BrickClad® mechanically fixed drained and back-ventilated rainscreen brick facade system
Features and benefits:
- Mechanically fixed brick facade system
- A choice of 50 Ibstock bricks to choose from
- Magnelis-coated and stainless steel cassette profiled rails
- Our unique patented steel cassette profiles have been designed in-house by Shackerley for our mechanically fixed brick facade system and are manufactured in-house at our ISO 9001 certified factories
- Magnelis steel provides significantly improved protection as compared to galvanised steel fixing systems
- Magnelis steel is self-healing, protecting the steel fixing system from snags and nicks on site
- BrickClad® Bricks can be installed in a variety of layouts, including running bond, English bond, Flemish bond and soldier course.
- The BrickClad® mechanically fixed brick facade system is 75% lighter than a conventional brick facade, making it suitable for lightweight structures
- All BrickClad® facade system components are rated A1 non-combustible to BS 13501-1
- Suitable for new builds and retrofitting for existing buildings
- The BrickClad® mechanically fixed facade system is BBA certified
- The BrickClad® mechanically fixed facade system used the patented and Queens Award-winning Shackerley SureClad® primary support system to create a support grid.
- Large range of support brackets and rails to create design zones in excess of 300mm.
- The BrickClad® cladding system can be installed using our single rail steel cassette fixing system or our innovative and unique five-in-one Multi-Rail® installation system.
- BrickClad® steel cassette rails are supplied in 2.4m lengths as standard and can also be supplied in other lengths to order
- A range of specially formulated lime/sand pointing mortar is available in a variety of colours to complement the BrickClad® ventilated rainscreen system.
- A range of brick facade details is available for the BrickClad® mechanically fixed BrickClad system including bonded corners, stop-end bricks, side bonded mitred corners ends, and ventilation bricks.
- All corners are fabricated in house
- BBA certified
General information
Color | Other Guidance for specification option: Various colours available. Beige Black Brown Cream |
Finish | Natural Smooth Dragfaced |
Material | Brick Steel Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | F10/110 Clay facing brickwork F10/5 Facing brickwork H92/120 Rainscreen cladding |
Specification data - Drained and back-ventilated rainscreen cladding systems
Classification data | |
Thermal insulation | Manufacturer guidanceConsult manufacturer for more details and insert requirements or omit. |
Breather membrane | |
Material | Manufacturer guidanceConsult manufacturer for more details and insert requirements or omit. |
Fasteners | Manufacturer guidanceConsult manufacturer for more details and insert requirements or omit. |
Secondary support structure | Magnelis coated steel horizontal rails with aluminium vertical rails. Guidance for specification option:
Insert requirements. Stainless steel horizontal rails with aluminium vertical rails. Guidance for specification option:
Insert requirements. |
Cavity fire barriers | |
Horizontal | Manufacturer guidanceConsult manufacturer for more details and insert requirements or omit. |
Vertical | Manufacturer guidanceConsult manufacturer for more details and insert requirements or omit. |
Cladding panels | |
Material | Clay brick slips. Guidance for specification option: Manufactured to BS EN 14411, AIb–AIIb-2. Brick size: 215 x 25 x 65 mm. Smaller sizes (i.e. corner brick and cut sizes) are available on request. |
Panel joints | Pointing mortar. Guidance for specification option: The pointing mortar used with the system is a hydrated lime, sand, GGBS (cement-free) pointing mortar manufactured to BS EN 998-2 : 2016 with a reaction to fire classification of A1 in accordance with BS EN 13501-1. |
Reveals | Manufacturer guidanceConsult manufacturer for more details and insert requirements. |
System accessories | Manufacturer guidanceConsult manufacturer for more details and insert requirements. |
Wall brackets | Single brackets to BS EN 12020-1, 5 mm thick, L shaped aluminium alloy (grade 6063/ T6). Guidance for specification option: The brackets are available in the following dimensions, with a range of lengths to accommodate various cavity widths:
Insert requirements. Double brackets to BS EN 12020-1, 5 mm thick, L shaped aluminium alloy (grade 6063/ T6). Guidance for specification option: The brackets are available in the following dimensions, with a range of lengths to accommodate various cavity widths:
Insert requirements. |
Finish | Natural. Smooth. Dragged. |
Colour | Manufacturer guidanceVarious colours available; consult manufacturer for more details and insert requirements. |
Reaction to fire | To BS EN 13501-1, Class A1. |
Third-party certification | BBA certified. |
Sustainability data
Material | Brick Steel Aluminium |
Recyclability | Manufacturer guidanceThe system contains aluminium which can be recycled. |
Product certifications

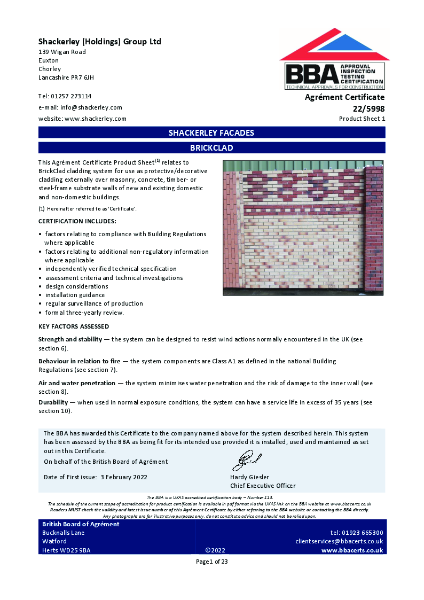

BBA Agrément Certificate
BrickClad BBA Agrément Certificate
Literature
BrickClad Ibstock Brochure EdItion 7
