SureClad® Quarried Stone facade system - Natural Stone Rainscreen Cladding System

Verified by manufacturer 1 day ago

Shackerley Facade Systems Product certifications:
  • CWCT Certificate

    CWCT Certificate

    Certificate type

A drained and back-ventilated rainscreen cladding system using quarried stone, including granite facades, limestone facades and sandstone facades with all facade panels fully prefabricated.

Jump to:
+44 (0)1257 273114 Website

Application

Suitable for drained and back-ventilated rainscreen cladding system installations for all commercial buildings where the structure has sufficient load bearing capacity for a quarried stone facade. Commonly specified for extensions to heritage buildings where a stone facade is required by planning authorities and for stone facade projects in conservation and heritage locations. Our quarried stone facades are also often specified for prestige buildings and provide a traditional appearance combined with the buildability and building performance benefits of a drained and back-ventilated rainscreen cladding system.

Description

A quarried stone ventilated facade system drained and back-ventilated rainscreen cladding system

Features and benefits:

  • Choice of limestone, granite and sandstone quarried stone facade panel materials
  • Quarried stone slabs processed to order at Shackerley's ISO 9001 certified Lancashire factories to create fully prefabricated installation ready stone facade panels
  • A1 non-combustible rated to BS 13501-1 for a fire safe facade
  • Stone matching available to complement existing or local stone facades
  • Facade panels available with or without anti fragment mesh backing
  • Facade panels can be fixed in both portrait and landscape orientations
  • Wide range of facade configuration options
  • Wide choice of natural stone facade panel colourways and finishes from UK quarries and quarries around the world
  • Fabricated in Shackerley's ISO 9001 certified UK factories as a complete installation-ready facade system
  • All panels assembled with Stress free under cut anchors
  • All cutting, precision drilling, and fitting of undercut anchors is done in-house in a QA factory environment
  • BSR compliant for HRBs and residential buildings
  • Unitised quarried stone facades available
  • Bespoke facade details can be fully ISO 9001 factory-prefabicated including custom facade soffits, detailed facade reveals, facade corner units, mitred 'bird's beak' facade details, invisibly bonded facade details, louvred facade sections
  • Precision drilled facade panels are available for mounting of signage, brise soleil and lighting to meet your rainscreen facade design requirements
  • Etching available for customising the facade
  • In house expertise to deliver bespoke facade designs
  • Wide range of quarried stone cladding panel sizes available
  • Precision cutting of quarried stone cladding panels to bespoke measurements and site measurements
  • CWCT certified
  • Stone facades installed using the Shackerley SureClad® Hang On facade installation system
  • supplied with SureClad secondary support grid, available with a wide range of bracket sizes
  • Aluminium components manufactured from aluminium alloy (grade 6063/ T6) to BS EN 12020-1 : 2008
  • Fully prefabricated quarried stone facade samples available

General information

Color

Other

Beige

Black

Brown

Cream

Show more

Finish

Honed

Material

Limestone

Aluminium

Granite

Sandstone

Shape

Rectangle

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary

CAWS

H92/120 Rainscreen cladding

Specification data - Drained and back-ventilated rainscreen cladding systems

Classification data

Thermal insulation

-

Manufacturer guidance

Consult manufacturer for more details and insert requirements or omit.

Breather membrane

-

Material

-

Manufacturer guidance

Consult manufacturer for more details and insert requirements or omit.

Fasteners

-

Manufacturer guidance

Consult manufacturer for more details and insert requirements or omit.

Secondary support structure

Aluminium carrier rails.

Guidance for specification option:

Shackerley aluminium rail system consisting of:

  • Vertical RSF T rails with 75 mm leg and 50 mm flange in 2500 mm and 1790 mm lengths at 600 mm spacing.
  • RSN 290D bracket at one end of each length of rail with RSN 290 brackets elsewhere at maximum spacing of 750 mm; rails secured to brackets with screws, two screws per bracket.
  • Horizontal SHG 2540 rails screwed to vertical rails with two screws at each intersection. Two rails for each row of stone panels at spacing shown on drawings. An additional rail provided for the supplementary tests on portrait panels.
  • Stone panels fixed to horizontal rails by HGB/ HGBA clips fixed to back of panels with undercut Keil anchors. Four or six fixings per panel.

Cavity fire barriers

-

Horizontal

-

Manufacturer guidance

Consult manufacturer for more details and insert requirements or omit.

Vertical

-

Manufacturer guidance

Consult manufacturer for more details and insert requirements or omit.

Cladding panels

-

Material

Natural stone panels.

Guidance for specification option:

Shackerley Komodo limestone.

Panel joints

Open joints, 10 mm wide.

Guidance for specification option:

Horizontal and vertical joints.

Reveals

-

Manufacturer guidance

Consult manufacturer for details and insert requirements or omit.

System accessories

-

Manufacturer guidance

Consult manufacturer for more details and insert requirements or omit.

Panel dimensions

1200 x 600 x 30 mm.

Guidance for specification option:

Panels fixed in both portrait and landscape orientation.

Manufacturer guidance

Length x width x thickness.

Finish

Honed.

Mesh

Not required.
Required.

Guidance for specification option:

Mesh backing bonded to back face of panels. The mesh backing helps to retain the stone in position if it is damaged.

Manufacturer guidance

Mesh backing.

Soft body

Manufacturer's standard.

Guidance for specification option:

Tested at 120 Nm (serviceability), 350 Nm (safety) and 500 Nm (safety).

  • Landscape panels (meshed): Class 1 (120 Nm); negligible risk (350 Nm); negligible risk (500 Nm).
  • Landscape panels (unmeshed): Class 1 (120 Nm); negligible risk (350 Nm); negligible risk (500 Nm).
  • Portrait panels, non standard fixing spacing (meshed), layout A: Class 1 (120 Nm).
  • Portrait panels, non standard fixing spacing (unmeshed), layout A: Class 1 (120 Nm).
  • Portrait panels standard fixing spacing (unmeshed), layout B: Class 1 (120 Nm); moderate risk (350 Nm); High risk (500 Nm).
  • Portrait panels with additional rail support rail at mid height (unmeshed), layout C: Class 1 (120 Nm); negligible risk (350 Nm); negligible risk (500 Nm).
  • Portrait panels with additional rail support rail at mid height and fixing clips (unmeshed), layout C: Class 1 (120 Nm); negligible risk (350 Nm); negligible risk (500 Nm).

Manufacturer guidance

Soft body test to CWCT TN 76.

Hard body

Manufacturer's standard.

Guidance for specification option:

Panel with mesh backing:

  • At 3 Nm: Class 1 (serviceability), negligible risk (safety/ risk).
  • At 6 Nm: Class 1 (serviceability), negligible risk (safety/ risk).
  • At 10 Nm: Class 1 (serviceability), negligible risk (safety/ risk).

Panels without mesh backing:

  • At 3 Nm: Class 1 (serviceability), negligible risk (safety/ risk).
  • At 6 Nm: Class 1 (serviceability), negligible risk (safety/ risk).
  • At 10 Nm: Class 4 (serviceability), high risk (safety/ risk).

Manufacturer guidance

Hard body test to CWCT TN 76.

Sustainability data

Material

Limestone
Aluminium
Granite
Sandstone

Product certifications

CWCT Certificate

CWCT Certificate

Natural Stone Rainscreen with Shackerley Sureclad Support System - CWCT Certificate of Testing

Literature

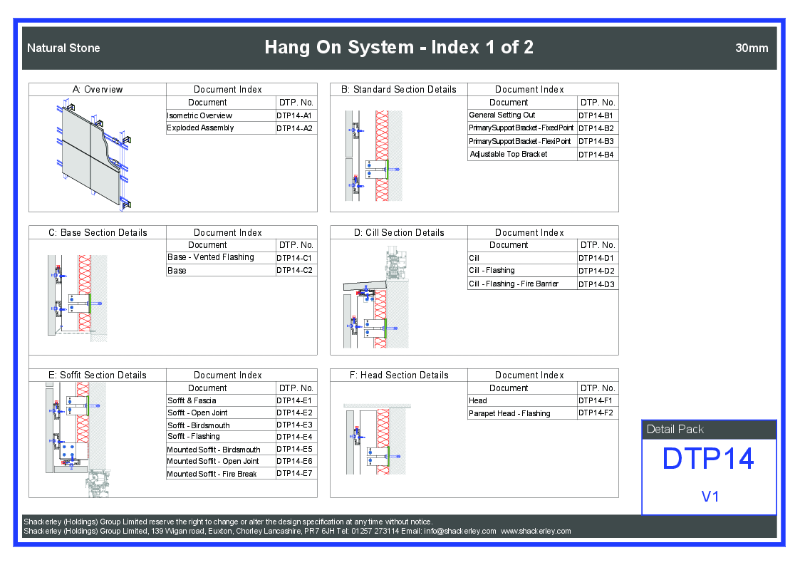

Quarried Stone - Technical Drawings

Quarried Stone - Technical Drawings
