Stöbich System: BR 100 - Conveyor Fire Protection Termination
Verified by manufacturer 15 days ago
Vertical
Vertical

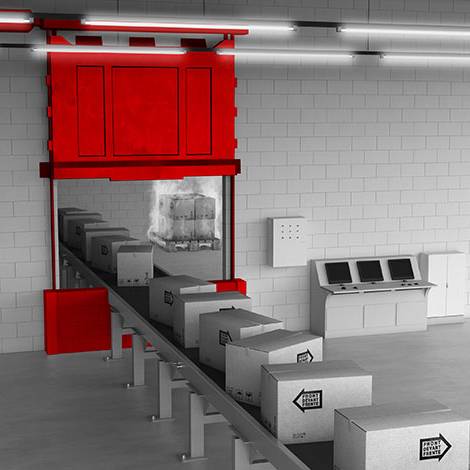

High-speed conveyor fire protection system termination.
Application
Rail-bound conveyor system fire protection.
Description
Conveyor system termination with fast-running function for both uninterrupted and interrupted conveyor sections.
Features and benefits:
- Specialist building-based conveyor protection system.
- Fast running function.
- Vertically or horizontally closing.
- Achieves integrity and insulation.
- C5 durability - up to 200 000 operating cycles (vertical) and C4 durability - up to 100 000 operating cycles (horizontal).
- Fire resistance: EI2 90, tested according to BS EN 1366-7 and classified according to BS EN 13501-2.
- ETA-16/0851 European Technical Assessment (BR 100 EU).
- Z-6.6-2089 General building authority approval/general type approval (BR 110 D) VKF No. 30308 VKF Recognition (BR 100 E).
General information
Color | Red Grey Other |
Finish | Galvanized |
Material | Metal |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/610 Roller shutters/ curtains |
Specification data - Fire curtain systems
System performance | Manufacturer guidance
|
Fire curtain | Vertical active fire curtain barriers. |
Head supports | Manufacturer's standard.Guidance for specification option: Insert requirements. |
Side supports | Manufacturer's standard.Guidance for specification option: Insert requirements. |
System accessories | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Fire resistance | EI2 90, tested according to BS EN 1366-7 and classified according to BS EN 13501-2. |
Closing | Top to bottom. Bottom to top. |
Durability Class | C5 (200 000 closing cycles). |
Operation | Motor. Manufacturer guidanceRe-opening operation. |
Dimensions | Guidance for specification option: Insert requirements.
|
System | Belt conveyor technology. Suspension chain conveyor technology. Roller conveyor technology. Manufacturer guidanceConveyor system type. |
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Metal |
Recyclability | Manufacturer's standard |
Case studies

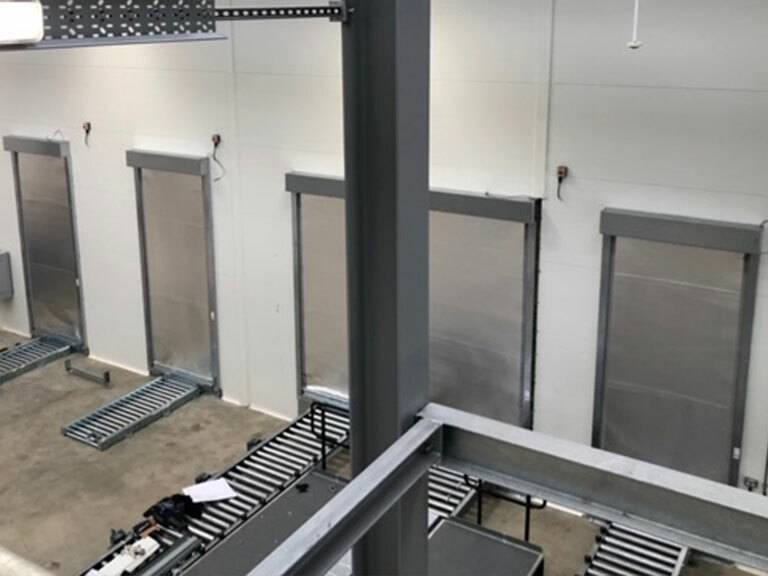

Stöbich Conveyor Fire Protection at Distribution Centre
