Stöbich System: Ecotube - Fireproof Pipe Closure

Verified by manufacturer 1 month ago

Teckentrup UK Ltd

Pipe shields for pneumatic conveyor lines that do not obstruct the conveyor flow.

Jump to:
+44 (0)1925 924050 Website

Application

  • Tube closure.
  • Suitable for positive and negative pressure as well as for a variety of conveyed goods, e.g. cardboard or paper strips.

Description

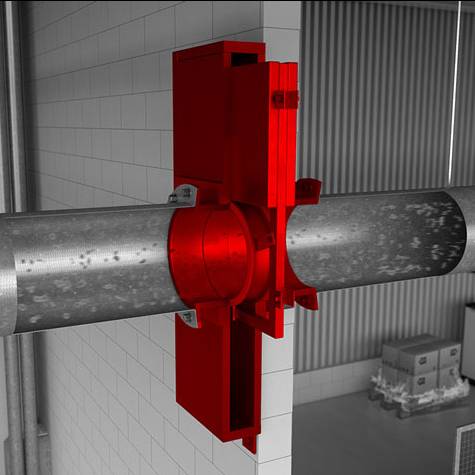

The Stöbich Ecotube conveyor fire protection system pipe shield is suitable for both positive and negative pressures as well as a variety of conveyed goods. In contrast to conventional protection dampers, the Ecotube pipe shield is not permanently exposed to the flow of conveyed material. Instead, the casing pipe segment is pushed out to make room for the shield damper. The advantage: This avoids friction or soiling of the closure element caused by the flow of the conveyed material. The closing process is triggered by the fire detection elements.


Features and benefits:

  • Specialist building-based conveyor protection system.
  • Achieves integrity and insulation.
  • Insulated, protecting the non-fire compartment and mitigating against ignition.
  • Does not obstruct conveyor flow.
  • Robust.
  • Class C durability.
  • Fire resistance: T 90.

General information

Color

Red

Grey

Other

Finish

Galvanized

Material

Steel

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_30_29_30 Fire curtain systemsPrimary

CAWS

U90/443 Dampers, fire/ smoke

L20/610 Roller shutters/ curtains

Specification data - Fire curtain systems

System performance

-

Manufacturer guidance

  • Conveyor application to BS EN 1366-7.
  • Fire performance requirements.


Fire curtain

Horizontal active fire curtain barriers.

Vertical active fire curtain barriers.

Manufacturer guidance

  • Pipe shields.
  • Positive and negative pressure.
  • Vertical or horizontal closure.

Head supports

Manufacturer's standard.

Guidance for specification option:

Insert requirements.

Side supports

Manufacturer's standard.

Guidance for specification option:

Insert requirements.

System accessories

-

Manufacturer guidance

Consult manufacturer and insert requirements or omit.

Fire resistance

T 90.

Guidance for specification option:

Z-6.6-1585 (T90).

Closing

Top to bottom.

Bottom to top.

Left to right.

Right to left.

Manufacturer guidance

Closing direction.

Durability Class

C0.

C2.

Manufacturer guidance

Closing cycles.

System

Separable pneumatic conveyor systems.

Pneumatic conveyor systems.

Manufacturer guidance

Conveyor system type.

Sustainability data

Country of material origin

Germany

Country of product manufacture

Germany

Material

Steel

Recyclability

Manufacturer's standard
