Stöbich System: ECClos®-Flex-I - Conveyor Fire Protection System
Verified by manufacturer 18 days ago

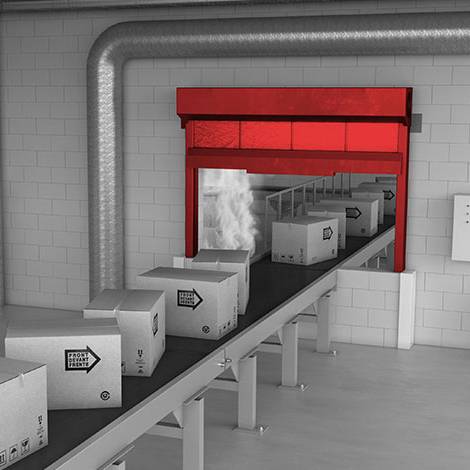

Conveyor system closure designed as a space-saving, roll-up fire curtain curtain.
Application
- Railway-bound conveyor system fire protection.
- Designed for continuous and separate conveyor systems such as belt, roller and overhead chain conveyors.
Description
One-piece, vertically closing fire protection closure in the course of rail-bound conveyor systems for wall openings with continuous and non-continuous conveyor technology in the closing area.
Features and benefits:
- Specialist building-based conveyor protection system.
- Small space requirement.
- Vertically closing.
- Achieves integrity and insulation.
- Durability class C - tested according to EN 12605:2000-08, classified a cording to EN13501-2 for scheduled open closures.
- Fire resistance: E90, EW60, EI2 90, tested according to BS EN 1366-7 and classified according to BS EN 13501-2.
- ETA applied for on the basis of EAD 350022-01-1107:2003-03.
General information
Color | Red Grey Other |
Finish | Galvanized Painted |
Material | Stainless steel Fabric |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/610 Roller shutters/ curtains |
Specification data - Fire curtain systems
System performance | Manufacturer guidance
|
Fire curtain | Vertical active fire curtain barriers.Guidance for specification option:
|
Head supports | Manufacturer's standard.Guidance for specification option: Insert requirements. |
Side supports | Manufacturer's standard.Guidance for specification option: Insert requirements. |
System accessories | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Fire resistance | EI2 90, tested according to BS EN 1366-7 and classified according to BS EN 13501-2. |
Closing | Top to bottom. |
Durability Class | C, tested according to EN 12605:2000-08, classified a cording to EN13501-2:2016 for scheduled open closures. |
Operation | Motor. Manufacturer guidanceRe-opening operation. |
Dimensions | Guidance for specification option: Clear wall opening - insert requirements.
Manufacturer guidanceConsult manufacturer's literature for details. |
System | Continuous roller conveyors. Non-continuous roller conveyors. Belt conveyors. Suspension chain conveyors. Manufacturer guidanceConveyor system type. |
Supporting structure | Guidance for specification option: Insert requirements.
|
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Stainless steel Fabric |
Recyclability | Manufacturer's standard |
