Stöbich System: ECClos®-S - Conveyor Fire Protection System

Verified by manufacturer 1 month ago

Vertical

Teckentrup UK Ltd Variant:

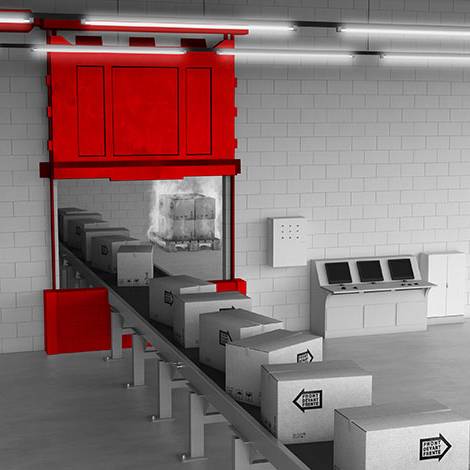

Conveyor system closure designed as a robust damper made of sheet metal panels.

Jump to:
+44 (0)1925 924050 Website

Application

Track-bound conveyor system fire protection.

Description

The Stöbich ECClos®-S sheet metal damper conveyor fire protection system is suitable for interrupted and continuous conveyor systems (belt, roller and suspension chain conveyors). For easy application, the ECClos®-S uses variable fixed panels made up of a robust sandwich construction with sheet metal casing on all sides – a design feature that ensures the ECClos®-S is adaptable to meet fire protection requirements.


Features and benefits:

  • Specialist building-based conveyor protection system.
  • Segmented construction enables easy transportation to site.
  • Variable fixed panels provide for easy implementation of customer-specific solutions.
  • Sandwich construction.
  • Vertically or horizontally closing.
  • Achieves integrity and insulation.
  • C5 durability - up to 200 000 operating cycles.
  • Fire resistance: EI1 120, tested according to BS EN 1366-7 and classified according to BS EN 13501-2.
  • European Technical Assessment - ETA (EU) and Certificate of Constancy of Performance (UK).

General information

Color

Red

Grey

Other

Finish

Galvanized

Material

Metal

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_30_29_30 Fire curtain systemsPrimary

CAWS

L20/610 Roller shutters/ curtains

Specification data - Fire curtain systems

System performance

-

Manufacturer guidance

  • Conveyor application to BS EN 1366-7.
  • Fire performance requirements.


Fire curtain

Vertical active fire curtain barriers.

Guidance for specification option:

  • Single-leaf, vertically closing.
  • Track-bound conveyor systems.
  • Sandwich construction.

Head supports

Manufacturer's standard.

Guidance for specification option:

Insert requirements.

Side supports

Manufacturer's standard.

Guidance for specification option:

Insert requirements.

System accessories

-

Manufacturer guidance

Consult manufacturer and insert requirements or omit.

Fire resistance

EI1 120, tested according to BS EN 1366-7 and classified according to BS EN 13501-2.

Closing

Top to bottom.

Durability Class

C5 (200 000 closing cycles).

Operation

Electromotive.

Guidance for specification option:

Standard.

Manual.

Guidance for specification option:

Optional.

Manufacturer guidance

Re-opening operation.

Dimensions

Guidance for specification option:

Insert requirements.

Approval range:

  • Largest width: 4500 mm.
  • Greatest height: 4500 mm.
  • 12.1 m² vertical closing direction.

Technical feasibility:

  • Largest width: 4500 mm.
  • Greatest height: 5100 mm.
  • Maximum 20.25 m².

System

Skid conveyor.

Sloping track.

Interrupted conveyor system.

Continuous belt conveyor system.

Continuous travelling carriages.

Show more

Manufacturer guidance

Conveyor system type.

Supporting structure

Guidance for specification option:

Insert requirements.

  • Concrete, masonry, and aerated concrete with a total density ≥200 mm.
  • Assembly walls with a total density ≥160 mm.
  • Panelled steel construction acc. to DIN 4102-4.

Sustainability data

Country of material origin

Germany

Country of product manufacture

Germany

Material

Metal

Recyclability

Manufacturer's standard
