Stöbich System: ECClos®-D - Conveyor Fire Protection System

Verified by manufacturer 1 month ago

Teckentrup UK Ltd

Conveyor system closure designed as an economic combination of sleeve and gate.

Jump to:
+44 (0)1925 924050 Website

Application

  • Track-bound conveyor system fire protection.
  • Suitable for continuous belt conveyors, roller conveyors and suspension chain conveyors.
  • Typically used for electrical overhead tracks, circular conveyors and power and free systems.

Description

The particularly space-saving fire protection gate is designed as a double-leaf, swing-door closure. The two integrated, semi-circular collars encase the aluminium or steel rails passing through (including power rails) and seal them off. Thermal separation of the rail is not necessary. The gates can be opened manually and by motor.


Features and benefits:

  • Specialist building-based conveyor protection system.
  • Achieves integrity and insulation.
  • Double-leaf, swing door conveyor fire protection.
  • Two integrated, semi-circular collars which encase the rails passing through, sealing them off.
  • The gates can be opened manually and by motor.
  • C3 durability (50 000 closing cycles).
  • Fire resistance: EI1 120, tested according to BS EN 1366-7 and classified according to BS EN 13501-2.

General information

Color

Red

Grey

Other

Finish

Galvanized

Material

Metal

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_30_29_30 Fire curtain systemsPrimary
Ss_25_30_20_25 Doorset systems

CAWS

L20/480 Doorsets

L20/55 Doorsets

L20/610 Roller shutters/ curtains

Specification data - Fire curtain systems

System performance

-

Manufacturer guidance

  • Conveyor application to BS EN 1366-7.
  • Fire performance requirements.


Fire curtain

Sleeve and gate combination conveyor fire protection.

Guidance for specification option:

  • Double-leaf, swing door.
  • Track-bound conveyor systems.
  • Two integrated, semi-circular collars.

Head supports

Manufacturer's standard.

Guidance for specification option:

Insert requirements.

Side supports

Manufacturer's standard.

Guidance for specification option:

Insert requirements.

System accessories

-

Manufacturer guidance

Consult manufacturer and insert requirements or omit.

Fire resistance

EI1 120, tested according to BS EN 1366-7 and classified according to BS EN 13501-2.

Closing

Slewing horizontally.

Manufacturer guidance

Closing direction.

Durability Class

C3 (50 000 closing cycles).

Operation

Manual.

Manufacturer guidance

Re-opening operation.

Dimensions

Guidance for specification option:

Insert requirements.

Technical feasibility:

  • Height: 1000 mm (minimum), 5000 mm (maximum).
  • Width: 600 mm (minimum), 3000 mm (maximum).

System

Electric monorail conveyor.

Circular conveyor.

Power and free free systems.

Continuous beltconveyor system.

Continuous roller conveyor system.

Show more

Manufacturer guidance

Conveyor system type.

Supporting structure

Guidance for specification option:

Insert requirements.

  • Masonry d ≥200 mm.
  • Concrete d ≥200 mm.
  • Aerated concrete d ≥200 mm.
  • Assembly walls d ≥160 mm.
  • Cladded steel construction according to DIN 4102-4.

Sustainability data

Country of material origin

Germany

Country of product manufacture

Germany

Material

Metal

Recyclability

Manufacturer's standard

Case studies

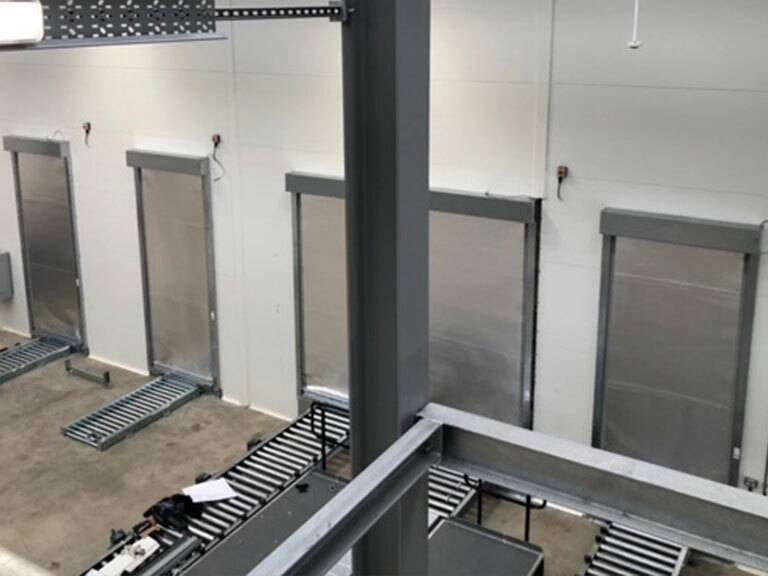

Stöbich Conveyor Fire Protection at Distribution Centre
