SSBF2462 - Recessed Safety Station
Verified by manufacturer 30 days ago
Recessed safety station, cleanroom construction.
Application
- For use in cleanrooms.
- Particularly suitable for use in semiconductor, electronics and pharmaceutical applications.
Description

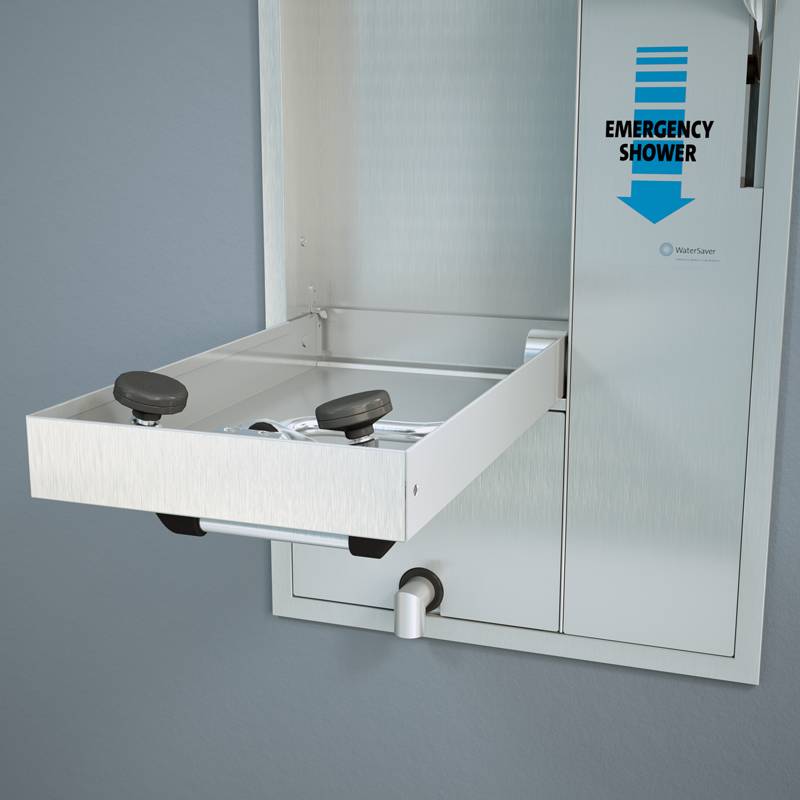

Recessed barrier-free eye/face wash and shower safety station with drain pan, daylight drain and recessed ceiling-mounted shower head. The unit is constructed in Type 304 stainless steel and meets cleanroom requirements.
The stainless steel cover provides an attractive appearance and protects the unit when not in use. When activated, the cover serves as a pan to collect wastewater and return it into the unit for drainage. Rather than connecting to the building drainage system, the unit has a 1” IPS stainless steel drain on the front of the unit for wastewater. The front drain provides for less costly installation while facilitating regular testing of the unit.
General information
Color | Other |
Finish | Brushed |
Material | Stainless steel |
Shape | Other |
Width | 533 mm |
Height | 838 mm |
Warranty description | One year |
Uniclass |
Specification data - Eye-wash fountains
Units | |
Form | Recessed wall-mounted eye/ face wash and recessed ceiling-mounted shower head. |
Stations | Single user. |
Water supply | Eye wash: FS-Plus™ spray heads; Shower: 11 3/4" diameter stainless steel flanged shower head. |
Wastes | 1” IPS stainless steel drain on the front of the unit. |
Operation | Panic bar. |
Materials | |
Body | 304 Stainless steel. |
Finish and colour | Brushed satin finish. |
Size | 533 x 98 x 838 mm.Manufacturer guidanceW x D x H |
Integral accessories | ANSI-compliant identification sign. |
Standards | To ANSI Z358.1-2014 and the Uniform Plumbing Code. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United States |
Country of product manufacture | United States |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

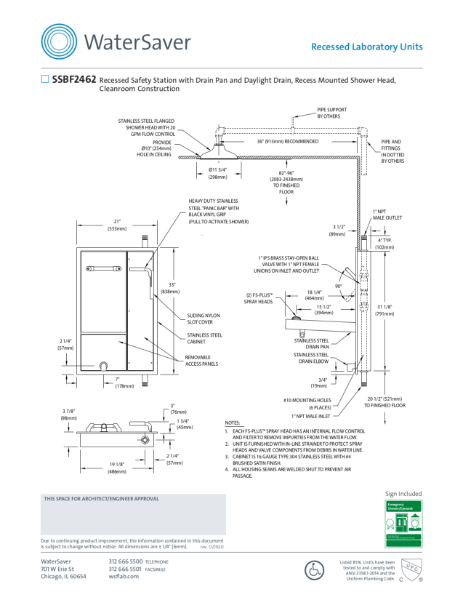

SSBF2462 Drawing
