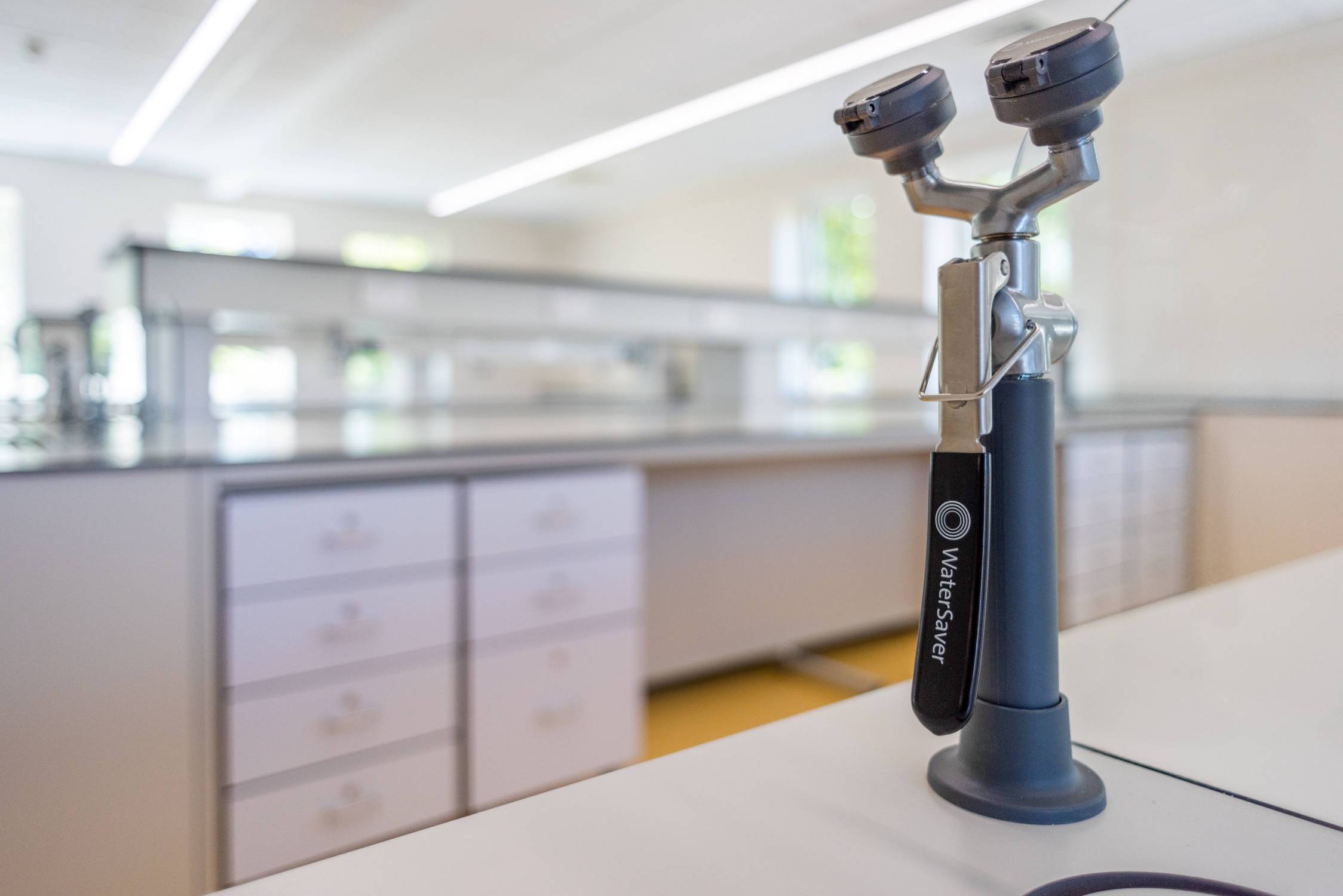

EW1022 - Eyewash/Drench Hose Unit
Verified by manufacturer 1 month ago
Eyewash/drench hose unit, bench mounted. https://wsflab.com/product/ew1022/
Application
Unit meets the provisions of ANSI Z358.1-2014 as both an eyewash and a drench hose. Unit may be left in the deck flange for use as a fixed eyewash, leaving user’s hands free. Alternatively, unit may be removed for use as a drench hose to rinse any part of user’s eyes, face or body.
Description
Dual purpose eyewash/drench hose for deck mounting. Also available in satin chrome plated finish with clear powder coating (SCC) and satin nickel plated finish with clear powder coating (SNC).
Two GS-Plus™ spray heads mounted side-by-side. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow. The unit comes with and ANSI-compliant identification sign.
General information
Color | White Grey Other |
Finish | Other Metallic |
Material | Brass Stainless steel Nylon |
Shape | Other |
Height | 257 mm |
Warranty description | One year |
Uniclass |
Specification data - Eye-wash fountains
Units | |
Form | Deck-mounted eye wash/ drench hose unit. |
Stations | Single user. |
Water supply | Lever-action spray taps. |
Wastes | None. |
Operation | Manual. |
Materials | |
Body | Brass, nylon and stainless steel. |
Finish and colour | White.Guidance for specification option: As standard. Grey.Satin chrome plated finish with clear powder coating (SCC).Satin nickel plated finish with clear powder coating (SNC). |
Size | 257 mm. |
Integral accessories | ANSI-compliant identification sign. |
Standards | To ANSI Z358.1. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United States |
Country of product manufacture | United States |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

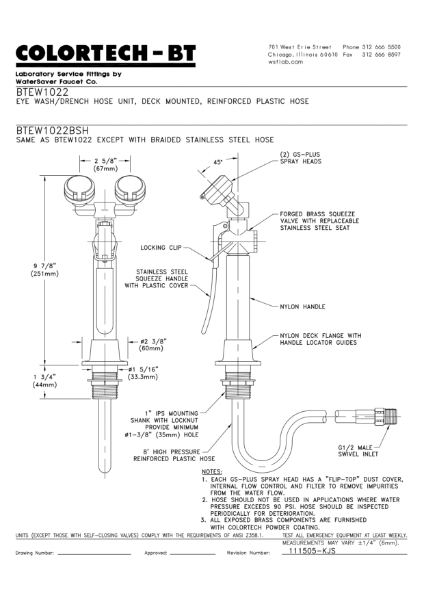

EW1022 Data Sheet
