EW1025 - Drench Hose
Verified by manufacturer 30 days ago
Drench hose unit, wall mounted.
Application
Suitable for rinsing any part of the user’s eye, face or body. Note: Under ANSI Z358.1-2014, drench hose units supplement, but do not replace, other types of emergency equipment.
Description
Drench hose unit for wall mounting. Also available in satin chrome plated finish with clear powder coating (SCC) and satin nickel plated finish with clear powder coating (SNC).
The single FS-Plus™ spray head has a“flip top” dust cover, internal flow control and filter to remove impurities from the water flow. The unit comes with an ANSI-compliant identification sign.
General information
Color | White Other |
Finish | Powder-coated Other |
Material | Brass Stainless steel PVC |
Shape | Other |
Warranty description | One year |
Uniclass | |
CAWS | N13/40 Shower units N13/375 Shower units |
Specification data - Eye-wash fountains
Units | |
Form | Wall mounted drench hose unit. |
Stations | Single user. |
Water supply | Single FS-Plus™ spray head. |
Wastes | None. |
Operation | Manual. |
Materials | |
Body | Brass and stainless steel. |
Finish and colour | White.Guidance for specification option: As standard. Satin chrome plated finish with clear powder coating (SCC).Satin nickel plated finish with clear powder coating (SNC). |
Integral accessories | ANSI-compliant identification sign. |
Standards | To ANSI Z358.1-2014 and the Uniform Plumbing Code. |
Accessories | None. FFFSH - 8 ft. flexible stainless steel hose. Guidance for specification option: In place of PVC hose. FFLC - Locking clip for valve handle. Guidance for specification option: Valve stays open until locking clip is released. FFVB - In-line vacuum breaker. Guidance for specification option: For installation between valve and spray head. AP3600 - Thermostatic mixing valve. Guidance for specification option: FF AP3600 Thermostatic mixing valve precisely blends hot and cold water to deliver warm (tepid) water as required by ANSI Z358.1-2014. Consult manufacturer for complete technical and product selection information. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United States |
Country of product manufacture | United States |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

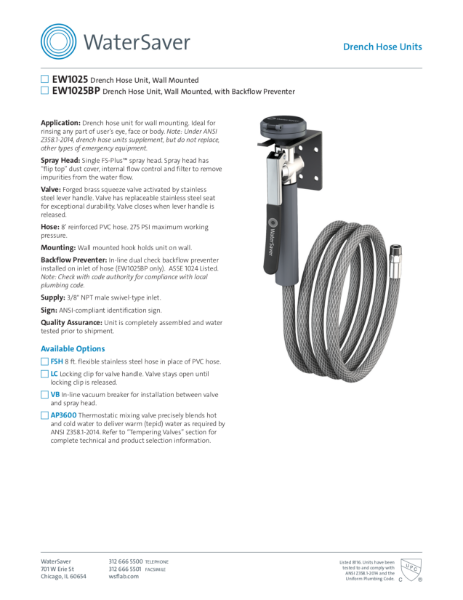

EW1025 Data Sheet
