SSBF2172 - Recessed Safety Station
Verified by manufacturer 1 month ago
Recessed safety station with drain pan and daylight drain, and wall-mounted exposed shower head.
Application
For laboratory applications.
Description

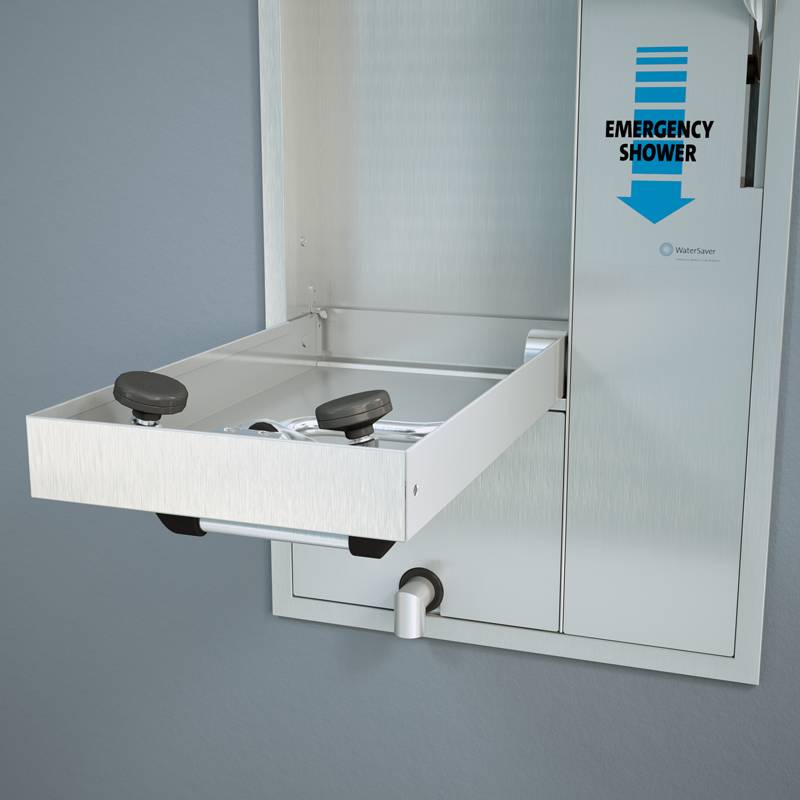

Recessed barrier-free eye/face wash and shower safety station with wall-mounted exposed shower head and drain pan.
The stainless steel cover provides an attractive appearance and protects the unit when not in use. When activated, the cover serves as a pan to collect wastewater and return it into the unit for drainage. Rather than connecting to the building drainage system, the unit has a 1” IPS stainless steel drain on the front of the unit for wastewater. The front drain provides for less costly installation while facilitating regular testing of the unit.
General information
Color | Other |
Finish | Brushed |
Material | Stainless steel |
Shape | Other |
Width | 533 mm |
Height | 838 mm |
Warranty description | One year |
Uniclass |
Specification data - Eye-wash fountains
Units | |
Form | Recessed wall-mounted eye/ face wash and wall mounted exposed shower head. |
Stations | Single user. |
Water supply | Eye wash: FS-Plus™ spray heads; Shower: 10" diameter stainless steel shower head. |
Wastes | 1” IPS stainless steel drain on the front of the unit. |
Operation | Panic bar. |
Materials | |
Body | 304 Stainless steel. |
Finish and colour | Brushed satin finish. |
Size | 533 x 98 x 838 mm.Manufacturer guidanceRecessed wall unit. |
Integral accessories | ANSI-compliant identification sign. |
Standards | To ANSI Z358.1-2014 and the Uniform Plumbing Code. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United States |
Country of product manufacture | United States |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

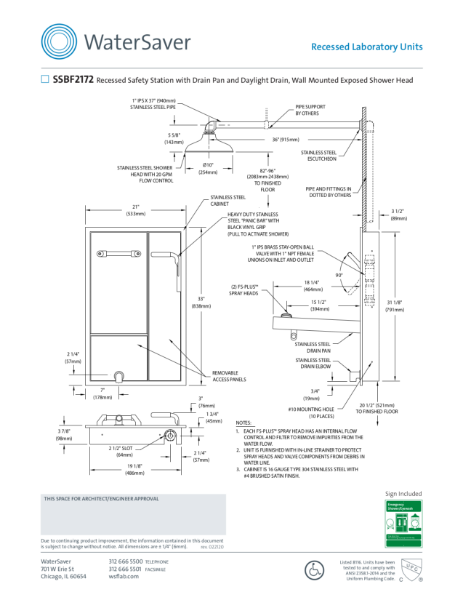

SSBF2172 Drawing
