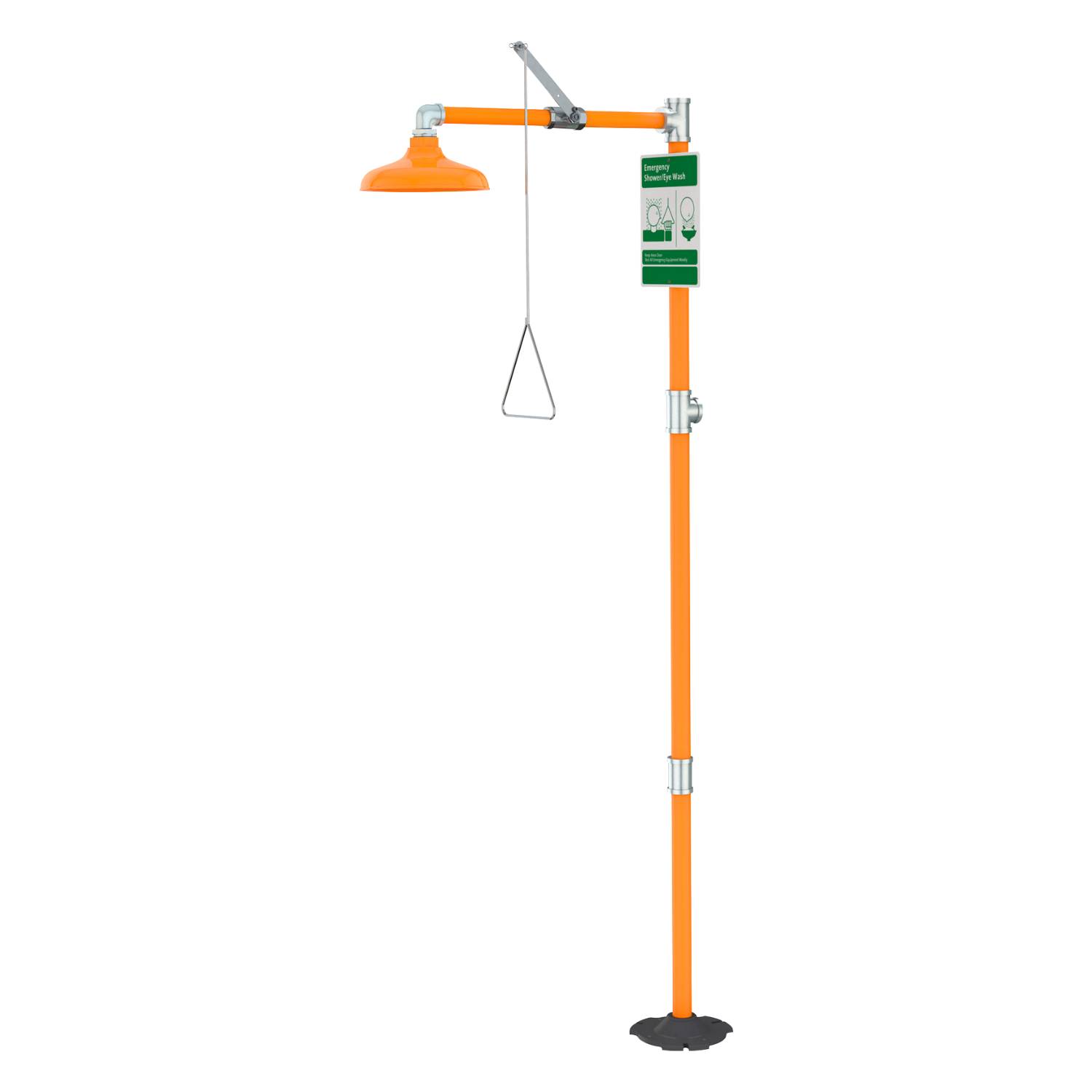

ES662 - Emergency Shower
Verified by manufacturer 1 month ago
Emergency shower, free standing. https://wsflab.com/product/es662/
Application
Free standing emergency shower for laboratory applications.
Description
Emergency shower, free standing, plastic shower head.
General information
Color | Orange Green Yellow |
Finish | Other Galvanized |
Material | Brass Polyethylene Steel |
Shape | Other |
Warranty description | One year |
Uniclass | |
CAWS | N13/41 Shower heads N13/40 Shower units N13/375 Shower units |
Specification data - Eye-wash fountains
Units | |
Form | Freestanding emergency shower. |
Stations | Single user. |
Water supply | 10″ diameter shower head. |
Wastes | None. |
Operation | Manual. |
Materials | |
Finish and colour | Orange polyethylene covers on galvanized pipe.Guidance for specification option: As standard. PCC - All-polished chrome plated brass construction. |
Integral accessories | ANSI-compliant identification sign. |
Standards | To ANSI Z358.1-2014 and the Uniform Plumbing Code. |
Shower head | Orange ABS plastic. Guidance for specification option: As standard. GRN - Safety green ABS plastic shower head. YEL - Safety yellow ABS plastic shower head. |
Accessories | None. TM6040 - Thermostatic mixing valve. HS - Auxiliary hand-held drench hose. Guidance for specification option: For rinsing eyes, face or body. The unit has single FS-Plus™ spray type outlet head, self-closing valve with squeeze handle, 8 ft. reinforced PVC hose and mounting bracket. AP275-200 - Electric flashing light and alarm horn unit. Guidance for specification option: For mounting on wall or vertical pipe. Light illuminates and horn sounds when shower is activated. Furnished complete with flow switch and mounting hardware. AP250-015 - Modesty curtain. Guidance for specification option: For horizontal shower installation. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United States |
Country of product manufacture | United States |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
ES662 Data Sheet
