SikaDur Combiflex System - Joint And Crack Sealing System
Verified by manufacturer 3 months ago
High performance joint and crack sealing system consisting of Sika Hypalon Strip and Sikadur 31 Rapid adhesive.
Application
Strictly follow installation procedures as defined in method statements, application manuals and working instructions which must always be adjusted to the actual site conditions.
Reference must be made to the Sika Method Statement: Sikadur-Combiflex® SG System. (available from https://gbr.sika.com/dam/dms/gb01/6/Method-Statement-Sikadur-Combiflex-SG-System.pdf).
Description
Sikadur-Combiflex® SG-10 M is a flexible waterproofing tape based on modified flexible Polyolefin (FPO) with advanced adhesion properties. It has red masking tape on one side for easier application over expansion joints. Thickness 1,0 mm. The product is part of the Sikadur Combiflex® SG System.
Features and benefits:
▪ Advanced adhesion, no activation on site required.
▪ Highly flexible - high crack and joint bridging ability.
▪ Good chemical resistance.
▪ Good resistance to ageing.
▪ Resistant to UV exposure.
▪ Resistant to root penetration.
▪ Performs well within a wide range of temperatures.
▪ Plasticizer-free.
▪ Hot air weldable.
▪ Can be used in contact with potable/drinking water.
Designed to be used in sealing all types of joints and cracks in many different structures and applications including:
▪ Tunnels and culverts.
▪ Hydroelectric power plants.
▪ Sewage treatment plants.
▪ Basements.
▪ Water retaining structure.
▪ Drinking water reservoirs.
Sealing of:
▪ Construction joints.
▪ Pipe penetrations.
▪ Cracks.
General information
Color | Grey |
Finish | Other |
Material | Thermoplastic polyolefin (TPO) |
Shape | Rectangle |
Length | 25000 mm |
Width | 300 mm 200 mm 150 mm 100 mm 1000 mm |
Height | 1 mm 2 mm |
Uniclass | |
CAWS | M20/650 Movement joints |
Product range |
Specification data - Concrete protective coating systems
Thickness | 1 mm. 2 mm. |
Components | SikaDur Combiflex Hypalon strip; SikaDur 31 Rapid. |
Sustainability data
Country of material origin | Switzerland |
Country of product manufacture | Switzerland |
Case studies

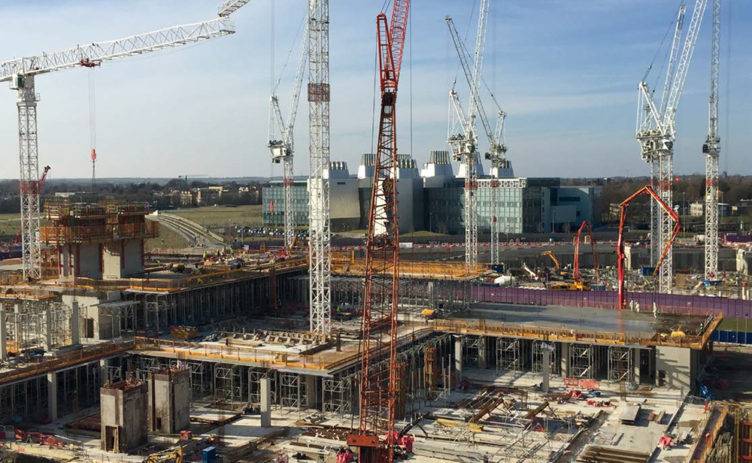

Papworth Hospital, Cambridge
Camden Car Park, London
Gateshead Leisure Centre Tyne and Wear, UK
London Bridge Rail Station
