Sika Anti-Carbonation Rigid System - Concrete Protection Coating
Verified by manufacturer 1 day ago

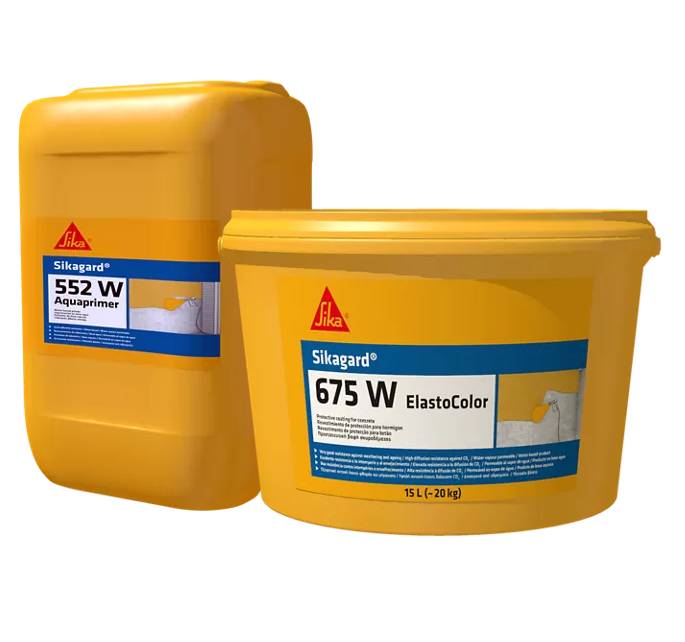

Anti-carbonation protective coating system for concrete consisting of Sikagard® 552 W Aquaprimer and Sikagard®-675 W GB ElastoColor.
Application
Concrete protection system. Can be applied over existing coatings or directly onto the concrete surfaces.
Description
Anti-carbonation protective coating system for concrete consisting of Sikagard® 552 W Aquaprimer and Sikagard®-675 W GB ElastoColor.
Sikagard®-552 W Aquaprimer:
A one-part waterborne adhesion promoting primer for water dispersed polymer paint coatings.
Features and benefits:
- Waterborne - safer to use than solvented products.
- Water vapour permeable.
- Good adhesion to concrete.
- Single component - ready to use.
- Easy to apply.
- Compatible with Sika® Anti-Carbonation Coatings.
Sikagard®-675 W GB ElastoColor:
A one-part, plastoelastic water-dispersed coating based on styrene acrylate dispersion for the protection and enhancement of fair-faced concrete. Sikagard®-675 W GB ElastoColor can be applied over existing coatings or directly onto the concrete surfaces.
Features and benefits:
- Water vapour permeable.
- Resistant to weathering and ageing.
- Application by roller brush or spray.
- High covering power (good opacity).
- Prevents water ingress.
- High diffusion resistance to carbon dioxide (CO₂).
Complies with the requirements of EN 1504-2 as a protective coating. CE marked.
General information
Color | Beige Black Blue Brown Cream Manufacturer guidanceThixotropic liquid available in almost every colour shade (minimum order requirements may apply). |
Material | Styrene Acrylic |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | C42/345 Protective coatings for concrete |
Specification data - Concrete protective coating systems
Classification data | |
Coatings | |
Protective treatment | Sikagard®-552 W Aquaprimer. Manufacturer guidanceSikagard®-552 W Aquaprimer is a one-part water-borne adhesion promoting primer for water dispersed polymer paint coatings. Part of a system that is in scope of the requirements of EN 1504-2 as a protective coating. |
Protective coat | Sikagard®-675 W GB ElastoColor. Guidance for specification option: Specify colour requirements separately below. Manufacturer guidanceSikagard®-675 W GB ElastoColor is a one-part, plastoelastic water dispersed coating based on styrene acrylate dispersion for the protection and enhancement of fair-faced concrete.
|
Colour | Guidance for specification option: Sikagard®-675 W GB ElastoColor is a thixotropic liquid available in almost every colour shade (minimum order requirements may apply).
Manufacturer guidanceSikagard®-552 W Aquaprimer (cured appearance) is a milky white liquid. |
Composition | Chemical base: Sikagard® 552 W Aquaprimer: acrylate dispersion. Sikagard®-675 W GB ElastoColor: styrene acrylate dispersion. |
Density | Sikagard® 552 W Aquaprimer: ~1.0 kg/L (at 20°C). Sikagard®-675 W GB ElastoColor: ~1.42 kg/L (at 20°C). |
Reaction to fire | Sikagard®-675 W GB ElastoColor, to BS EN 13501-1:2018: B-s1, d0. Guidance for specification option: Complies with the requirements of A2-s1,d0 reaction to fire in accordance with BS EN 13501-1:2018 (contact Sika Technical Services for more information on system build up requirements). |
Tensile Adhesion | Sikagard®-675 W GB ElastoColor, to EN 1542: ~2.7 MPa. |
Capillary absorption | Sikagard®-675 W GB ElastoColor, to EN 1062-3: w = 0.07 kg/(m²·√h). |
Water vapour resistance | Sikagard®-675 W GB ElastoColor, to EN ISO 7783-1 & EN ISO 7783-2: Dry film thickness: d = 270 µm; Equivalent air layer thickness: SD, H₂O = 0.59 m; Water vapour permeability: 35.6 g/m²/day; Requirements for breathability: SD, H₂O ≤5 m. |
Carbon dioxide permeability | Sikagard®-675 W GB ElastoColor, to EN ISO 7783-1 & EN 1062-6: Dry film thickness: d = 160 µm; Equivalent air layer thickness: SD, CO₂ = 2.35 m; Diffusion coefficient CO₂: µCO₂ = 1.47x 10E6; Requirements for protection: SD, CO₂ ≥50 m. |
Technical characteristics, other | Sikagard®-675 W GB ElastoColor: behaviour after artificial weathering: Pass after 2000 hours. |
Sustainability data
Material | Styrene Acrylic |
Literature
Sikagard®-552 W Aquaprimer - Product Data Sheet
Sikagard®-675 W GB ElastoColor - Product Data Sheet
