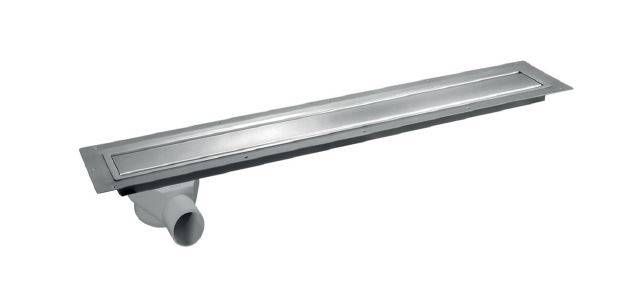

SharpDrain® Vinyl Linear - Wet Room Drain

Name: SharpDrain® Vinyl Linear - Wet Room Drain
Brand: WM | Wetroom Materials
SKU: n45717rEx5h5ARMTgnNtKm

Verified by manufacturer 2 months ago

SharpDrain® Vinyl Linear (SDVL.0500)

WM | Wetroom Materials

A linear wet room drainage system for vinyl flooring.

Jump to:

+44 (0)1332 840820 Website

Application

Suitable for wet rooms that require vinyl flooring.

Description

A linear wet room drainage system for vinyl flooring with a 360° rotating offset outlet for joists and easy connection. The drain is able to be rotated to have an outlet offset on the opposite site. The Vinyl Linear also has a clamping ring to secure the vinyl inside the drain.

Features and benefits:

Suitable for 1–5 mm thick vinyl sheet flooring.
The outlet is offset providing additional installation flexibility.
Stainless steel panel suitable for bare feet.
End outlet position for maximum flexibility.
50 mm horizontal and vertical outlets available.

General information

Color	Silver
Finish	Brushed Stainless steel
Material	Stainless steel Plastic
Shape	Rectangle
Length	580 mm Guidance for specification option: Visual length of 500 mm. 680 mm Guidance for specification option: Visual length of 600 mm. 780 mm Guidance for specification option: Visual length of 700 mm.
Width	100 mm
Height	113 mm Manufacturer guidance Drain depth.

Uniclass	Pr_65_52_24_28 Floor channelsPrimary
CAWS	R11/315 Floor drains R11/5 Floor drains

Specification data - Floor channels

Standard	To BS EN 1253.
Body	-
Material	Stainless steel.
Cover or grating	-
Cover or grating type	Solid covers. Guidance for specification option: Brushed stainless steel panel.
Material	Stainless steel.
Finish	Brushed.

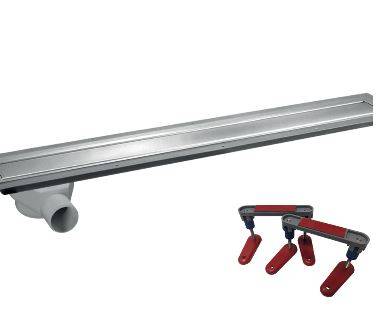

Integral accessories	Installation feet. Clamping ring.

Water trap	50 mm. Manufacturer guidance Water trap height.
Capacity	48 L/min.
Dimensions	580 x 100 x 113 mm. Guidance for specification option: L x W x D.
Outlet	Vertical 360° rotating outlet. Horizontal 360° rotating outlet.
